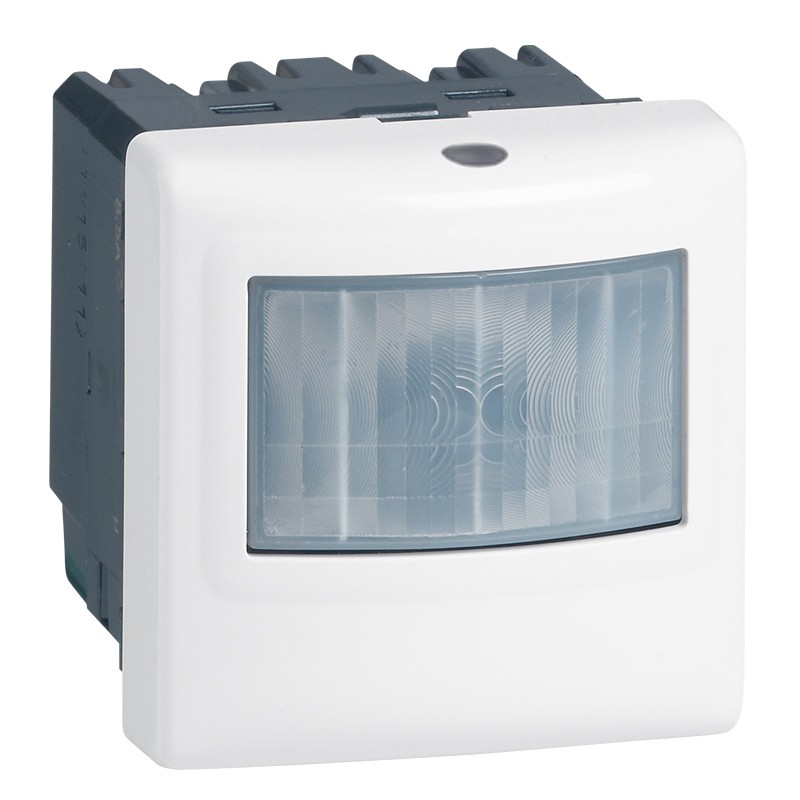

078457 LEGRAND MOSAIC-DETECTOR 2HIL MINUTE HAND
078457
LEGRAND
MOSAIC-DETECTOR 2HIL MINUTE HAND
Lighting management-traffic detection-flush mounting- IR - 180°- range 8 m
MOSAIC 2-wire ecodetector, neutral-free
Domestic switching devices > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)0.235
- Weight (g)60.00
- To be associated with a time-lag switch
- Allows automatic turning on/off in a hall, staircase...
- Replaces a push-button
- The time delay setting must be the same as that of the time-lag switch
- Cardboard
- Range 8 m
- White - without neutral
- To be associated with a modular time-lag switch
- Replaces a push-button
- Recommended fixing height: 1.2 m
- Standby consumption: 0.2 W
- Adjustable time-delay: 30 s. to 12 min
- The time delay must be the same for the sensors and the time lag switch
- All sensors are compatible with any lamp - Detection field: 120°
- Detection range: 8 m
- Recommended installation height: 1.20 m
- Integrated self-protection against overloads and short-circuits.
- 2 modules
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 45 mm |
| With remote control (EF000483) | No |
| Bridging switch (EF001099) | No |
| Staircase light controller (EF001098) | Yes |
| Connection type (EF000124) | Screwed terminal |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Min. switch-on time (EF006589) | 5 s |
| Compatible with Apple HomeKit (EF014925) | No |
| Detection angle horizontal (EF006582) | 120 ° |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Networkable (EF003904) | Yes |
| Response value sensitivity adjustable (EF003429) | Yes |
| RAL-number (similar) (EF003882) | 9003 |
| Animal zone (EF006311) | No |
| Model (EF000010) | Movement sensor |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 1.2 m |
| Max. duty cycle (EF006590) | 12 min |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Max. starting current (EF001732) | 0.5 A |
| Connection cable length (EF003636) | 0 mm |
| Depth (EF000049) | 51 mm |
| Temperature (EF001731) | -5 °C |
| Substation input (EF003876) | Yes |
| Colour (EF000007) | White |
| Width (EF000008) | 45 mm |
| With connection cable (EF005036) | No |
| With signal unit (EF003890) | Yes |
| Suitable for wireless transmission (EF001198) | No |
| Degree of protection (IP) (EF005474) | IP41 |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | Yes |
| Voltage type (EF000187) | AC |
| Surface finishing (EF006569) | Glossy |
| Control current (EF003894) | 0.5 mA |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Max. switching power (EF001503) | 0.5 W |
| Forced switch off (EF003920) | No |
| Surface protection (EF000139) | Untreated |
| Diameter reach on floor (EF003843) | 6 m |
| Frequency (EF000416) | 47 Hz |
| Built-in depth (EF000218) | 35 mm |
| Remote operation (EF003848) | Yes |
| Constant light control (EF003863) | Yes |
| With DALI interface (EF009569) | No |
| Nominal voltage (EF005127) | 240 V |
| Max. reach sideways (EF001323) | 6 m |
| Max. reach frontally (EF001322) | 8 m |
| IFTTT support available (EF011072) | No |
| Creep-under protection (EF000147) | Yes |
| Teach-function for response value luminosity (EF003898) | No |
| Response value luminosity (EF003814) | 5 lx |
| HVAC-control (EF003858) | No |
