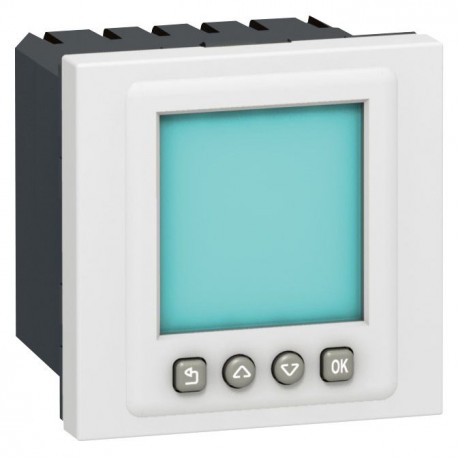

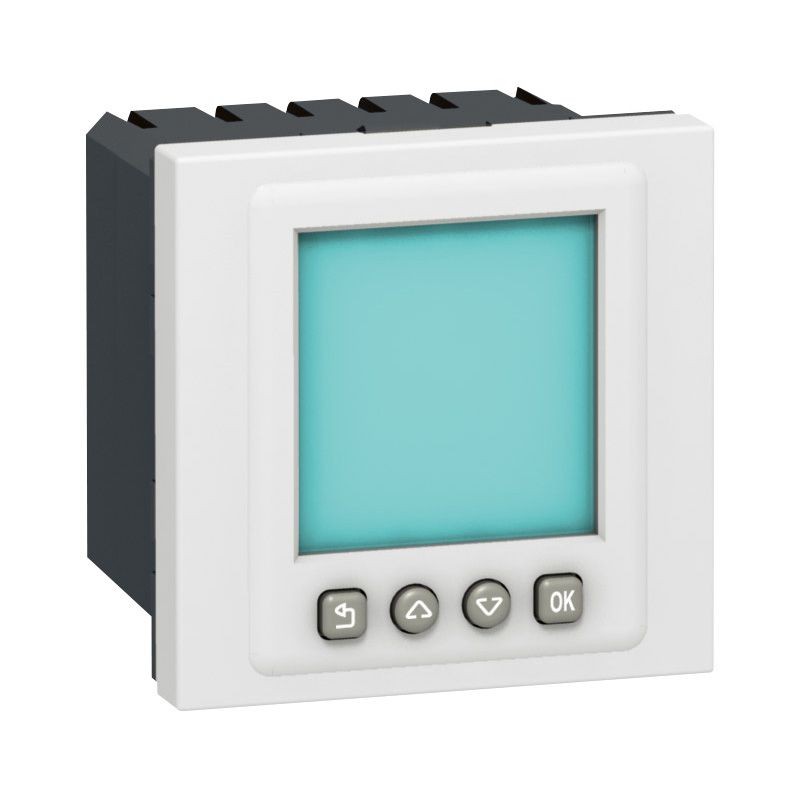

LEGRAND 078425 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

078425 LEGRAND MO-INTER SCHEDULE 16A 2M BL

Code: 078425

Manufacturer: LEGRAND

Description:

MO-INTER SCHEDULE 16A 2M BL
Programmable time switch Mosaic - 6 A 250 V~ - 2 modules - white
Programmable Mosaic Time Switch - 2mod - White

Categories:

  • Domestic switching devices > Time switch for domestic switching devices
  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 291,15 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.516
  • Weight (g)93.00
Product characteristics
Programmable time switch
  • 20 hours working reserve
  • Capacity: 8 weekly programmes
  • Temporary or permanent override
  • 1 output - 6 A - 250 V~ cos phi = 1
  • 1 changeover contact
  • Used to programme the control of a circuit with the following loads:
    • 1200 W 230 V~ incandescent and halogen
    • 1800 VA fluorescent Ø26 or 38 mm and ELV halogen with ferromagnetic or electronic transformer
    • 1800 W motors (ventilation only)
    • 3600 W resistive (heating only)
  • White
General characteristics
Mosaic™ Programme mechanisms - timer switch, programmable time switch

ETIM for 078425 Domestic wiring accessories and controls (EC001594)

Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueGlossy
Feature nameWith brightness sensor connection (EF003872)
Feature valueNo
Feature nameRandom generator (EF000223)
Feature valueNo
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameType of fastening (EF002442)
Feature valueMounting with screw
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameNominal voltage (EF000002)
Feature value230 V
Feature nameShortest switching interval (EF000222)
Feature value1 min
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameFrequency (EF000416)
Feature value47 Hz
Feature nameBuilt-in depth (EF000218)
Feature value32.7 mm
Feature nameMax. power (EF001309)
Feature value3600 W
Feature nameRAL-number (similar) (EF003882)
Feature value9003
Feature nameModel (EF000010)
Feature valueElectronic
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP41
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit with central cover plate
Feature nameDevice width (EF008808)
Feature value45 mm
Feature nameAstro program (EF000224)
Feature valueNo
Feature nameAutonomy (EF000202)
Feature value20 h
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameSubstation input (EF003876)
Feature valueNo
Feature nameRated current (EF000227)
Feature value16 A
Feature nameColour (EF000007)
Feature valueWhite
