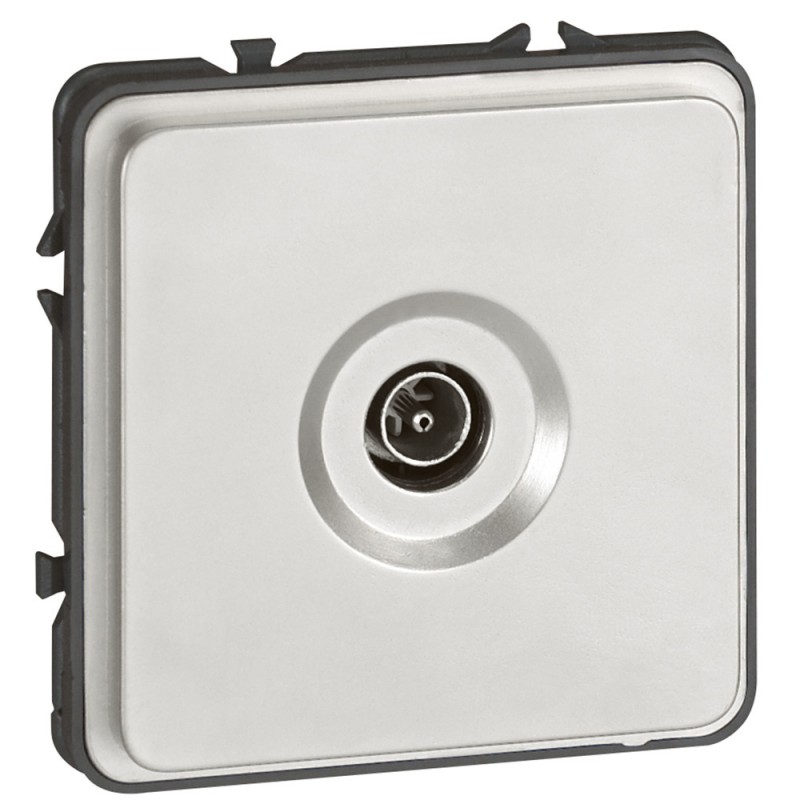

077882 LEGRAND SL-BASE TV ONLY 1.5 DB View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

077882 LEGRAND SL-BASE TV ONLY 1.5 DB

077882

LEGRAND

SL-BASE TV ONLY 1.5 DB

TV socket Soliroc - male - IP20 - 0-2400 MHz

Unique TV base IP20- IK10 - Soliroc - 0 - 2400 MHz

More details


Antenna and satellite technique > Antenna socket

SOLIROCO MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

Total: $88.39
Unit price: $88.39
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



  • Pack (number of units)1
  • Volume (dm3)0.68
  • Weight (g)159.00
Product characteristics
TV socket - IK 10 - IP 20
  • Male TV socket 0-2400 MHz
  • Class A (Lte protected)
General characteristics
Soliroc™ - sockets and mounting accessories IK 10
  • Suitable for public buildings, unsupervised passageways, car parks, communal areas in buildings
  • High resistance to IK 10 impacts and humidity
  • 4 fixing points by plugging the plate directly on the wall and 4 blanking plates to be force-mounted on the plate (can only be removed by drilling)
  • Mechanisms supplied complete with cover plates

ETIM for 077882 Antenna and satellite receivers (EC000439)
Feature Name Feature Value
Type of socket outlet (EF003497) TV
Degree of protection (IP) (EF005474) IP20
Tap loss at 860 MHz (EF000540) 1 dB
Material (EF002169) Metal
DAB+ (EF011633) No
Halogen free (EF000025) Yes
Mounting method (EF000003) Flush mounted
Type of fastening (EF002442) Mounting with claw and screw
Material quality (EF001257) Other
Tap loss at 2150 MHz (EF003499) 1.5 dB
Min. depth of built-in installation box (EF012278) 40 mm
Suitable for cable modem (EF001547) No
Suitable for remote power supply (EF001548) Yes
Number of outlets (EF000538) 1
Model (EF000010) End socket
Cover (EF000055) Central cover plate
Device depth (EF008810) 34.6 mm
Impact strength (EF004293) IK04
Anti-bacterial treatment (EF023790) No
Device width (EF008808) 70.4 mm
Device height (EF008809) 70.4 mm

Datasheet - PDF

Title: Size: Type:
077882 EN_077882.pdf 381 Kbytes     077882 EN_077882.pdf
