LEGRANDMOSAIC, ARTEOR AND CELIANE MECHANISMS077878 LEGRAND CDA-READER EXT AUTO KEYGUARD+PULS

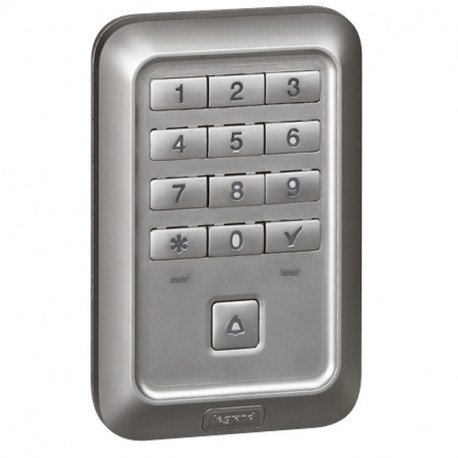

LEGRAND 077878 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

077878 LEGRAND CDA-READER EXT AUTO KEYGUARD+PULS

Code: 077878

Manufacturer: LEGRAND

Description:

CDA-READER EXT AUTO KEYGUARD+PULS
Reader standalone external keyboard with switch Soliroc - IP 55 - IK 10

Categories:

  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Readers external autonomous IP 55 - IK 10 - surface Mount - alloy Housing metal - Dimensions (Width x Height x depth): 94 x 145 x 22 mm - Shutter vandal-resistant - reading Area-to-read backlit Keypad-coded back-illuminated push button - 1 relay output for closing or suction cup - 1 input for push-button for unlocking interior - Equipped with a push-button NAen the front face - Up to 99 users - Dial for the blind in the keys "5" and "validate" - power Consumption: 75 mA at 12 V=

General characteristics

Access Control Mosaic - readers external autonomous - operation Mode: autonomous with direct cabling to the lock - Power supply: 12/24 V~/= - Equipped with 2 LEDs red/green and a buzzer - Possibility to configure the output in alternate mode (e.g., for the activation/deactivation of an alarm) - Timing adjustable from 1 to 255 s - permanent Memory built-in
