077868 LEGRAND SL-BEACON LIGHT
077868
LEGRAND
SL-BEACON LIGHT

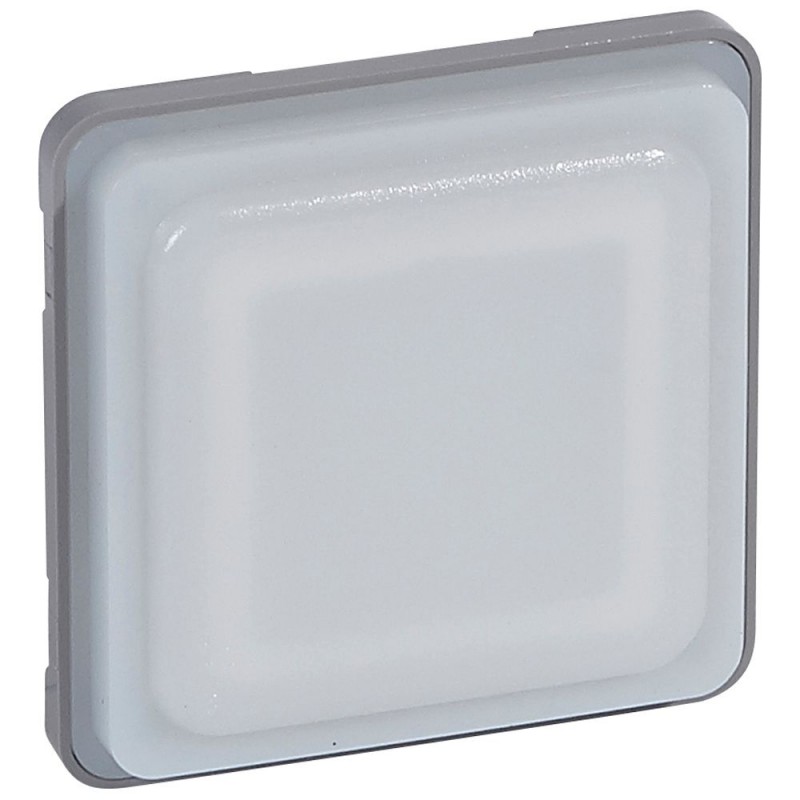

Illuminated sign Soliroc - with LED indicator 230 V~ - IP55
Soliroc light signaler - 230V~- IK10 - IP55 - White LEDs
Domestic switching devices > Information light signal for domestic switching devices
SOLIROCO MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.68
- Weight (g)86.00
- Mechanism incorporating white LEDs and a pivoting window which can take preprinted Label
- 2 choices of power rating (0.2 W or 1 W)
- Suitable for public buildings, unsupervised passageways, car parks, communal areas in buildings
- High resistance to IK 10 impacts and humidity
- 4 fixing points by plugging the plate directly on the wall and 4 blanking plates to be force-mounted on the plate (can only be removed by drilling)
- Mechanisms supplied with cover plates, to be equipped with support frames and plates
| Feature Name | Feature Value |
|---|---|
| Max. lamp power (EF000260) | 1 W |
| Material (EF002169) | Metal |
| Surface finishing (EF006569) | Matt |
| Material quality (EF001257) | Other |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| Nominal voltage (EF000002) | 230 V |
| Transparent (EF006243) | Yes |
| Colour light source (EF001402) | White |
| Surface protection (EF000139) | Metallic |
| With light source (EF005905) | Yes |
| With fixed symbol/imprint (EF007949) | Yes |
| With flashlight (EF006575) | No |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 49 mm |
| Device width (EF008808) | 70 mm |
| Assembly arrangement (EF000005) | Complete device |
| Application as button (EF003912) | No |
| Device height (EF008809) | 70 mm |
| Lamp holder (EF000048) | Other |
| Colour (EF000007) | Grey |
| With exchangeable symbol (EF006748) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 077868 EN_077867.pdf | 701 Kbytes |
 |
