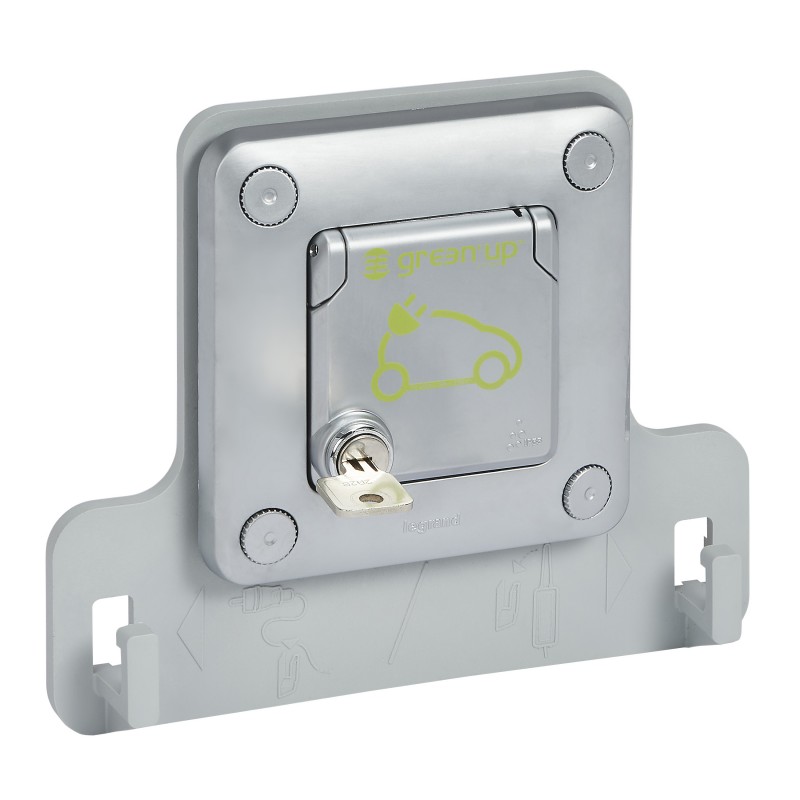

LEGRAND 077857 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

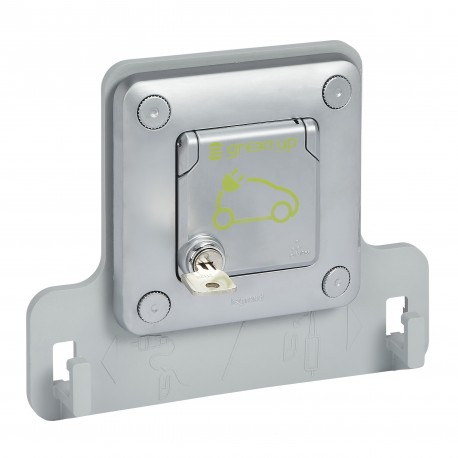

077857 LEGRAND GREEN'UP ACCESS SOCKET 3.2kVA

Code: 077857

Manufacturer: LEGRAND

Description:

GREEN'UP ACCESS SOCKET 3.2kVA
TAKING GREEN UP ACCES to 3.2 kVA
Flush mounting metal socket Green'up Access - locked - IP55-IK10 - German standard
2P+T recessed metal socket with cover and lock Green'up Access- IP55- IK10

Categories:

  • Industrial socket/plug applications > Charging connector E-Mobility
  • LEGRAND > GREEN'UPP SOCKETS AND BASES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 247,60 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)4.047
  • Weight (g)678.00
Product characteristics
Mode 1 and Mode 2 sockets - 16 A EV
  • Heavy-duty mechanisms with silvered contacts
  • Single-phase sockets - screw connection - 230 V
  • Supplied with base Cat.No 0 904 78 for hanging up the vehicle charging cable control box
  • For charging 1 vehicle
  • Conform to IEC 60-884-1
IP 55 - IK 10 flush-mounting - metal socket with locked flap cover
  • Suitable for installation in private houses, lock-up garages, parking lots, etc
  • Supplied complete with plate and support
  • Mounting in 1-gang Batibox flush-mounting box depth 50 mm
  • Can be surface mounted with box Cat.No 0 778 90
  • Dimensions (H x W x D): 110 x 110 x 13.5 mm
  • Supplied complete with a unique set of 2 keys in order to restrict access to the socket
  • German standard socket outlet
General characteristics
Green'up™ Access sockets 16 A - 230 V - 16 A EV - for electric vehicles
  • Used for safely charging rechargeable electric and hybrid vehicles which take Mode 2 cord (compatible with Mode 1)
  • Connected to the consumer panel via one 3 x 2.5 mm² dedicated line (1 line per socket) protected by 30 mA - 20 A C curve, type A or Hpi RCBO (or 30 mA type A or HPi RCCB + 20 A C curve circuit breaker)
  • Recommended installation height: 1.30 m from the floor
  • Suitable for residential and workplace use

ETIM for 077857 Industrial plugs and sockets (EC002898)

Feature nameCross section of the power contacts (EF009329)
Feature value2.5 mm²
Feature nameLED integrated (EF009328)
Feature valueNo
Feature nameHeight (EF000040)
Feature value110 mm
Feature nameModel (EF000010)
Feature valueCharging socket outlet
Feature nameDegree of protection (IP) (EF005474)
Feature valueOther
Feature nameNumber of communication contacts (EF009325)
Feature value3
Feature nameType of current (EF000143)
Feature valueAC single phase
Feature nameWith access interlocking (EF009324)
Feature valueNo
Feature nameLength of the fixed connection cable (EF009327)
Feature value50 m
Feature nameNominal voltage (EF000002)
Feature value230 V
Feature nameMax. nominal current (EF009326)
Feature value16 A
Feature nameWith interlocking actuator (EF009323)
Feature valueNo
Feature nameStandard (EF009322)
Feature valueOther
Feature nameDepth (EF000049)
Feature value47 mm
Feature nameWidth (EF000008)
Feature value110 mm
Feature nameConnection system (EF002649)
Feature valueScrew connection
