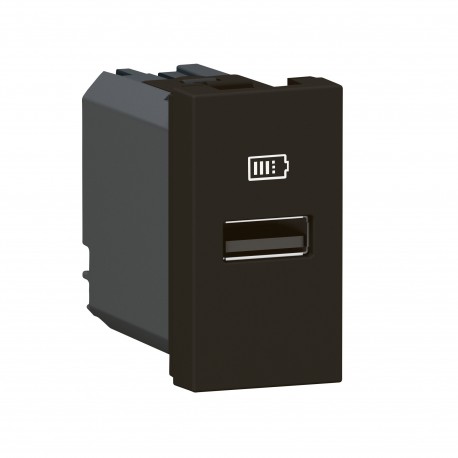

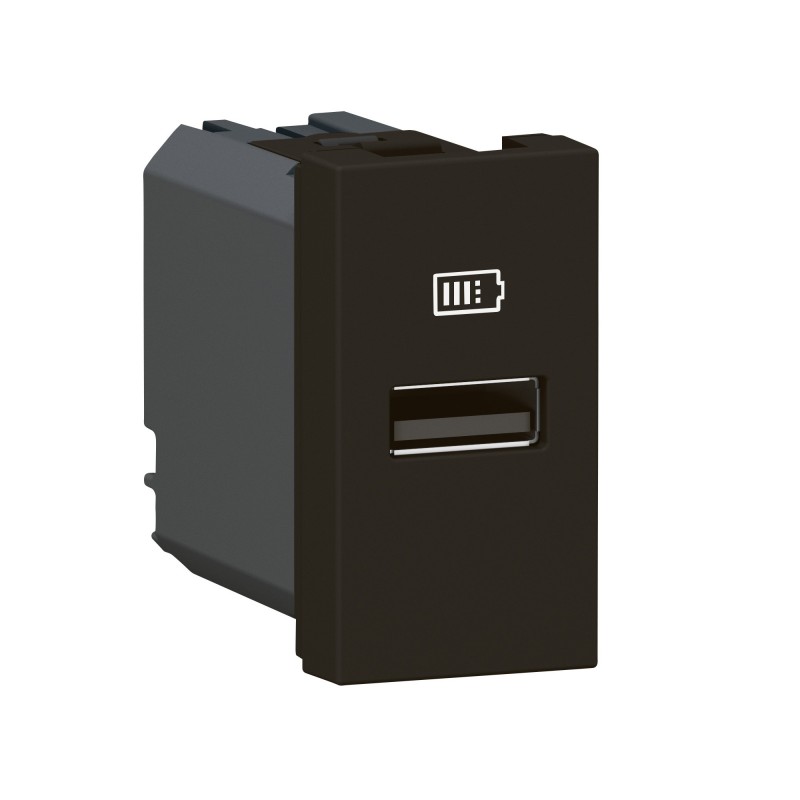

077652L LEGRAND CHARG 1M 1USB TO 15W NOIR
077652L
LEGRAND
CHARG 1M 1USB TO 15W NOIR
USB charger base 1 single port module type A - 3A - 15W - Matte black
Domestic switching devices > USB power supply
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲specifications
| Model | Other |
|---|---|
| Number of USB-A ports | 1 |
| Number of USB-C ports | 0 |
| Operating voltage | 100-240 V |
| frequency | 50-60 Hz |
| Maximum output current | 3000 mA |
| Output voltage | 5-5 V |
| Power consumption | 0.069 W |
| Connection Method | Screw-on terminal |
| Type of mounting | Recessed mounted (plaster) |
| Colour | Black |
| RAL number | 7015 |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device Depth | 41 mm |
| Min. depth of the recessed box | 40 mm |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Antibacterial treatment | No |
|---|---|
| Wireless | No |
| Installation Depth | 32.5 mm |
| Operating Temperature | 5-40 °C |
| Storage temperature | -20-70 °C |
| Type of voltage | AC |
| Nominal Voltage | 100-240 V |
| Power Delivery | No |
| Nominal current | 0.5-0.5 A |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 100 V |
| Device depth (EF008810) | 41 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of ports USB-C (EF017049) | 0 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Output voltage (EF003933) | 5 V |
| Power consumption (EF000346) | 0.069 W |
| Device width (EF008808) | 22.5 mm |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | Black |
| Number of ports USB-A (EF000997) | 1 |
| RAL-number (EF000116) | 7015 |
| Max. output current (EF001315) | 3000 mA |
| Frequency (EF000416) | 50 Hz |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 077652L EN_077652L.pdf | 104 Kbytes |
 |
