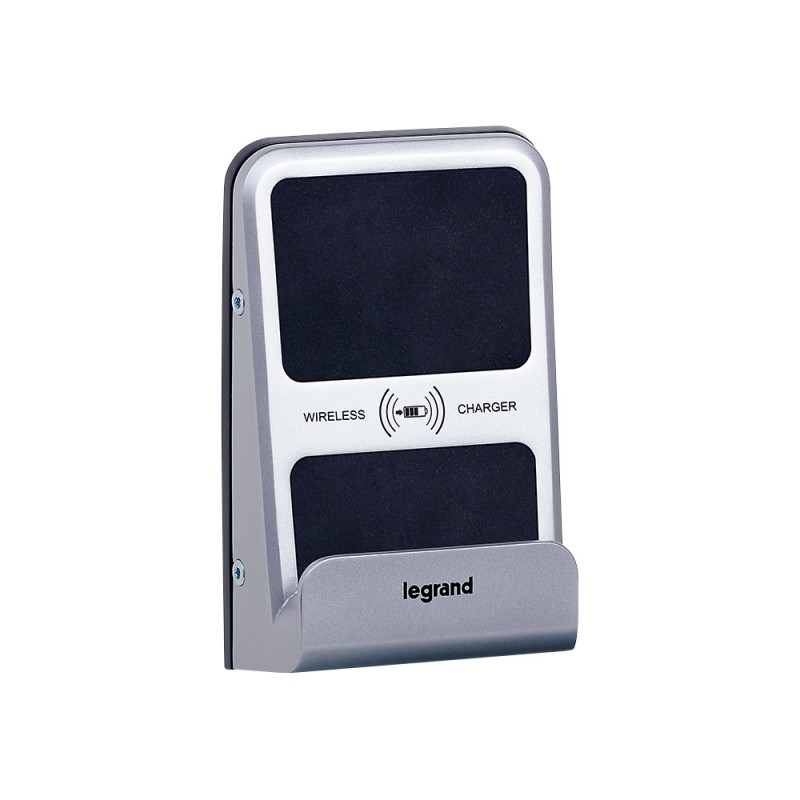

LEGRAND 077599 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

077599 LEGRAND MO-CHARGER INDUCC IP5 IK9

Code: 077599

Manufacturer: LEGRAND

Description:

MO-CHARGER INDUCC IP5 IK9
Flush-mounted wireless charger for public area 1 A - 5 V/5 W - IK08 IP66

Categories:

  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)1.516
  • Weight (g)330.00
Product characteristics
Flush-mounted wireless chargers - for public area
  • 1 A - 5 V/5 W wireless charger.
  • Specially designed for public buildings, passageways or transit areas, swimming pools, etc.
  • IK 08 - IP 66 - Class II SELV
  • Comes with 2 induction antennae for fast smartphone charging. Recognition area: 50 x 80 mm
  • Plate at an angle of 10° with non-slip coating to hold the terminal safely in place during charging
  • Screws onto flush-mounting box with 60 mm fixing centres, min. depth 40 mm, French, German or British standard.
  • Can also be fixed at 4 points
  • Can be mounted on rectangular boxes and outdoors 110/230 VA Phase + Neutral power supply
  • Mechanism supplied with cover plate, attached with 2 Torx screws at the side
  • Aluminium colour
  • Dimensions: 141 x 95 x 51 mm
  • 2 x 2.5 mm² terminals
General characteristics
Mosaic™ Programme mechanisms - wireless power chargers
  • Wireless power chargers for fast charging a smartphone with a QI receiver
  • Power supply standby mode consumption less than 0.07%
  • Conform to the QI WPC standard (Wireless Power Consortium): certified for professional QI 1.2.3 projects
  • Conform to EN 62479 standard (EMF emissions)
  • Conform to ICNIRP specifications (health protection)
  • Do not interfere with other wireless signals (Zigbee, TNT, GSM, 4G, etc)
