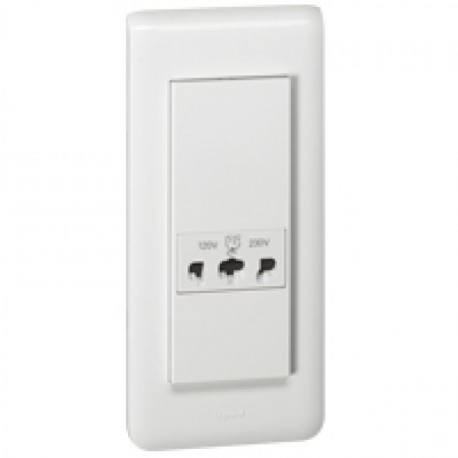

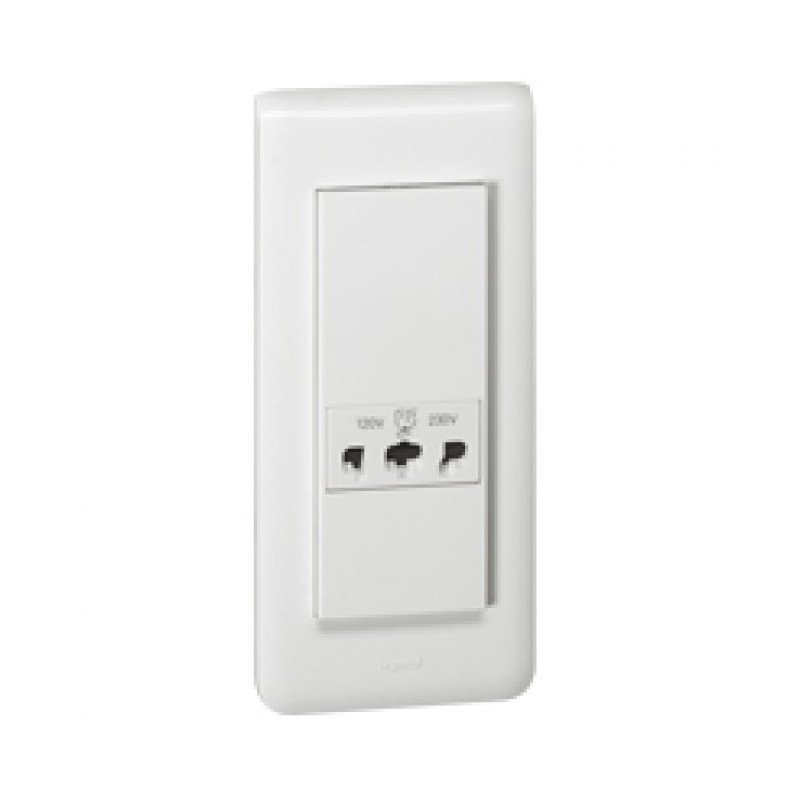

077586 LEGRAND MO-BASE Shaver IP24 5M BL

Code: 077586

Manufacturer: LEGRAND

Description:

MO-BASE Shaver IP24 5M BL
MO-BASED SHAVER IP24 5M BL
Shaver socket Mosaic - automatic terminals - 5 modules - white
Mosaic power base for razor - 5mod - White

Categories:

  • Domestic switching devices > Razor socket outlet
  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 99,59 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)1.279
  • Weight (g)628.00
Product characteristics
Shaver socket IP 24 - IK 04
  • Conform to EN 60742 and EN 61558-2
  • Power supply 230 V~ - 50/60 Hz and 1 output 120/220 V~
  • Connection via automatic terminals
  • Equipped with a circuit separation transformer to isolate the user from the mains supply
  • Protected against overloads and short circuits by built-in thermal relay limiting the available power to 20 VA
  • Insertion of the plug activates the power supply to the transformer
  • With integrated support
  • For flush mounting 2 gang boxes only, 40 mm deep
  • 5 modules
General characteristics
Mosaic™ Programme mechanisms - keyswitches, emergency stop pushbuttons, keycard switches, hotel bedroom indicators, shaver socket

ETIM for 077586 Domestic wiring accessories and controls (EC000186)

Feature nameWith built-in installation box (EF025086)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value9003
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueGlossy
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameNominal voltage high value (EF007995)
Feature value230 V
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameDevice depth (EF008810)
Feature value50.8 mm
Feature nameNominal voltage low value (EF007996)
Feature value120 V
Feature nameVoltage reversible (EF008055)
Feature valueNo
Feature nameNumber of modules (module system) (EF009573)
Feature value5
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameMin. depth of built-in installation box (EF012278)
Feature value50 mm
Feature nameDevice width (EF008808)
Feature value82 mm
Feature nameAssembly arrangement (EF000005)
Feature valueInsert for modular wiring accessories
Feature nameDevice height (EF008809)
Feature value175.4 mm
Feature nameColour (EF000007)
Feature valueWhite
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith hinged lid (EF000117)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
077586 EN_077586.pdf
431 Kbytes
