LEGRANDMOSAIC, ARTEOR AND CELIANE MECHANISMS077541 LEGRAND MO-REPLACEMENT LIGHTNING ROD

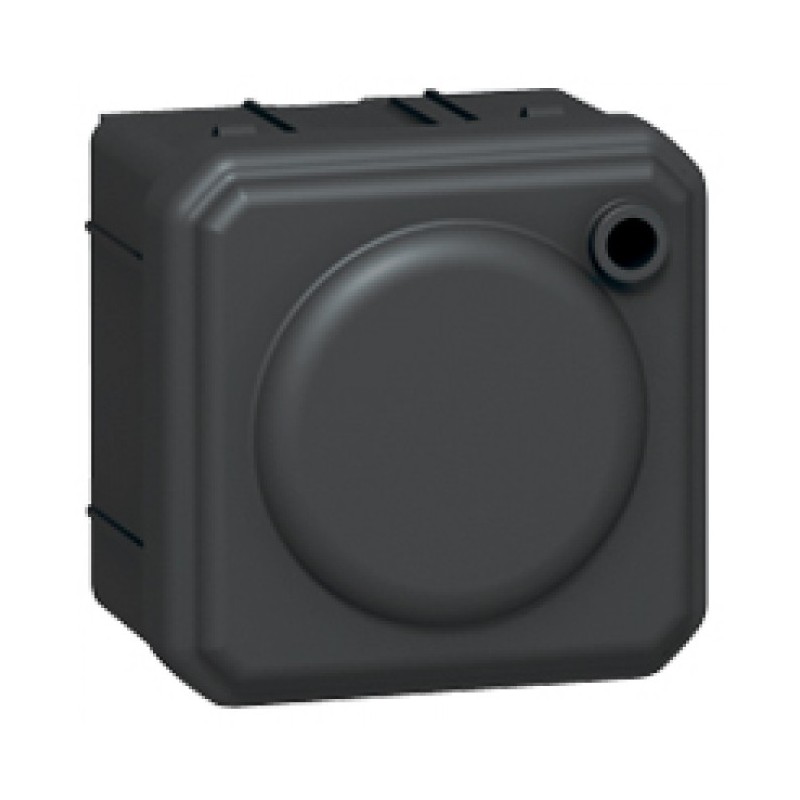

LEGRAND 077541 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

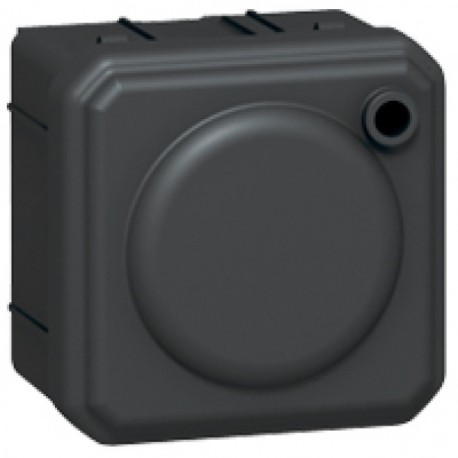

077541 LEGRAND MO-REPLACEMENT LIGHTNING ROD

Code: 077541

Manufacturer: LEGRAND

Description:

MO-REPLACEMENT LIGHTNING ROD
Replacement modules for surge protector Mosaic - 2 modules
Replacement module for surge protector - 2mod - White

Categories:

  • Earthing, lightning and surge protection > Surge protection device for terminal equipment
  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 74,61 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.237
  • Weight (g)79.00
Product characteristics
Replacement module for voltage surge protector
  • For Cat.No 0 775 40
General characteristics
Mosaic™ Programme mechanisms - voltage surge protector, replacement module, buzzers, bells, blanking plates, cable outlets and proximity MCBs

ETIM for 077541 Earthing, lightning and surge protection (EC000942)

Feature nameWith interference suppressor filter (EF006025)
Feature valueYes
Feature nameNominal voltage DC (EF004221)
Feature value230 V
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameCategory type 3 (EF004231)
Feature valueNo
Feature nameMax. continuous voltage AC (EF004198)
Feature value250 V
Feature nameNominal voltage AC (EF004220)
Feature value230 V
Feature nameNominal discharge surge current (8/20) (L-N) (EF004216)
Feature value1 kA
Feature nameMax. continuous voltage DC (EF004777)
Feature value250 V
Feature nameVoltage protection level L-PE/N-PE (EF004237)
Feature value1 kV
Feature nameTotal discharge current (8/20) (L+N-PE) (EF004215)
Feature value1.5 kA
Feature nameVoltage protection level L-N (EF004236)
Feature value1 kV
Feature nameMounting method (EF000003)
Feature valueSurface mounted/recessed mounted
Feature nameSignalling at the device (EF004241)
Feature valueOptic
Feature nameNumber of poles (EF001391)
Feature value6
Feature nameWith remote signalling contact (EF000422)
Feature valueNo
Feature nameNominal load current (EF004219)
Feature value16 A
Feature nameVoltage protection level (EF003525)
Feature value1 kV
Feature nameMax. conductor cross section solid (solid, stranded) (EF008827)
Feature value2.5 mm²
Feature nameMax. conductor cross section flexible (fine-strand) (EF008828)
Feature value2.5 mm²

DATASHEET - PDF

Title
Size
Type
077541 EN_077540.pdf
894 Kbytes
