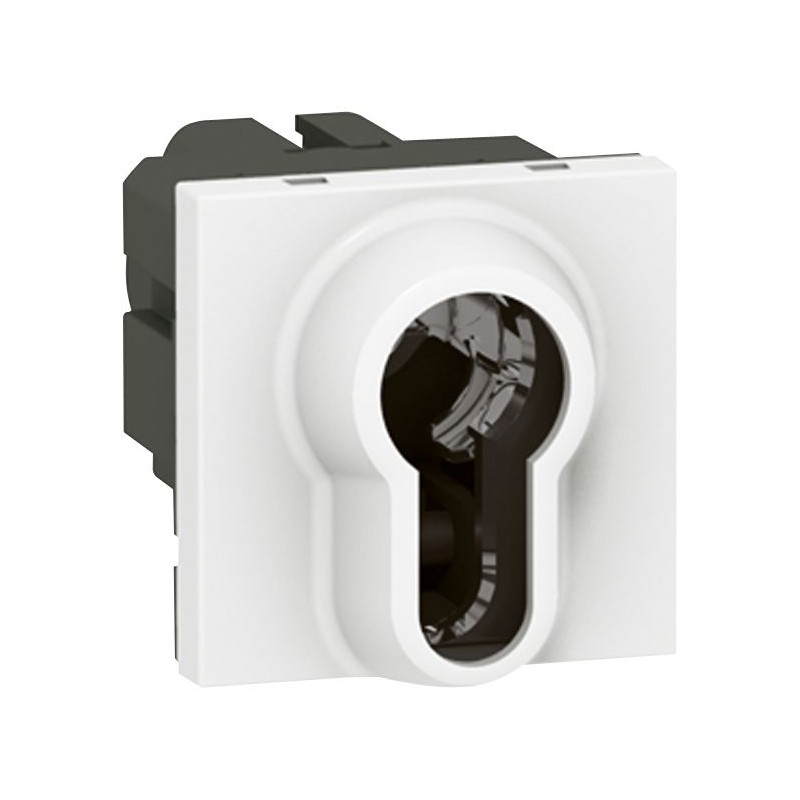

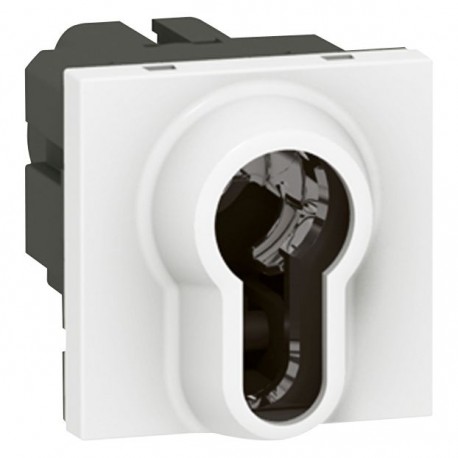

077074 LEGRAND MO-INTER-BEEP KEY 6A 2M BL
077074
LEGRAND
10
MO-INTER-BEEP KEY 6A 2M BL
Key switch Mosaic-2-position-to be equipped with european key barrel-2 modules-white
Mosaic key switch - 2 pos - 6A - 2mod - European cylinder - White
Domestic switching devices > Installation switch
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.547
- Weight (g)70.00
- 2 modules
- 1 contact - 2 poles 10 A - 250 V~
- Key extracted in central position without changing the status of the contacts ON/OFF
- Must be fitted with standard European key barrel or key barrel Cat.No 0 697 95
- White
| Feature Name | Feature Value |
|---|---|
| Label space/information surface (EF009419) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Glossy |
| Connection type (EF000124) | Screwed terminal |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Module frame/grid |
| Type of fastening (EF002442) | Engage (snap) |
| Wiring system (EF002960) | Two-way switch |
| Nominal voltage (EF000002) | 250 V |
| Push button switch (EF003895) | No |
| Number of modules (module system) (EF009573) | 2 |
| Compatible with Apple HomeKit (EF014925) | No |
| Colour of switch operator (EF015518) | White |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Heating switch (EF016279) | No |
| Min. depth of built-in installation box (EF012278) | 50 mm |
| Type of lighting (EF001401) | Other |
| Surface protection (EF000139) | Untreated |
| Switching current for fluorescent lamps (EF003888) | 10 AX |
| Built-in depth (EF000218) | 46 mm |
| With mounting plate (EF000118) | No |
| RAL-number (similar) (EF003882) | 9003 |
| Washing machine switch (EF006316) | No |
| Suitable for degree of protection (IP) (EF006755) | IP41 |
| Device depth (EF008810) | 66 mm |
| Lighting (EF000134) | No |
| Function lighting (EF009420) | Other |
| Feedback-signal contact (EF001181) | No |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| IFTTT support available (EF011072) | No |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Insert for modular wiring accessories |
| Device height (EF008809) | 45 mm |
| Rated current (EF000227) | 10 A |
| Colour (EF000007) | White |
| Method of operation (EF000006) | Key |
| Number of rockers (EF003816) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 077074 EN_077072.pdf | 154 Kbytes |
 |
