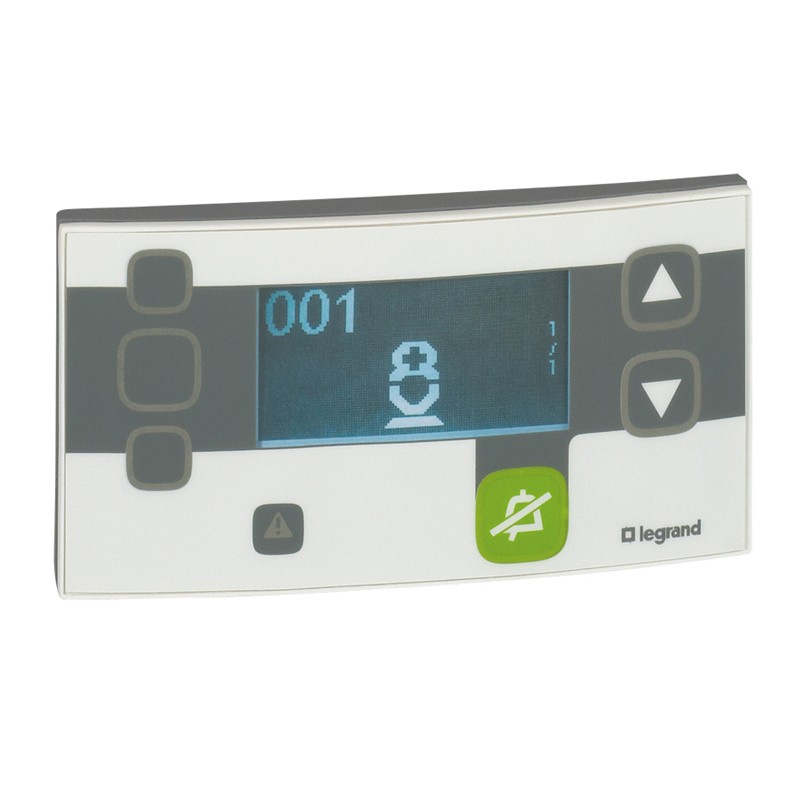

076611 LEGRAND DESK MAIN
076611
LEGRAND
DESK MAIN
Main control unit Mosaic - for nurses' station - 4 modules - Antimicrobial
Main desk - called BUS/SCS nursing
Installation bus systems > Logic component for bus system
SOLUTIONS FOR SANITARY FACILITIES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Often bought together
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)1.201
- Weight (g)269.00
- Call and presence display for all bedrooms and rooms in order of priority (max. 150)
- 4-module wiring mechanism supplied with support
- Installation in 50 mm deep flush-mounting box or on inclined plane Cat.No 0 766 12/13 with alphanumeric display and adjustable audible signal
- Scrolled display of the calls and nurse visits in progress
- Fitted with a malfunction indicator
- Used in conjunction with the interphone unit Cat.No 0 766 08 allows:
- communication with the bedrooms issuing calls and with a nurse present
- call acknowledgement at communication end
- calls to be made to all rooms with a nurse present
- Connects directly to the BUS/SCS cable Cat. Nos 0 492 32/33
- Antimicrobial: contains silver ions which prevent the development of surface bacteria
- For installation in the nurses' station
| Feature Name | Feature Value |
|---|---|
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| Logic object (EF005960) | Yes |
| Width in number of modular spacings (EF002950) | 4 |
| Bus system LON (EF003831) | No |
| Mounting method (EF000003) | Flush mounted |
| Bus system KNX (EF001499) | No |
| Bus system Powernet (EF001501) | No |
| Bus system radio frequency (EF001500) | No |
| Other bus systems (EF003811) | Other |
| With bus connection (EF001504) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 076611 EN_076611.pdf | 132 Kbytes |
 |
