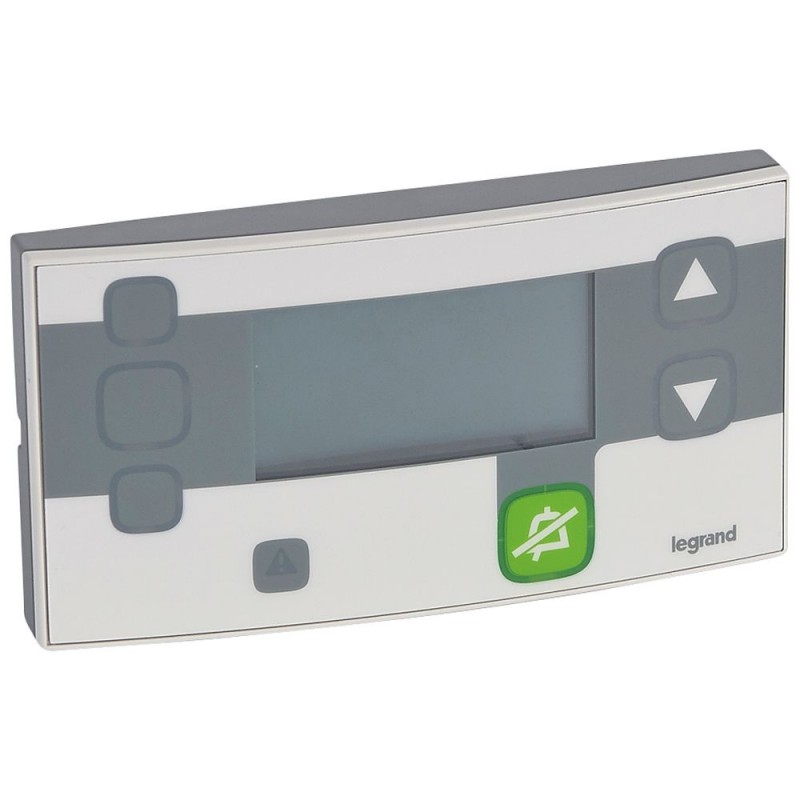

LEGRAND 076609 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

076609 LEGRAND SECONDARY PIT

Code: 076609

Manufacturer: LEGRAND

Description:

SECONDARY PIT
DESK SECONDARY
Secondary control unit Mosaic - for room or corridor - 4 modules - Antimicrobial
Secondary desk - called BUS/SCS nursing

Categories:

  • Installation bus systems > Logic component for bus system
  • LEGRAND > SOLUTIONS FOR SANITARY FACILITIES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 560,00 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)1.201
  • Weight (g)266.00
Product characteristics
Antimicrobial control units
  • Call and presence display for all bedrooms and rooms in order of priority (max. 150)
  • 4-module wiring mechanism supplied with support
  • Installation in 50 mm deep flush-mounting box or on inclined plane Cat.No 0 766 12/13 with alphanumeric display and adjustable audible signal
  • Scrolled display of the calls and nurse visits in progress
  • Fitted with a malfunction indicator
  • Used in conjunction with the interphone unit Cat.No 0 766 08 allows:
    • communication with the bedrooms issuing calls and with a nurse present
    • call acknowledgement at communication end
    • calls to be made to all rooms with a nurse present
  • Connects directly to the BUS/SCS cable Cat. Nos 0 492 32/33
  • Antimicrobial: contains silver ions which prevent the development of surface bacteria
Secondary control unit
  • Can be used in addition to the main control unit in another room (break room, dining room, etc.) or in a corridor
General characteristics
BUS/SCS nurse call unit - signalling units for nurses' station

ETIM for 076609 Installation bus systems (EC000676)

Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameLogic object (EF005960)
Feature valueYes
Feature nameWidth in number of modular spacings (EF002950)
Feature value4
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameWith bus connection (EF001504)
Feature valueYes
