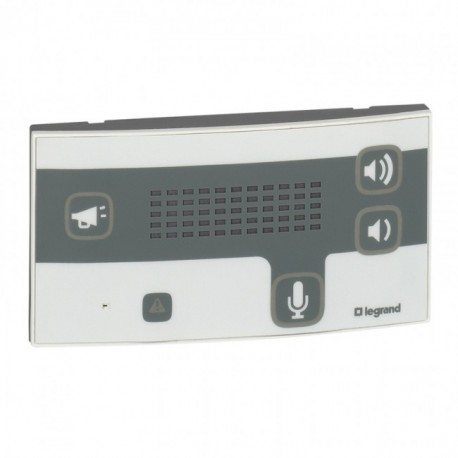

076608 LEGRAND PUBLIC ADDRESS DOOR BLOCK

Code: 076608

Manufacturer: LEGRAND

Description:

PUBLIC ADDRESS DOOR BLOCK
BLOCK OF GATE PA
Interphone door unit Mosaic - for room and nurses's station - Antimicrobial
Door block with public address system - called BUS/SCS nursing

Categories:

  • Installation bus systems > Logic component for bus system
  • LEGRAND > SOLUTIONS FOR SANITARY FACILITIES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 468,01 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)1.201
  • Weight (g)263.00
Product characteristics

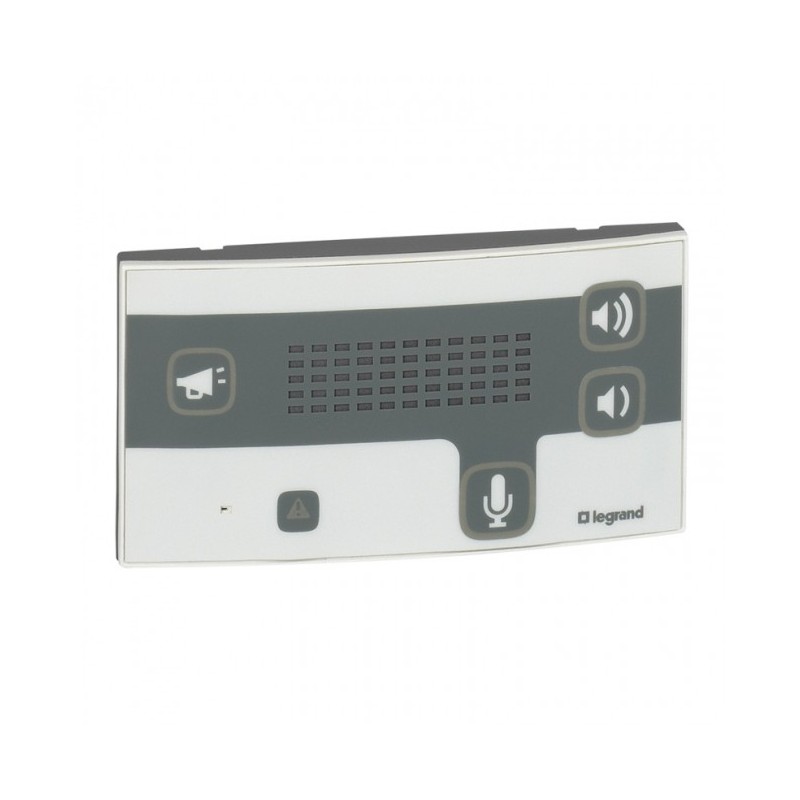

Antimicrobial interphone unit for room and nurses' station
  • Antimicrobial : contains silver ions which prevent the development of surface bacteria
Interphone door unit
  • For installation:
    • at the entrance to the room connected to the door unit with display Cat.No 0 766 07
    • in the nurses' room linked to the control unit Cat.No 0 766 11
  • Allows the user to:
    • communicate from one room to another room issuing a call or with a nurse present
    • broadcast a general call
  • Must be connected to a microphone Cat.No 0 782 00 for communication between the patient and the nursing staff
  • 4-module wiring mechanism supplied complete
  • Flush mounting for Mosaic in 50 mm deep box or surface mounting with frame Cat.No 0 766 14
General characteristics
BUS/SCS nurse call unit - signalling and acknowledgement units for rooms
  • BUS/SCS system with star wiring around the door unit:
    • call centralisation
    • acknowledgement
    • communication with nursing control unit and all elements of the system via BUS/SCS
    • signalling forwarded to all indicators (e.g.: corridor overhead light unit, door unit, hand-held remote control unit)

ETIM for 076608 Installation bus systems (EC000676)

Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameLogic object (EF005960)
Feature valueYes
Feature nameWidth in number of modular spacings (EF002950)
Feature value4
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameWith bus connection (EF001504)
Feature valueYes
