LEGRANDSOLUTIONS FOR SANITARY FACILITIES076607 LEGRAND SCREEN DOOR BLOCK

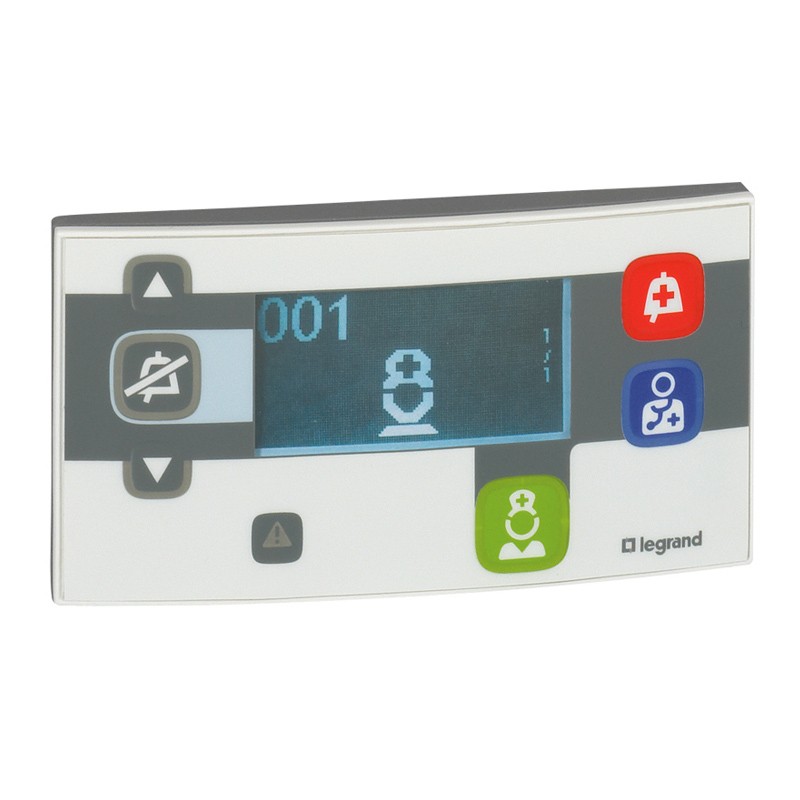

LEGRAND 076607 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

076607 LEGRAND SCREEN DOOR BLOCK

Code: 076607

Manufacturer: LEGRAND

Description:

SCREEN DOOR BLOCK
BLOCK-SCREEN DOOR
Door unit Mosaic-alphanumercial display-BUS/SCS-4 modules-Antimicrobial
Door block with display - called nursing BUS/SCS

Categories:

  • Installation bus systems > Logic component for bus system
  • LEGRAND > SOLUTIONS FOR SANITARY FACILITIES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 560,00 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)1.201
  • Weight (g)292.00
Product characteristics
Antimicrobial door units for rooms
  • For installation at the entrance to the room, can be seen from the bed
  • Connect directly to the BUS/SCS cable Cat.Nos 0 492 32/33
  • With indicator and pushbutton for calls, nurse presence and 2nd nurse presence
  • Comply with standards VDE 0834-1 and 0834-2
  • Fault display
  • 4-module wiring mechanisms supplied complete
  • Flush mounting in 50 mm deep box or surface mounting with frame Cat.No 0 766 14
  • Can be acknowledged by a pushbutton with indicator Cat.No. 0 782 04
  • Antimicrobial : contains silver ions which prevent the development of surface bacteria
Door unit with display
  • Door unit with alphanumerical display
  • Nurse presence and acknowledgement via pushbutton
  • Call display from another room
  • Used in conjunction with the interphone unit Cat.No 0 766 09 for communicating with rooms issuing calls and with a nurse present
  • User is able to acknowledge at the end of the communication
General characteristics
BUS/SCS nurse call unit - signalling and acknowledgement units for rooms
  • BUS/SCS system with star wiring around the door unit:
    • call centralisation
    • acknowledgement
    • communication with nursing control unit and all elements of the system via BUS/SCS
    • signalling forwarded to all indicators (e.g.: corridor overhead light unit, door unit, hand-held remote control unit)

ETIM for 076607 Installation bus systems (EC000676)

Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameLogic object (EF005960)
Feature valueYes
Feature nameWidth in number of modular spacings (EF002950)
Feature value4
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameWith bus connection (EF001504)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
076607 EN_076607.pdf
133 Kbytes
