LEGRANDMOSAIC, ARTEOR AND CELIANE MECHANISMS076601 LEGRAND MO-PULS EMERGE WITH 2M KEY

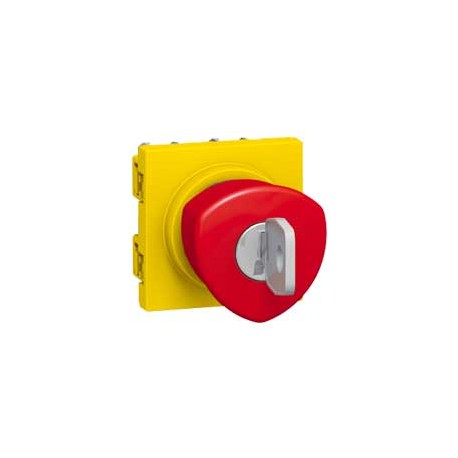

LEGRAND 076601 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

076601 LEGRAND MO-PULS EMERGE WITH 2M KEY

Code: 076601

Manufacturer: LEGRAND

Description:

MO-PULS EMERGE WITH 2M KEY
Mosaic emergency stop mushroom button. 2 modules. With key. Red and yellow color
Mosaic emergency stop mushroom button. 2mod. With key

Categories:

  • Low-voltage industrial components > Emergency stop complete
  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 121,91 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Mosaic emergency stop mushroom button. 2 modules. With key. Complete device. NA + NC, 3A, 250 V~. Control mechanism for opening and closing circuits, coupling and locking by pressing on the handle and unlocking by key. Unlocking with RONIS key no. 455. By screw. Weight 73.6 gr. Button red and base yellow color. IK04, IP41, Polycarbonate base. Storage temperature -10º C to +70º C. Operating temperature -5º C to +50º C.
Unlock TypeDecoupling by key
Number of Normally Closed Contacts1
Number of contacts normally opened1
Protection Class (IP)IP41
Type of mountingInstallation
With lightNo
Hole diameter22.5 mm
Auxiliary Circuit Connection TypeThreaded connection
Width45 mm
Height45 mm
Depth73.3 mm
Impact resistanceIK04
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Terminal capacity2.5-2.5 mm²

ETIM for 076601 Low-voltage industrial controls and switchgear (EC002034)

Feature nameConnection type auxiliary circuit (EF006820)
Feature valueScrew connection
Feature nameWith lighting (EF003829)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP41
Feature nameMounting method (EF000003)
Feature valueBuilt-in
Feature nameHole diameter (EF000079)
Feature value22.5 mm
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value1
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value1
Feature nameUnlocking method (EF001403)
Feature valueKey-release

DATASHEET - PDF

Title
Size
Type
076601 EN_076602.pdf
238 Kbytes
