075681 LEGRAND DLPE-CD DER ANG TO 80/105/130
075681
LEGRAND
10
DLPE-CD DER ANG TO 80/105/130

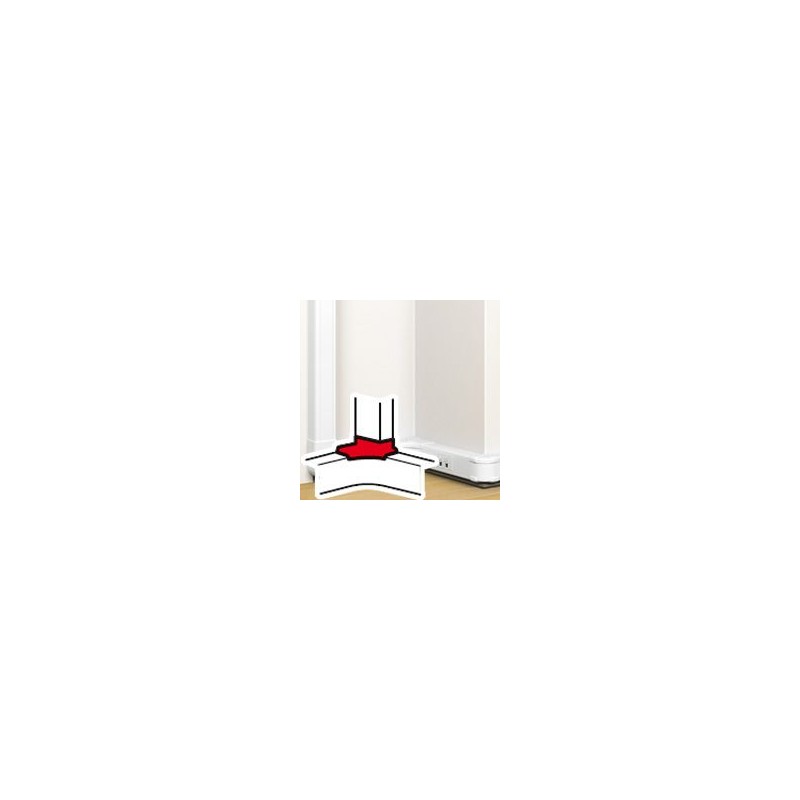

Angled junction - for flexible cover snap-on DLP trunking - white
Inside angle bypass for direct clipping DLP channel
Installation ducts for wall and ceiling > Tee for wall duct
EVOLUTIONARY DLP INSTALLATION CABLE TRUNKING
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)5
- Volume (dm3)18.00
- Weight (g)1 074.00
- Creates a junction in an internal angle with snap-on trunking 50 x 80 mm, 50 x 105 mm, 50 x 130 mm
- Must be used in conjunction with internal angle
| Feature Name | Feature Value |
|---|---|
| Cover width 1 (EF005147) | 45 mm |
| Width branch (EF001063) | 130 mm |
| With protective foil (EF005266) | No |
| Model (EF000010) | Other |
| Number of covers (EF004430) | 1 |
| Degree of protection (IP) (EF005474) | Other |
| Material (EF002169) | Plastic |
| Bottom perforation (EF004545) | No |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Other |
| Impact strength (EF004293) | Other |
| Anti-bacterial treatment (EF023790) | No |
| Depth (EF000049) | 50 mm |
| Mounting method cover (EF002922) | Spanned |
| Operating temperature (EF001742) | 15 °C |
| Colour (EF000007) | White |
| Surface protection (EF000139) | Untreated |
| Symmetric (EF005329) | No |
| RAL-number (EF000116) | 9003 |
| Width (EF000008) | 130 mm |
| With duct connector (EF004826) | Yes |
| With cable fixing clip (EF004815) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 075681 EN_075601.pdf | 972 Kbytes |
 |
