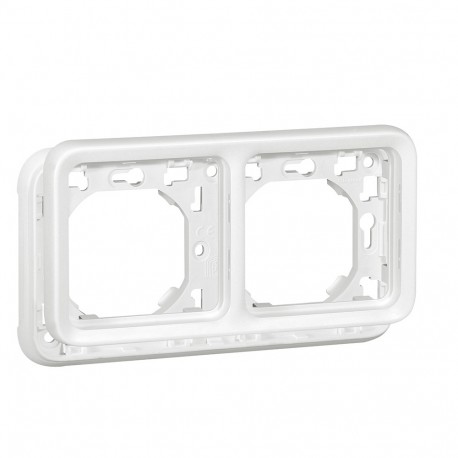

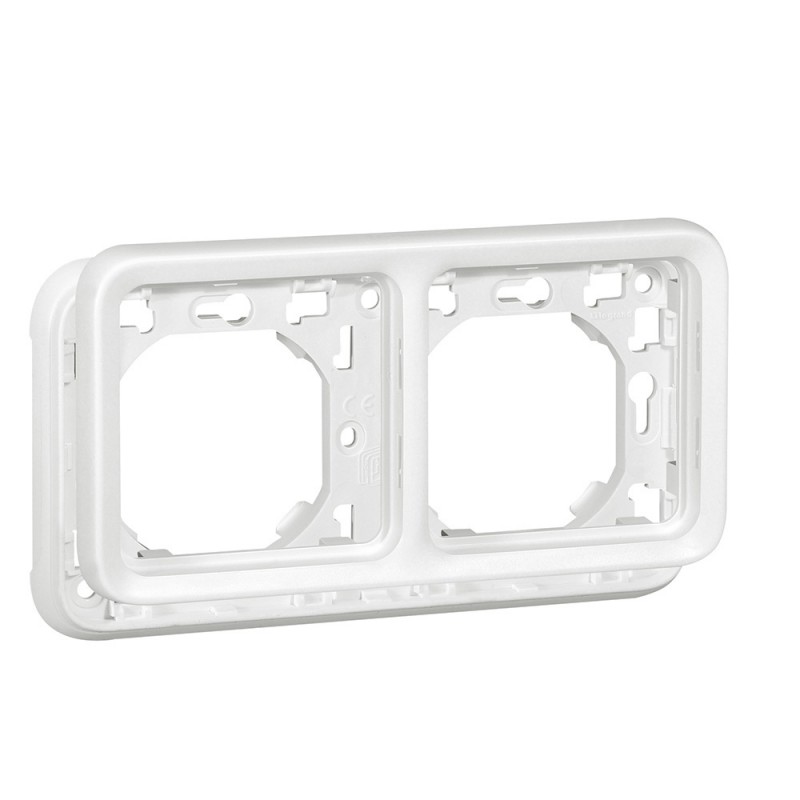

070794 LEGRAND PL-BAC EMP FRAMEWORK 2ELE HOR WHITE
070794
LEGRAND
PL-BAC EMP FRAMEWORK 2ELE HOR WHITE
Plate support Plexo IP55 antibacterial-2 gang-horiz mounting-modular-Artic white
Antibacterial modular Plexo frame - 2 horizontal mounting elements
Domestic switching devices > Cover frame for domestic switching devices
PLEXO-IDROBOX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.514
- Weight (g)74.00
- Used for flush-mounting version for German and French standard boxes only
- 71 mm fixing centres
- White antimicrobial – vertical mounting
- Contains a silver compound to prevent the growth of bacteria on the surface
- To be equipped with modular Plexo mechanisms
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 86 mm |
| Degree of protection (IP) (EF005474) | IP55 |
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Plastic |
| Suitable for built-in installation (EF006745) | No |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Screw mounting |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Mounting direction (EF003824) | Horizontal |
| With hinged lid (EF000117) | No |
| Surface protection (EF000139) | Untreated |
| Number of units vertical (EF008859) | 1 |
| Number of units (EF000074) | 2 |
| RAL-number (similar) (EF003882) | 903 |
| Number of units horizontal (EF008858) | 2 |
| Suitable for subfloor installation duct box (EF005864) | No |
| Built-in height (EF000332) | 0 mm |
| With mounting grid (EF012039) | Yes |
| Suitable for wall duct (EF006572) | No |
| Anti-bacterial treatment (EF023790) | Yes |
| Impact strength (EF004293) | IK07 |
| Depth (EF000049) | 46 mm |
| Colour (EF000007) | White |
| Flush-mounted installation (EF007517) | Yes |
| Width (EF000008) | 157 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 070794 EN_069651.pdf | 929 Kbytes |
 |
