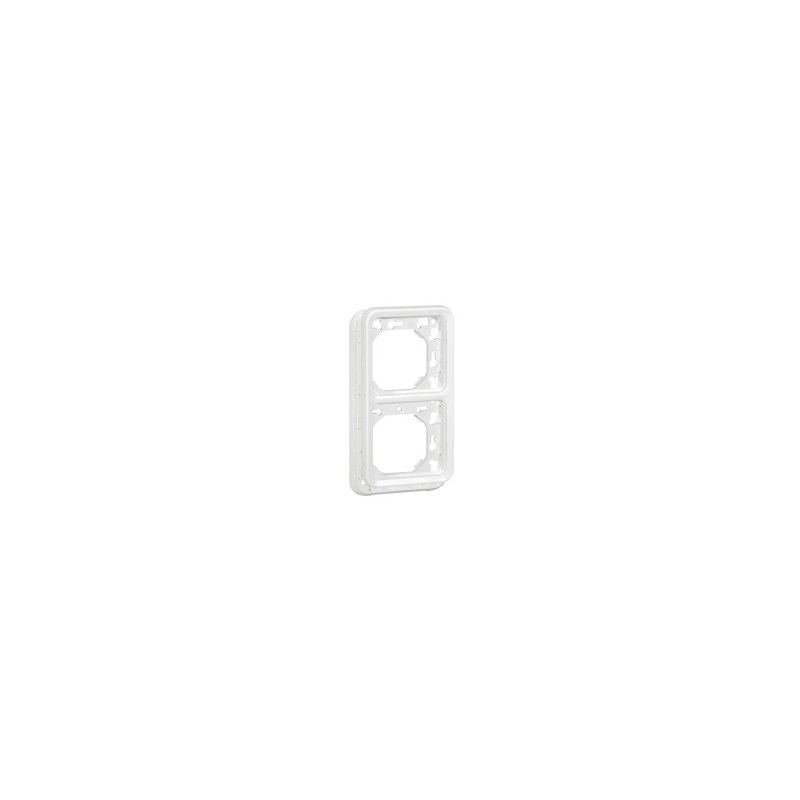

LEGRAND 070749 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

070749 LEGRAND PL-BAC EMP FRAMEWORK 2ELE SEE WHITE

Code: 070749

Manufacturer: LEGRAND

Description:

PL-BAC EMP FRAMEWORK 2ELE SEE WHITE
Plate support Plexo IP55 antibacterial-2 gang-vertical mounting-modular-Artic white
Antibacterial modular Plexus frame - 2 vertical mounting elements

Categories:

  • Domestic switching devices > Cover frame for domestic switching devices
  • LEGRAND > PLEXO-IDROBOX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Product features

Media boards - installation of mechanisms in wardrobes with boxes Batibox 2 vertical elements - Wheelbase 71 mm - White anti-bacterial

General characteristics

Plexus - Mechanisms watertight IP 55 - sectional - surface area - boxes and holders for plate - Boxes, and brackets with front-finish included - audible Click to ensure that the plate has been set correctly - Support mechanisms modular - Boxes that can be equipped with a connection terminal Nylbloc automatic, 2 drivers to a possible connection additional - IP 55 - IK 07

ETIM for 070749 Domestic wiring accessories and controls (EC000007)

Feature nameHeight (EF000040)
Feature value86 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSuitable for built-in installation (EF006745)
Feature valueNo
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameType of fastening (EF002442)
Feature valueScrew mounting
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameMounting direction (EF003824)
Feature valueVertical
Feature nameWith hinged lid (EF000117)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameNumber of units vertical (EF008859)
Feature value2
Feature nameNumber of units (EF000074)
Feature value2
Feature nameRAL-number (similar) (EF003882)
Feature value903
Feature nameNumber of units horizontal (EF008858)
Feature value1
Feature nameSuitable for subfloor installation duct box (EF005864)
Feature valueNo
Feature nameBuilt-in height (EF000332)
Feature value0 mm
Feature nameWith mounting grid (EF012039)
Feature valueYes
Feature nameSuitable for wall duct (EF006572)
Feature valueNo
Feature nameAnti-bacterial treatment (EF023790)
Feature valueYes
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameDepth (EF000049)
Feature value46 mm
Feature nameColour (EF000007)
Feature valueWhite
Feature nameFlush-mounted installation (EF007517)
Feature valueYes
Feature nameWidth (EF000008)
Feature value157 mm

DATASHEET - PDF

Title
Size
Type
070749 EN_069651.pdf
929 Kbytes
