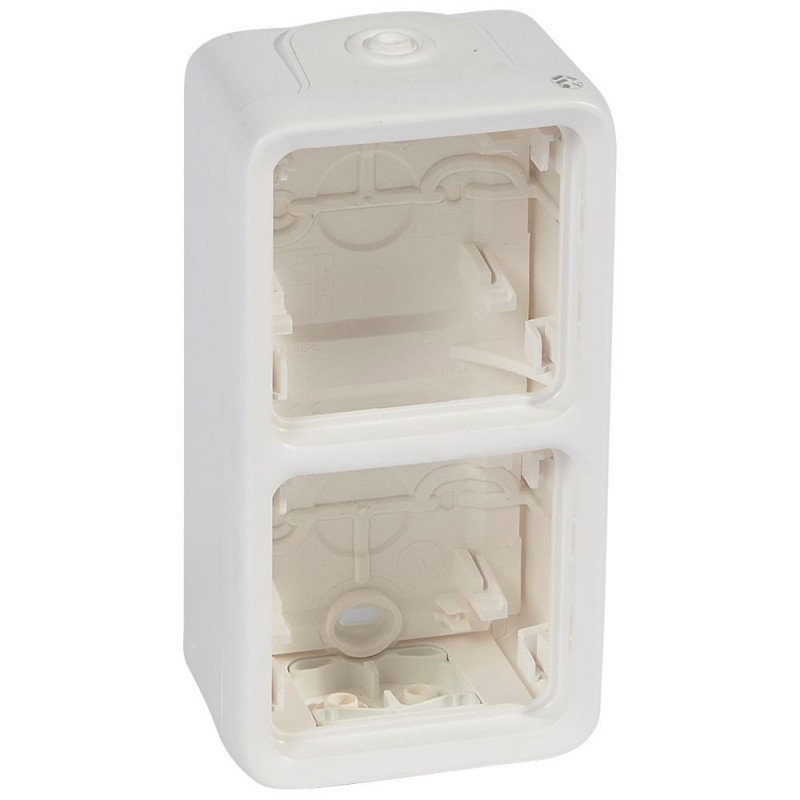

070743 LEGRAND PL-BAC SUP BOX 2ELE SEE WHITE
070743
LEGRAND
PL-BAC SUP BOX 2ELE SEE WHITE
Box with glands Plexo IP55 antibact-2 gang-vert mounting-modular-Artic white
Box with antibacterial modular Plexo cones - 2 vertical mounting elements
Domestic switching devices > Surface mounted housing for flush mounted switching device
PLEXO-IDROBOX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.669
- Weight (g)134.00
- Equipped with removable membrane glands
- Direct entry of cables (no need to be cut)
- No separation between compartments, in order to facilitate the cabling operations and to allow the installation of pre-wired socket outlets
- White antimicrobial – vertical mounting
- Contains a silver compound to prevent the growth of bacteria on the surface
- To be equipped with modular Plexo mechanisms
| Feature Name | Feature Value |
|---|---|
| With duct entry (EF007953) | Yes |
| Height (EF000040) | 155 mm |
| Shock resistant (EF000084) | Yes |
| Degree of protection (IP) (EF005474) | IP55 |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Suitable for modular domestic switching devices (EF009574) | No |
| Number of modules (module system) (EF009573) | 2 |
| Transparent (EF006243) | No |
| With cover frame (EF003807) | No |
| Mounting direction (EF003824) | Vertical |
| Surface protection (EF000139) | Untreated |
| Number of units (EF000074) | 2 |
| RAL-number (similar) (EF003882) | 9003 |
| Shape (EF000051) | Rectangular |
| With screw gland entry (EF006751) | No |
| Depth (EF000049) | 53 mm |
| Assembly arrangement (EF000005) | Surface mounted box |
| Colour (EF000007) | White |
| With cable entry (EF000325) | Yes |
| Width (EF000008) | 80 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 070743 EN_069651.pdf | 929 Kbytes |
 |
