069888L LEGRAND PL-MBL EMP OUTPUT BLAN CABLES
069888L
LEGRAND
PL-MBL EMP OUTPUT BLAN CABLES

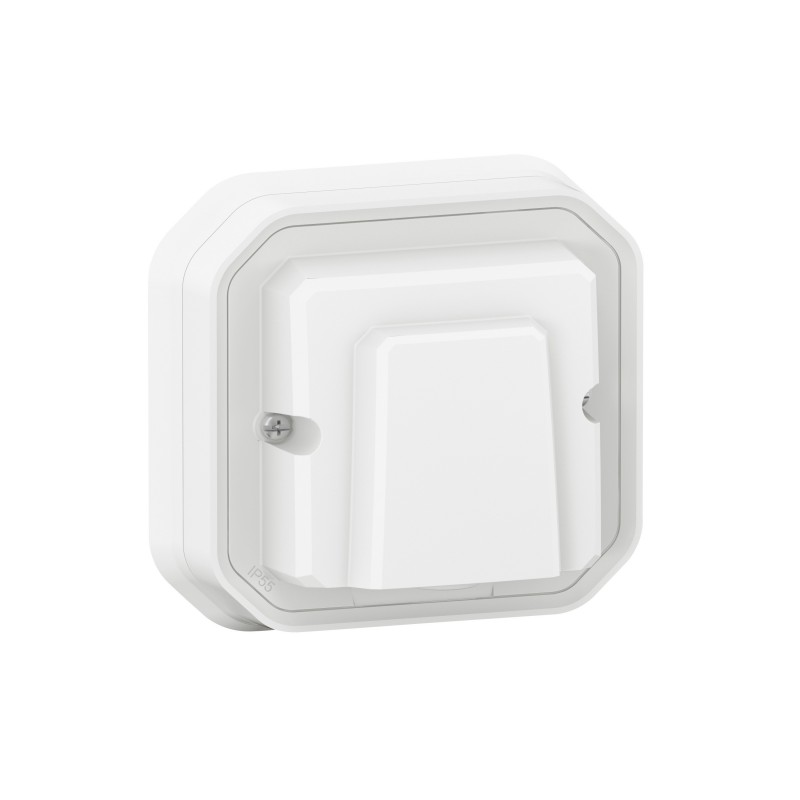

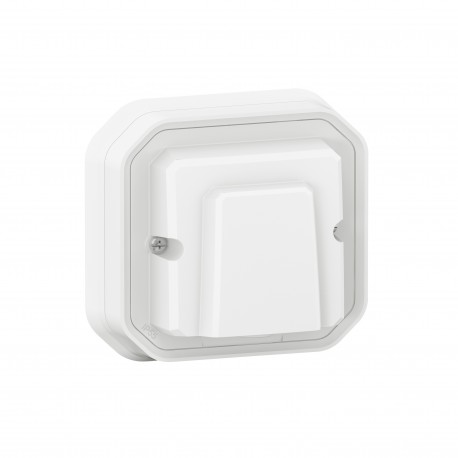

Plexo monobloc recessed cable outlet, white - with cable tie
Plexo monobloc recessed cable outlet - cable tie - White
Domestic switching devices > Appliance connection box
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Overview
The ideal solution for connecting devices supplied without a plug and that need protection against water and dust (IP55). For recessed installations.
Product features
- Plexo cable outlet - recessed monobloc - white
- IP55 - IK08 - 16A - 250V
- Monobloc - trim without fixing
- Possibility of mounting the grippers reference 0 697 96L
- With cable ties Ø5mm to 13mm (3 x 2.5mm²)
description
Plexo monobloc cable outlet - White - For recessed installation - IP 55 - IK 08 - 16A - 250V - Equipped with cable ties from Ø5 to 13mm (3 x 2.5mm²) - Gray - Possibility of mounting the claws ref. 0 697 96LHighlights
Advantages in installation
- 1 reference = 1 complete mechanism ready to install
specifications
| Type of mounting | Recessed mounted (plaster) |
|---|---|
| Clamp | none |
| Connection System | No terminal |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Colour | White |
| RAL number (similar) | 9003 |
| Suitable for protection grade (IP) | IP55 |
| Device width | 85 mm |
|---|---|
| Device height | 85 mm |
| Device Depth | 61 mm |
| Installation Depth | 24 mm |
| Impact resistance | IK08 |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Antibacterial treatment | No |
| Feature Name | Feature Value |
|---|---|
| RAL-number (similar) (EF003882) | 9003 |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Halogen free (EF000025) | Yes |
| Device depth (EF008810) | 61 mm |
| Device width (EF008808) | 85 mm |
| Device height (EF008809) | 85 mm |
| Clamps (EF000887) | None |
| Colour (EF000007) | White |
| Connection system (EF002649) | Without clamp |
