LEGRAND069878L LEGRAND PL-MBL EMP OUTLET ANT CABLES

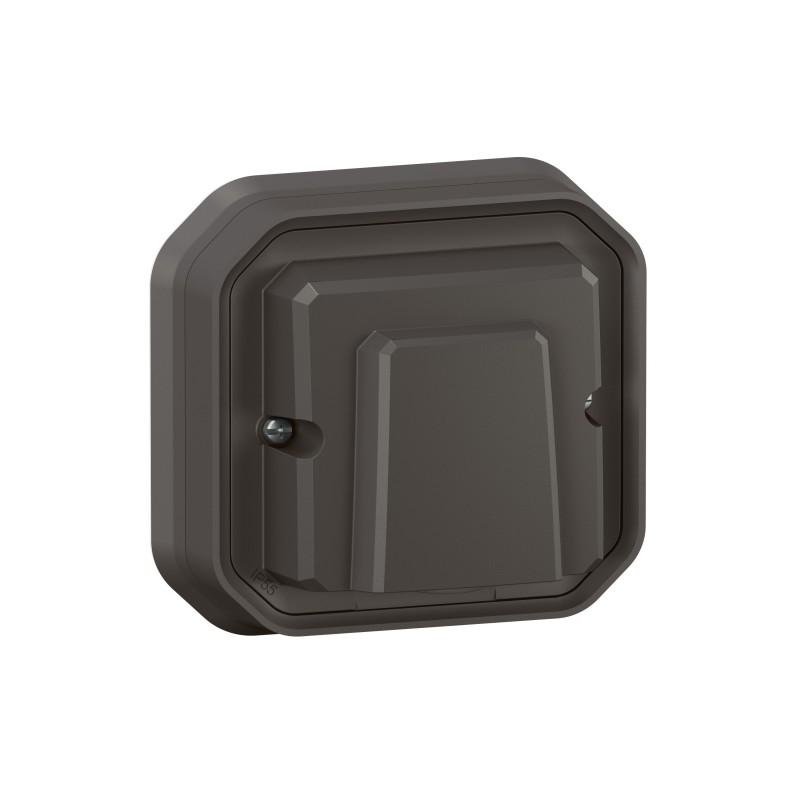

LEGRAND 069878L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069878L LEGRAND PL-MBL EMP OUTLET ANT CABLES

Code: 069878L

Manufacturer: LEGRAND

Description:

PL-MBL EMP OUTLET ANT CABLES
Plexo recessed monobloc cable outlet, anthracite - with cable ties
Plexo monobloc recessed cable outlet - cable ties - Anthracite

Categories:

  • Domestic switching devices > Appliance connection box
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 222,11 €

Unit Price: 44,422 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

The ideal solution for connecting devices supplied without a plug and that need protection against water and dust (IP55). For recessed installations.

Product features
  • Plexo cable outlet - recessed monobloc - Anthracite
  • IP55 - IK08 - 16A - 250V
  • Monobloc - trim without fixing
  • Possibility of mounting the grippers reference 0 697 96L
  • With cable ties Ø5mm to 13mm (3 x 2.5mm²)
description
Plexo monobloc cable outlet - Anthracite - For recessed installation - IP 55 - IK 08 - 16A - 250V - Equipped with cable ties from Ø5 to 13mm (3 x 2.5mm²) - Gray - Possibility of mounting the claws ref. 0 697 96L

Highlights

Advantages in installation
  • 1 reference = 1 complete mechanism ready to install

specifications

Type of mountingRecessed mounted (plaster)
Clampnone
Connection SystemNo terminal
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
ColourAnthracite
RAL number (similar)7016
Suitable for protection grade (IP)IP55
Device width82.1 mm
Device height84.6 mm
Device Depth74.51 mm
Installation Depth24.2 mm
Impact resistanceIK08
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Antibacterial treatmentNo

ETIM for 069878L Domestic wiring accessories and controls (EC000450)

Feature nameRAL-number (similar) (EF003882)
Feature value7016
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameDevice depth (EF008810)
Feature value74.51 mm
Feature nameDevice width (EF008808)
Feature value82.1 mm
Feature nameDevice height (EF008809)
Feature value84.6 mm
Feature nameClamps (EF000887)
Feature valueNone
Feature nameColour (EF000007)
Feature valueAnthracite
Feature nameConnection system (EF002649)
Feature valueWithout clamp

DATASHEET - PDF

Title
Size
Type
069878L EN_069848L.pdf
840 Kbytes
