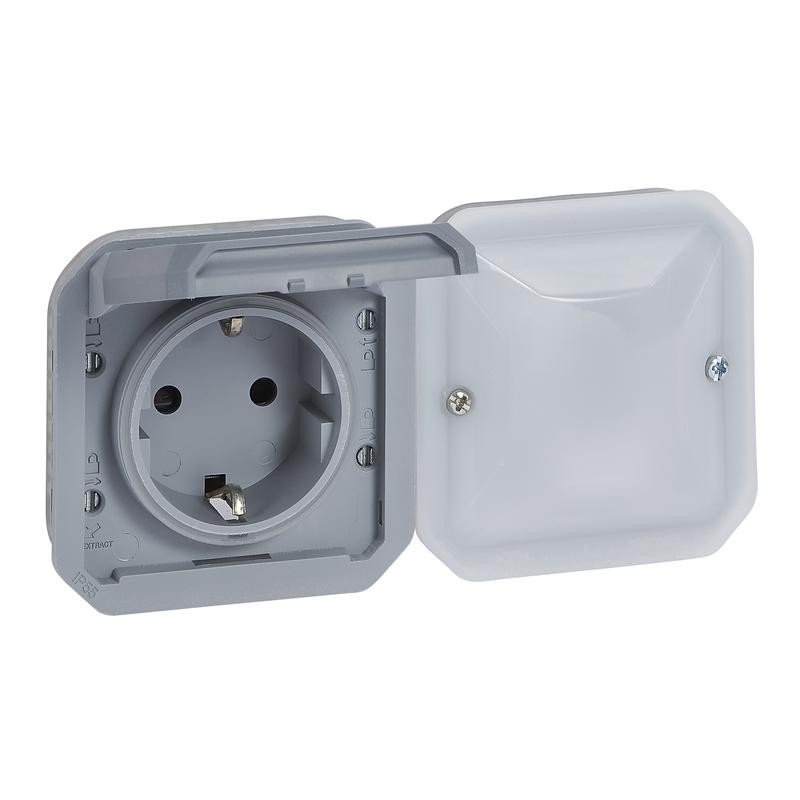

069877L LEGRAND PLWN-COMP BASE 2P+T GREY
069877L
LEGRAND
PLWN-COMP BASE 2P+T GREY
Plexo with Netatmo modular connected power base - Gray
Plexo modular connected power base w/Netatmo - Gray
Domestic switching devices > Socket outlet
NEXT VALENA WITH NETATMO
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Overview
The connected power base allows you to control appliances through the Home + Ccontrol app as well as consumption tracking.
Product features
- Plexo with Netatmo Power Base - Gray
- IP55 - IK08
- Overload protection
- Can be paired with one or multiple wireless light switches
- Compatible with the charging disconnect function
Recommendations / Restrictions
- Screw terminal
- The LED indicator function can be activated via the Home + Control app
description
The connected Plexo power base has an IP55 protection degree - It is compatible with all types of electrical equipment, especially household appliances - It incorporates additional protection in case of overloads above 16A - Allows the configuration of the sending of notifications (breakdown, excess consumption, etc.) - Uses the same wiring (phase and neutral) as a traditional power base - Installs in surface box or recessed frame - Requires the previous installation of a starter pack "with Netatmo" - Grayspecifications
| Suitable for regulation | No |
|---|---|
| Push-button safe | No |
| Suitable for shutter switches | No |
| Suitable for shutter switch | No |
| Suitable for blind/roller switches | No |
| Switch Suitable | No |
| In housing | Yes |
| In the connection tube housing | Yes |
| With module/board | No |
| Power supply | 230 V AC |
| Button Mode | No |
| Switching Operation | Yes |
| With handheld radio transmitter | Yes |
| With radio coding device | No |
| With wireless push button | No |
| Number of relays | 1 |
| Type of mounting | Surface mounted (plaster) |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Attachment Type | Other |
| Colour | Grey |
| Transparent | No |
| Suitable for protection grade (IP) | IP55 |
| Degree of protection (NEMA) | Other |
| Radio frequency | 2400 MHz |
| Modulation | FM |
| Sequential Code System | Yes |
|---|---|
| Number of commands | 0 |
| Compatible with Apple HomeKit | Yes |
| Compatible with Google Assistant | Yes |
| Compatible with Amazon Alexa | Yes |
| Compatible IFTTT | No |
| Width | 141.5 mm |
| Height | 70.5 mm |
| Depth | 50.5 mm |
| Installation Depth | 0 mm |
| Impact resistance | IK08 |
| Operating Temperature | 5-45°C |
| Storage temperature | 0-45 °C |
| Standby consumption | 1.6 mA |
| Neutral Mandatory | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Antibacterial treatment | No |
| Contains battery and/or accumulator | No |
| Connected Object | Yes |
| Method of operation | Zigbee |
| App download platform | App Store, Google Play Store |
| Programming medium | Smartphone apps |
| Programmable | Yes |
| Connection Protocol Interoperability | Yes |
| With voice command | Yes |
| Supported voice assistants | Google Assistant, Amazon Alexa, Apple Siri |
| App Name | Home + Control |
| Product usage function | Power Distribution |
| Possibility of connection via Internet box | Yes |
| Feature Name | Feature Value |
|---|---|
| Over voltage protection (EF001332) | No |
| Rotated central insert (EF001331) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Surface mounted |
| Special power supply (EF001334) | EV006426 |
| Connection type (EF000124) | Screwed terminal |
| Fault current protection (EF001333) | No |
| Nominal voltage (EF000002) | 240 V |
| Number of modules (module system) (EF009573) | 2 |
| Compatible with Apple HomeKit (EF014925) | Yes |
| Eject-mechanism (EF001051) | No |
| Compatible with Amazon Alexa (EF014927) | Yes |
| Compatible with Google Assistant (EF014926) | Yes |
| Number of ports USB-C (EF017049) | 0 |
| Imprint/indication (EF003823) | None |
| With hinged lid (EF000117) | No |
| Number of ports USB-A (EF000997) | 0 |
| Metallic colour (EF015260) | No |
| With Wi-Fi signal repeater (EF013509) | No |
| Model (EF000010) | Socket outlet CEE 7/3 (type F) |
| Number of socket outlets switchable (EF008814) | 1 |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 50.5 mm |
| Impact strength (EF004293) | IK08 |
| Anti-bacterial treatment (EF023790) | No |
| Number of active contacts (square) (EF017115) | 0 |
| Protective contact (EF017116) | Other |
| Device width (EF008808) | 141.5 mm |
| With on/off switch (EF000488) | Yes |
| Device height (EF008809) | 70.5 mm |
| Colour (EF000007) | Grey |
| Number of active contacts (flat) (EF011999) | 0 |
| Number of active contacts (round) (EF011998) | 2 |
| Material (EF002169) | Plastic |
| With orientation lighting (EF008862) | No |
| Label space/information surface (EF001035) | No |
| Surface finishing (EF006569) | Matt |
| Concurrently switching neutral conductor (EF005997) | No |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Other |
| With function lighting (EF008861) | Yes |
| Transparent (EF006243) | No |
| Colour of switch operator (EF015518) | Grey |
| Insulated mounting (EF001588) | No |
| Surface protection (EF000139) | Untreated |
| Frequency (EF000416) | 50 Hz |
| Number of phases (EF000351) | 1 |
| With signal lamp (EF000198) | Yes |
| Lockable (EF000113) | Yes |
| With built-in bluetooth speaker (EF016914) | No |
| With miniature fuse (EF006571) | No |
| IFTTT support available (EF011072) | No |
| Number of loop throughs (EF017971) | 1 |
| With enhanced contact protection (EF000389) | Yes |
| With loop through function (EF006604) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069877L EN_069877L.pdf | 965 Kbytes |
 |
