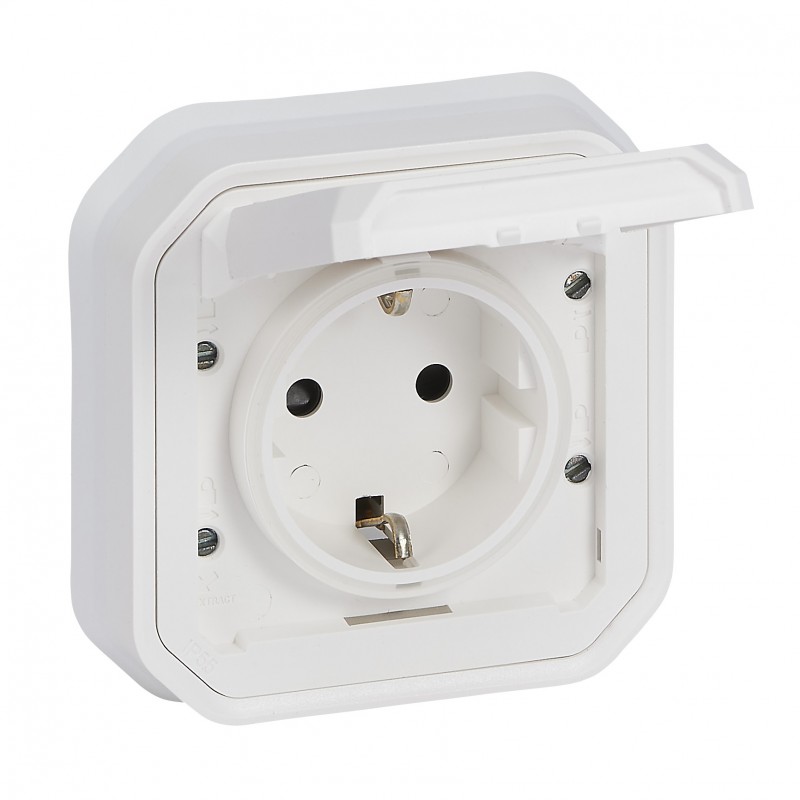

069869L LEGRAND PL-MBL EMP 2P+T TOR WHITE
069869L
LEGRAND
5
PL-MBL EMP 2P+T TOR WHITE
Plexo IP 55 - 16A - 2P+T monobloc recessed power base - screw terminal - white
Plexo monobloc recessed power base IP55 -16A-2P+T-terminal torn-White
Domestic switching devices > Socket outlet
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Overview
Power base 2P+T 16A. For installation that needs protection against water and dust - IP55. Complete mechanism for flush-mounted installation
Product features
- 2P+E power base with side earth contact - Screw terminal - White
- 16 A - 250 V~ - IP55 - IK08
description
Recessed mechanism 2 poles+ground Plexo - monobloc - white. Power bases - Gray - 16A - 250 V~ - 2P+T with side ground contact - Screw terminals. Plexus - Waterproof mechanisms IP 55 - recessedHighlights
Advantages in installation
- 1 reference = 1 complete mechanism ready to install
specifications
| Model | CEE 7/3 socket (type F) |
|---|---|
| Protective contact | Other |
| Number of active (round) contacts | 0 |
| Number of active contacts (drawings) | 0 |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of Units | 1 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | Protection Type (IP) |
| Connection Method | Screw-on terminal |
| With flip-top lid | Yes |
| With enhanced contact protection | Yes |
| Colour | White |
| RAL number (similar) | 9003 |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | No |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | No special power supply |
| Type of mounting | Recessed mounted (plaster) |
| Attachment Type | Screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
|---|---|
| Surface Finish | Mate |
| Antibacterial treatment | No |
| With loop function | No |
| With on/off switch | No |
| Rotated center insert | No |
| Nominal Voltage | 250 V |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP55 |
| Degree of protection (IP), plug connected | IP44 |
| Device width | 85 mm |
| Device height | 85 mm |
| Device Depth | 48 mm |
| Impact resistance | IK08 |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Min. depth of the recessed box | 40 mm |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| Compatible IFTTT | No |
| For server conditions according to VDE | Yes |
| Installation Depth | 31 mm |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| Display of markings on the connection terminals | Yes |
| Prewired | No |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Connected Object | No |
| Feature Name | Feature Value |
|---|---|
| Over voltage protection (EF001332) | No |
| Nominal current (EF000001) | 16 A |
| Rotated central insert (EF001331) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Special power supply (EF001334) | EV006426 |
| Connection type (EF000124) | Screwed terminal |
| Fault current protection (EF001333) | No |
| Nominal voltage (EF000002) | 250 V |
| Number of modules (module system) (EF009573) | 2 |
| Compatible with Apple HomeKit (EF014925) | No |
| Eject-mechanism (EF001051) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of ports USB-C (EF017049) | 0 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Imprint/indication (EF003823) | Degree of protection (IP) |
| With hinged lid (EF000117) | Yes |
| Number of ports USB-A (EF000997) | 0 |
| Metallic colour (EF015260) | No |
| With Wi-Fi signal repeater (EF013509) | No |
| RAL-number (similar) (EF003882) | 9003 |
| Model (EF000010) | Socket outlet CEE 7/3 (type F) |
| Number of socket outlets switchable (EF008814) | 0 |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 48 mm |
| Impact strength (EF004293) | IK08 |
| Anti-bacterial treatment (EF023790) | No |
| Number of active contacts (square) (EF017115) | 0 |
| Protective contact (EF017116) | Other |
| Device width (EF008808) | 85 mm |
| With on/off switch (EF000488) | No |
| Device height (EF008809) | 85 mm |
| Colour (EF000007) | White |
| For heavy conditions according to VDE (EFDE0005) | Yes |
| Number of active contacts (flat) (EF011999) | 0 |
| Number of active contacts (round) (EF011998) | 2 |
| Material (EF002169) | Plastic |
| With orientation lighting (EF008862) | No |
| Surface finishing (EF006569) | Matt |
| Concurrently switching neutral conductor (EF005997) | No |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Mounting with screw |
| With function lighting (EF008861) | No |
| Transparent (EF006243) | No |
| Insulated mounting (EF001588) | No |
| Surface protection (EF000139) | Untreated |
| Frequency (EF000416) | 50 Hz |
| Number of phases (EF000351) | 1 |
| With signal lamp (EF000198) | No |
| Lockable (EF000113) | No |
| With built-in bluetooth speaker (EF016914) | No |
| With miniature fuse (EF006571) | No |
| IFTTT support available (EF011072) | No |
| With enhanced contact protection (EF000389) | Yes |
| With loop through function (EF006604) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069869L EN_069733L.pdf | 939 Kbytes |
 |
