069849L LEGRAND PL-MBL EMP SALT CABLE W/BOR GR
069849L
LEGRAND
10

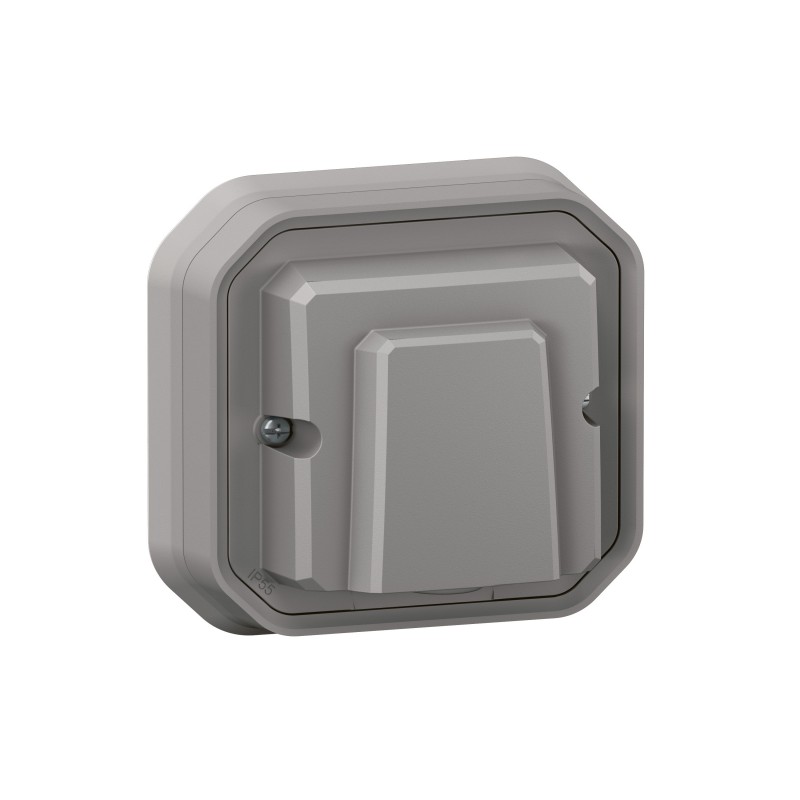

PL-MBL EMP SALT CABLE W/BOR GR
20S Plexo monobloc recessed cable outlet, gray - with connection terminal
20S Plexo monobloc recessed cable outlet - connection terminal - Gray
Domestic switching devices > Appliance connection box
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Overview
The ideal solution for connecting devices supplied without a plug and that need protection against water and dust (IP55). For recessed installations.
Product features
- Cable outlet with Plexo connection terminal - recessed monobloc - Gray
- IP55 - IK08 - 20A - 250V
- Monobloc - trim without fixing
- Possibility of mounting the grippers reference 0 697 96L
- With 3 2.5mm² input terminals and 3 front terminals for easy wiring
description
Cable outlet with Plexo monobloc connection terminal - Gray - For recessed installation - IP 55 - IK 08 - 20A - 250V - Equipped with 3 input terminals 2.5mm² and 3 front terminals to facilitate wiring - Gray - Possibility of mounting the claws ref. 0 697 96LHighlights
Advantages in installation
- 1 reference = 1 complete mechanism ready to install
specifications
| Type of mounting | Recessed mounted (plaster) |
|---|---|
| Clamp | Other |
| Connection System | Screw-on terminal |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Colour | Grey |
| RAL number (similar) | 7046 |
| Suitable for protection grade (IP) | IP55 |
| Device width | 85 mm |
|---|---|
| Device height | 85 mm |
| Device Depth | 61 mm |
| Installation Depth | 24 mm |
| Impact resistance | IK08 |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Antibacterial treatment | No |
| Feature Name | Feature Value |
|---|---|
| RAL-number (similar) (EF003882) | 7046 |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Halogen free (EF000025) | Yes |
| Device depth (EF008810) | 61 mm |
| Device width (EF008808) | 85 mm |
| Device height (EF008809) | 85 mm |
| Clamps (EF000887) | Other |
| Colour (EF000007) | Grey |
| Connection system (EF002649) | Screwed terminal |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069849L EN_069848L.pdf | 840 Kbytes |
 |
