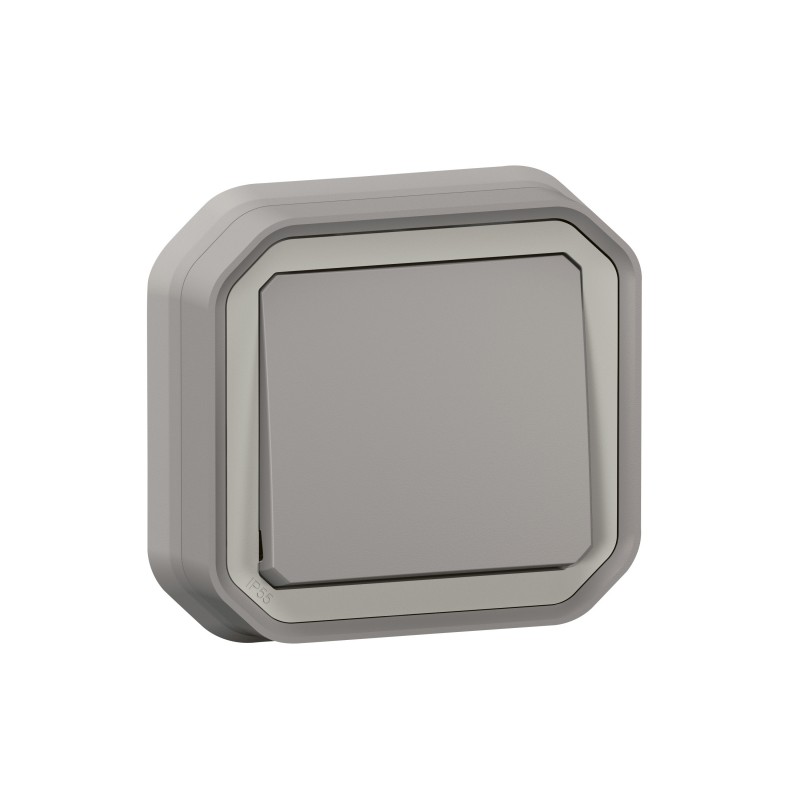

069820L LEGRAND PL-MBL EMP PULS 1A 10A GREY
069820L
LEGRAND
5
PL-MBL EMP PULS 1A 10A GREY
NA Plexo monobloc recessed button gray - 10 A
NA Plexo monobloc recessed push button - 10A - Gray
Domestic switching devices > Push-switch button
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Overview
Push button suitable for various everyday uses: lighting, door opening, doorbell, timer... from a location that needs protection against water and dust (IP55).
Product features
- NA Plexo pushbutton, monobloc recessed
- IP55 - IK08 - 10A
- Automatic terminal
- Recessed monobloc
- Grey
description
Plexo gray monobloc flush button - 10A - IP 55 - IK 08 - Automatic terminal - switches, pushbuttons and automatic switches - Supplied complete with 2 membranes - plate not fitted.Highlights
Advantages in installation
- 1 reference = 1 complete mechanism ready to install
specifications
| Type of mounting | Base element with full housing, Recessed mounted (plaster) |
|---|---|
| Model | Single push button |
| Type of operation | Button |
| Number of Normally Closed Contacts | 0 |
| Number of contacts normally opened | 1 |
| Number of investor contacts | 0 |
| Number of rotating contacts | 0 |
| Contactless Type | No |
| Number of rocker arms | 1 |
| Number of poles | 1 |
| Nominal Voltage | 250 V |
| Nominal current | 10 A |
| With light | No |
| With light source | No |
| With signal lamp | No |
| Monitoring contacts | No |
| Connection Method | Plug clamp |
| Attachment Type | Thread fastening |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | Grey |
|---|---|
| RAL number (similar) | 7046 |
| Transparent | No |
| Label Space/Print Area | No |
| Overprinting | none |
| Suitable for protection grade (IP) | IP55 |
| Impact resistance | IK08 |
| Device width | 82 mm |
| Device height | 85 mm |
| Device Depth | 54 mm |
| Min. depth of the recessed box | 40 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Installation Depth | 28.5 mm |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Display of markings on the connection terminals | Yes |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Connection type (EF000124) | Screwless terminal |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Type of fastening (EF002442) | Screw mounting |
| Nominal voltage (EF000002) | 250 V |
| Contactless type (EF015811) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Transparent (EF006243) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Number of poles (EF001391) | 1 |
| Compatible with Google Assistant (EF014926) | No |
| With lighting (EF003829) | No |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Surface protection (EF000139) | Untreated |
| With light source (EF005905) | No |
| RAL-number (similar) (EF003882) | 7046 |
| Model (EF000010) | Single push button |
| Imprint (EF000131) | None |
| Number of contacts as change-over contact (EF008257) | 0 |
| With signal lamp (EF000198) | No |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 54 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Feedback-signal contact (EF001181) | No |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK08 |
| IFTTT support available (EF011072) | No |
| Number of revolving contacts (EF015810) | 0 |
| Assembly arrangement (EF000005) | Basic unit fully enclosed |
| Device width (EF008808) | 82 mm |
| Device height (EF008809) | 85 mm |
| Rated current (EF000227) | 10 A |
| Colour (EF000007) | Grey |
| Method of operation (EF000006) | Push button |
| Number of rockers (EF003816) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069820L EN_069722L.pdf | 852 Kbytes |
 |
