LEGRAND069818L LEGRAND PL-COM SUP TAKES 2P+T 16A VE AN

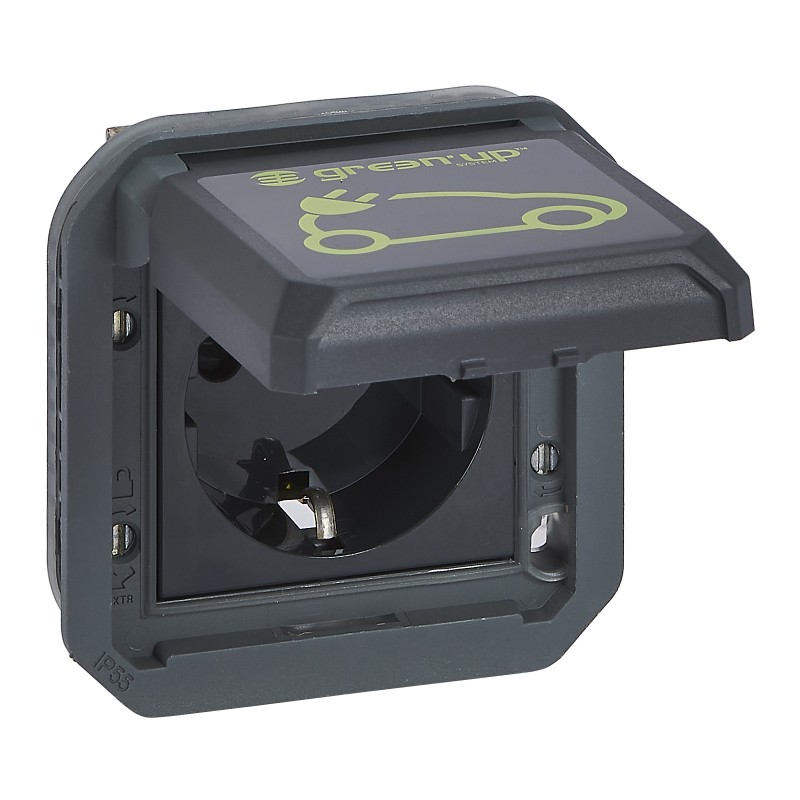

LEGRAND 069818L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069818L LEGRAND PL-COM SUP TAKES 2P+T 16A VE AN

Code: 069818L

Manufacturer: LEGRAND

Description:

PL-COM SUP TAKES 2P+T 16A VE AN
Plexo IP55 power base for electric vehicle charging - Modular - Anthracite
Plexo Modular Power Base IP55 -Vehicle elec-Anthracite

Categories:

  • Industrial socket/plug applications > Charging connector E-Mobility
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 116,72 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

Heavy-duty base with silver-plated contacts - For charging 1 vehicle

Product features
  • Plexo Power Base for Electric Vehicle Charging
  • IP55 - IK08 - 16A - 230V
  • Conforms to IEC 60-884-1
  • Automatic terminal
  • Supplied with the 0 694 94L base to hang the control box from the vehicle charging cable
description
Plexo Modular Electric Vehicle Base - Anthracite - Single-phase sockets - Screw connection - 230V - Suitable for installation in private homes, closed garages, parking lots - IP55 - IK08 - 16A 230V - Recessed or surface installation in frame or support - Supplied with the 0.694.94L base to hang the control box from the vehicle's charging cable.

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

Type of mountingSurface-mounted/slot-mounted
ModelSocket for charging
StandardOther
Connection SystemThreaded connection
With locking actuatorNo
With access lockNo
Protection Class (IP)IP55
Width70.5 mm
Height70.5 mm
Depth54 mm
Nominal Voltage250 V
Maximum current rating16 A
Type of currentAC 1 phase
Integrated LEDNo
Contact materialOther
Contact surface treatmentSilver plated
Impact resistanceIK08
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
ColourAnthracite
Terminal capacity1.5-2.5 mm²

ETIM for 069818L Industrial plugs and sockets (EC002898)

Feature nameLED integrated (EF009328)
Feature valueNo
Feature nameHeight (EF000040)
Feature value70.5 mm
Feature nameModel (EF000010)
Feature valueCharging socket outlet
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameType of current (EF000143)
Feature valueAC single phase
Feature nameWith access interlocking (EF009324)
Feature valueNo
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameMax. nominal current (EF009326)
Feature value16 A
Feature nameWith interlocking actuator (EF009323)
Feature valueNo
Feature nameStandard (EF009322)
Feature valueOther
Feature nameSurface treatment contacts (EF002558)
Feature valueSilver-plated
Feature nameDepth (EF000049)
Feature value54 mm
Feature nameContact material (EF004019)
Feature valueOther
Feature nameWidth (EF000008)
Feature value70.5 mm
Feature nameConnection system (EF002649)
Feature valueScrew connection
