LEGRAND069815L LEGRAND PL-MBL EMP CONM DOUBLE 10A GREY

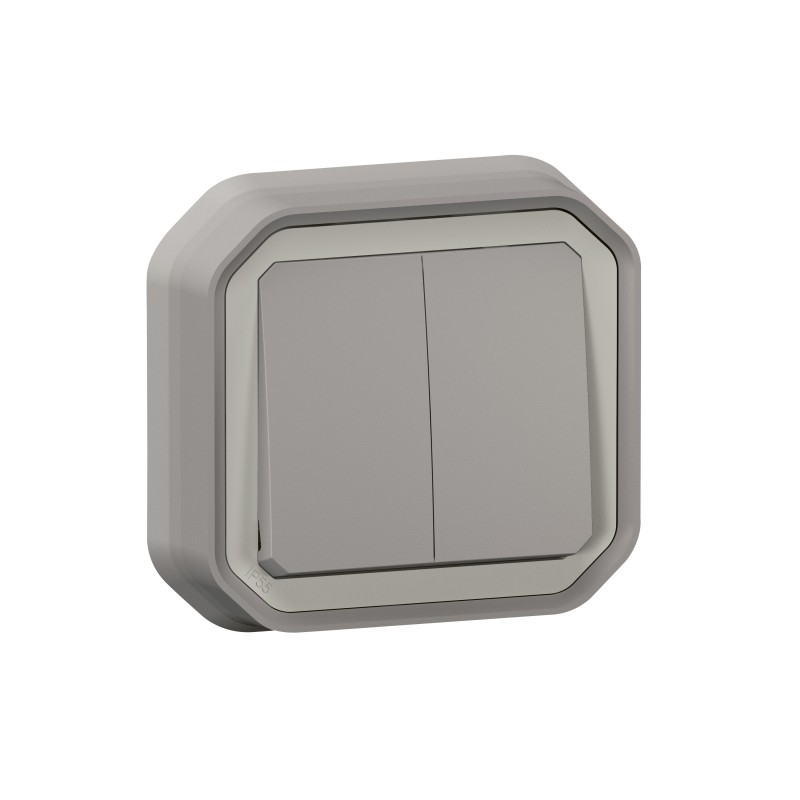

LEGRAND 069815L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069815L LEGRAND PL-MBL EMP CONM DOUBLE 10A GREY

Code: 069815L

Manufacturer: LEGRAND

Description:

PL-MBL EMP CONM DOUBLE 10A GREY
Plexo monobloc double switch for recessed gray - 10AX
Plexo monobloc double switch recessed - 10AX - Gray

Categories:

  • Domestic switching devices > Installation switch
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 538,22 €

Unit Price: 53,822 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

The 10A dual switch allows you to control the lighting from two different control points, where protection against water and dust is needed. (IP55). Complete product for recessed installation.

Product features
  • Plexo Double Switch - Recessed Monobloc
  • IP55 - IK08 - 10AX - 250V
  • Automatic terminal
  • Monobloc - with trim not fixed
  • Grey
description
Double Plexo monobloc recessed switch - Gray - Switches 10 AX - 250V - IP 55 - IK 08 - Automatic terminal - Possibility of mounting the claws ref. 0 697 96L.

Highlights

Advantages in installation
  • 1 reference = 1 complete mechanism ready to install

specifications

Cabling SystemOther
Type of operationRocker/button
Type of mountingBase element with full housing, Recessed mounted (plaster)
Push Button SwitchYes
Number of rocker arms2
Attachment TypeThread fastening
With mounting plateNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishMate
ColourGrey
RAL number (similar)7046
Switching element colorGrey
Label space/print surfaceNo
LightingNo
Suitable for protection grade (IP)IP55
Impact resistanceIK08
Nominal Voltage250 V
Nominal current10 A
Switching current for fluorescent lamps10 AX
Monitoring contactsNo
Connection MethodPlug clamp
Heating switchNo
Washing machine switchNo
Device width85 mm
Device height85 mm
Device Depth57 mm
Installation Depth28.5 mm
Min. depth of the recessed box40 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
frequency50-60 Hz
Display of markings on the connection terminalsYes
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²

ETIM for 069815L Domestic wiring accessories and controls (EC001590)

Feature nameLabel space/information surface (EF009419)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameConnection type (EF000124)
Feature valueScrewless terminal
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameType of fastening (EF002442)
Feature valueScrew mounting
Feature nameWiring system (EF002960)
Feature valueOther
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature namePush button switch (EF003895)
Feature valueYes
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameColour of switch operator (EF015518)
Feature valueGrey
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameHeating switch (EF016279)
Feature valueNo
Feature nameMin. depth of built-in installation box (EF012278)
Feature value40 mm
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameSwitching current for fluorescent lamps (EF003888)
Feature value10 AX
Feature nameBuilt-in depth (EF000218)
Feature value28.5 mm
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value7046
Feature nameWashing machine switch (EF006316)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameDevice depth (EF008810)
Feature value57 mm
Feature nameLighting (EF000134)
Feature valueNo
Feature nameFeedback-signal contact (EF001181)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK08
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameDevice width (EF008808)
Feature value85 mm
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit fully enclosed
Feature nameDevice height (EF008809)
Feature value85 mm
Feature nameRated current (EF000227)
Feature value10 A
Feature nameColour (EF000007)
Feature valueGrey
Feature nameMethod of operation (EF000006)
Feature valueRocker
Feature nameNumber of rockers (EF003816)
Feature value2

DATASHEET - PDF

Title
Size
Type
069815L EN_069715L.pdf
933 Kbytes
