069780 LEGRAND DETECTOR BLANC IR WATERPROOF 360 °
069780
LEGRAND
DETECTOR BLANC IR WATERPROOF 360 °

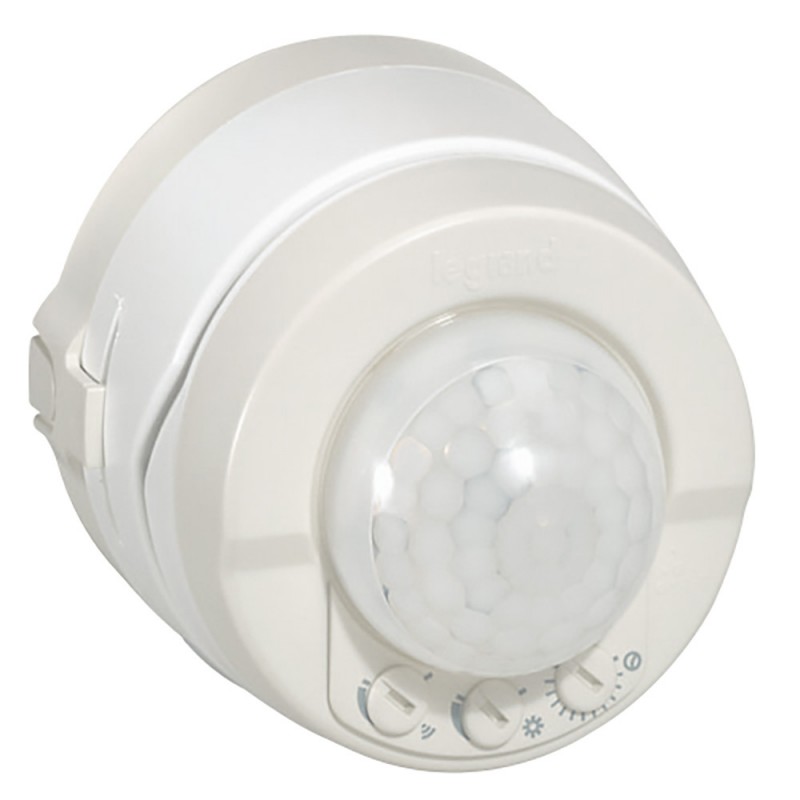

Movement detector Plexo IP55 - detection angle 360° - surface mounting - white
360° PIR detector - range 8/12m - ceiling/wall surface installation white
Domestic switching devices > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)0.931
- Weight (g)219.00
PIR IP 55 wall or ceiling-mounting motion sensors, 360°
- With directional head, range Ø8 m
- Fix directly to ceiling or wall (min. height: 1.70 m)
- 3-wire with neutral
- Light level threshold: 1 to 1000 lux
- Adjustable time delay: 12 s to 16 min
- Standby consumption: 0.9 W
- Optimum distance between 2 sensors: 6 m
- White
- Automatic on/off
- Manual adjustment of light level threshold and time delay via potentiometer
| Feature Name | Feature Value |
|---|---|
| Bridging switch (EF001099) | Yes |
| Staircase light controller (EF001098) | Yes |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Surface mounted |
| Min. switch-on time (EF006589) | 12 s |
| Compatible with Apple HomeKit (EF014925) | No |
| Detection angle horizontal (EF006582) | 0 ° |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Networkable (EF003904) | No |
| Response value sensitivity adjustable (EF003429) | Yes |
| RAL-number (similar) (EF003882) | 9016 |
| Animal zone (EF006311) | No |
| Model (EF000010) | Movement sensor |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 2.5 m |
| Max. duty cycle (EF006590) | 16 min |
| Anti-bacterial treatment (EF023790) | No |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Max. starting current (EF001732) | 8.5 A |
| Connection cable length (EF003636) | 0 mm |
| Temperature (EF001731) | 0 °C |
| Substation input (EF003876) | No |
| Colour (EF000007) | White |
| With connection cable (EF005036) | No |
| With signal unit (EF003890) | Yes |
| Suitable for wireless transmission (EF001198) | No |
| Degree of protection (IP) (EF005474) | IP55 |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | Yes |
| Voltage type (EF000187) | AC |
| Surface finishing (EF006569) | Glossy |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Max. switching power (EF001503) | 2000 W |
| Forced switch off (EF003920) | No |
| Surface protection (EF000139) | Untreated |
| Diameter reach on floor (EF003843) | 6 m |
| Frequency (EF000416) | 50 Hz |
| Remote operation (EF003848) | No |
| Constant light control (EF003863) | Yes |
| Nominal voltage (EF005127) | 230 V |
| Max. reach sideways (EF001323) | 4 m |
| Max. reach frontally (EF001322) | 12 m |
| IFTTT support available (EF011072) | No |
| Creep-under protection (EF000147) | Yes |
| Teach-function for response value luminosity (EF003898) | No |
| Response value luminosity (EF003814) | 10 lx |
| HVAC-control (EF003858) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069780 EN_069780.pdf | 2 Mbytes |
 |
