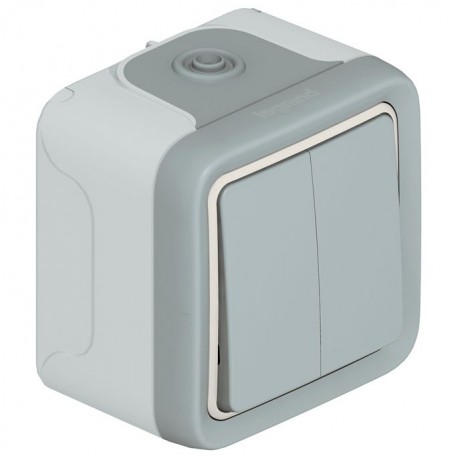

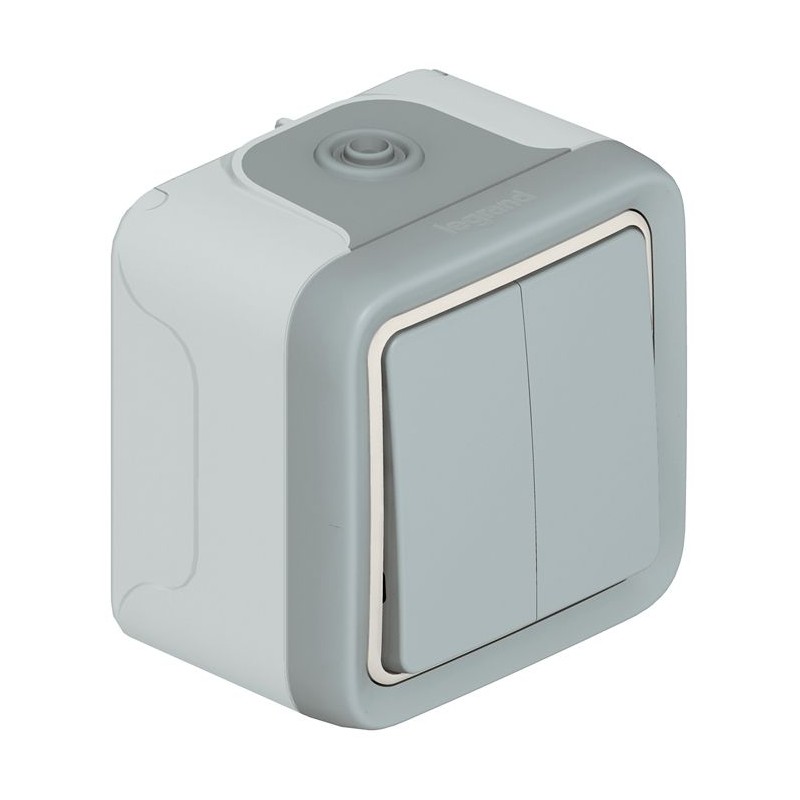

069725 LEGRAND PL-MBL SUP PULS DOUBLE 10A GRAY
069725
LEGRAND
PL-MBL SUP PULS DOUBLE 10A GRAY
Double pushbutton Plexus monoblock surface grey - 10
On-Off switch, 1 pole, 20 A, 90 °, center mounting
Domestic switching devices > Push-switch button
PLEXO-IDROBOX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Push-buttons 10 A IP 55 - IK 07 - Embornamiento automatic - Double-push-button NA - GrayGeneral characteristics
Plexus - Mechanisms watertight IP 55 - close-coupled - surface - switches, pushbuttons, and circuit breakers - Supplied complete with 2 cone - plate without conceding| Feature Name | Feature Value |
|---|---|
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Connection type (EF000124) | Screwless terminal |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Surface mounted |
| Type of fastening (EF002442) | Screw mounting |
| Nominal voltage (EF000002) | 250 V |
| Number of modules (module system) (EF009573) | 2 |
| Contactless type (EF015811) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Transparent (EF006243) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Number of poles (EF001391) | 2 |
| Compatible with Google Assistant (EF014926) | No |
| With lighting (EF003829) | No |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Surface protection (EF000139) | Untreated |
| RAL-number (similar) (EF003882) | 7046 |
| Model (EF000010) | Series push button |
| Imprint (EF000131) | None |
| Number of contacts as change-over contact (EF008257) | 0 |
| With signal lamp (EF000198) | No |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 57 mm |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Feedback-signal contact (EF001181) | No |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK07 |
| IFTTT support available (EF011072) | No |
| Assembly arrangement (EF000005) | Basic unit fully enclosed |
| Device width (EF008808) | 80 mm |
| Device height (EF008809) | 84 mm |
| Rated current (EF000227) | 10 A |
| Colour (EF000007) | Grey |
| Method of operation (EF000006) | Rocker |
| Number of rockers (EF003816) | 2 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069725 EN_069539.pdf | 602 Kbytes |
 |
