LEGRAND069720L LEGRAND PL-MBL SUP PULS 1A 10A GREY

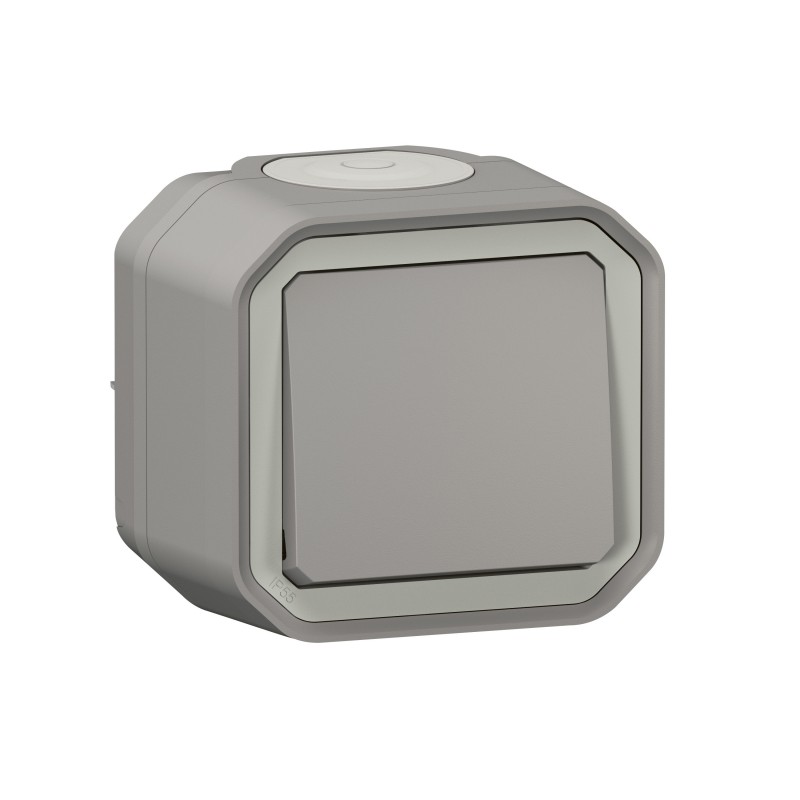

LEGRAND 069720L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069720L LEGRAND PL-MBL SUP PULS 1A 10A GREY

Code: 069720L

Manufacturer: LEGRAND

Description:

PL-MBL SUP PULS 1A 10A GREY
NA Plexo monobloc button with gray surface - 10 A
NA Plexo monobloc surface push button - 10A - Gray

Categories:

  • Domestic switching devices > Push-switch button
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 272,05 €

Unit Price: 27,205 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

Push button suitable for various everyday uses: lighting, door opening, doorbell, timer... from a location that needs protection against water and dust (IP55). Complete product for surface installation.

Product features
  • NA Plexo pushbutton, surface monobloc
  • IP55 - IK08 - 10A
  • Automatic terminal
  • Monobloc with 2 membranes - plate not fixed
  • Grey
description
Plexo gray monobloc surface push button - 10A - IP 55 - IK 08 - Automatic terminal - switches, pushbuttons and automatic switches - Supplied complete with 2 membranes - plate not fitted.

Highlights

Advantages in installation
  • 1 reference = 1 complete mechanism ready to install

specifications

Type of mountingBase element with full housing, Surface mounted (plaster)
ModelSingle push button
Type of operationButton
Number of Normally Closed Contacts0
Number of contacts normally opened1
Number of investor contacts0
Number of rotating contacts0
Contactless TypeNo
Number of rocker arms1
Nominal Voltage250 V
Nominal current10 A
With lightNo
With light sourceNo
With signal lampNo
Monitoring contactsNo
Connection MethodPlug clamp
Attachment TypeThread fastening
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishMate
ColourGrey
RAL number (similar)7046
TransparentNo
Label Space/Print AreaNo
Overprintingnone
Suitable for protection grade (IP)IP55
Impact resistanceIK08
Device width82 mm
Device height85 mm
Device Depth64 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsYes
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Tube diameter for wall-mounted product16-25 mm

ETIM for 069720L Domestic wiring accessories and controls (EC000029)

Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameConnection type (EF000124)
Feature valueScrewless terminal
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameType of fastening (EF002442)
Feature valueScrew mounting
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameContactless type (EF015811)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameWith lighting (EF003829)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith light source (EF005905)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value7046
Feature nameModel (EF000010)
Feature valueSingle push button
Feature nameImprint (EF000131)
Feature valueNone
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameWith signal lamp (EF000198)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameDevice depth (EF008810)
Feature value64 mm
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value1
Feature nameFeedback-signal contact (EF001181)
Feature valueNo
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK08
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameNumber of revolving contacts (EF015810)
Feature value0
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit fully enclosed
Feature nameDevice width (EF008808)
Feature value82 mm
Feature nameDevice height (EF008809)
Feature value85 mm
Feature nameRated current (EF000227)
Feature value10 A
Feature nameColour (EF000007)
Feature valueGrey
Feature nameMethod of operation (EF000006)
Feature valuePush button
Feature nameNumber of rockers (EF003816)
Feature value1

DATASHEET - PDF

Title
Size
Type
069720L EN_069722L.pdf
852 Kbytes
