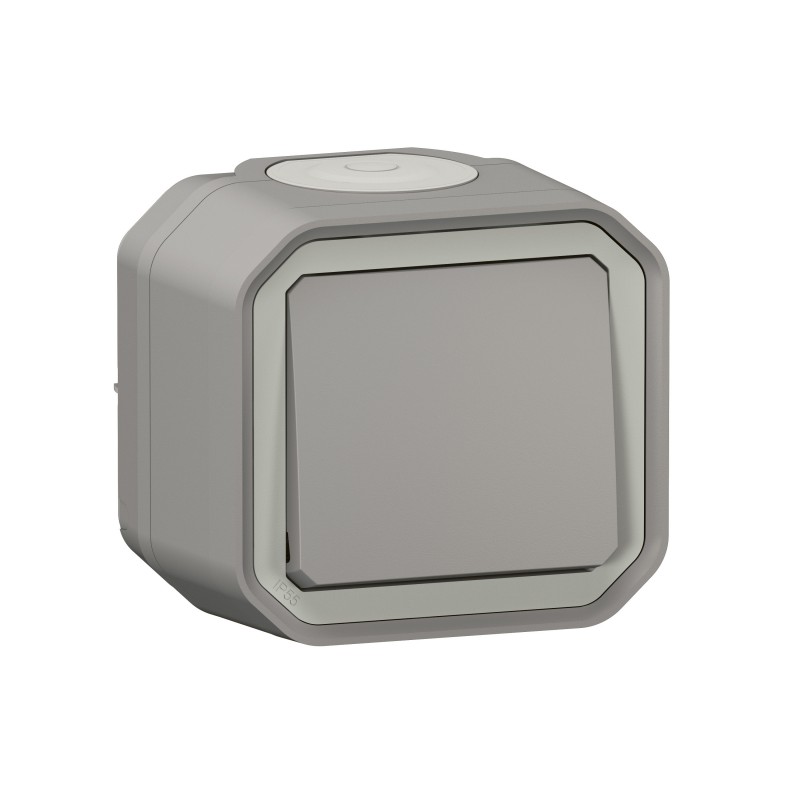

069716L LEGRAND PL-MBL SUP CRUZ 1P 10A GREY
069716L
LEGRAND
10
PL-MBL SUP CRUZ 1P 10A GREY
Plexo IP 55 gray crossing - 10AX - 250V~ - surface monobloc
Plexo monobloc surface crossing IP55 -10AX-Gray
Domestic switching devices > Installation switch
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Overview
The watertight crossover allows you to control a light circuit of 3 different points when combined with two switches. Protection degree: IP55. Complete product with 2 membranes, surface.
Product features
- Plexo Crossing - Surface Monobloc - Grey
- IP55 - IK08 - 10AX - 24V
- Automatic terminal
- Monobloc - with trim not fixed
- Grey
description
Monobloc surface crossing Plexo gray. Switches 10 AX - 250 V~ - IP 55 - IK 08 - Automatic terminals - switches, pushbuttons and automatic switches - Supplied complete with 2 membranes - plate not fitted.Highlights
Advantages in installation
- 1 reference = 1 complete mechanism ready to install
specifications
| Cabling System | Intermediate switch |
|---|---|
| Type of operation | Rocker/button |
| Type of mounting | Base element with full housing, Surface mounted (plaster) |
| Push Button Switch | No |
| Number of rocker arms | 1 |
| Attachment Type | Thread fastening |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | Grey |
| RAL number (similar) | 7046 |
| Switching element color | Grey |
| Label space/print surface | No |
| Lighting | No |
| Suitable for protection grade (IP) | IP55 |
| Impact resistance | IK07 |
| Nominal Voltage | 250 V |
| Nominal current | 10 A |
| Switching current for fluorescent lamps | 10 AX |
|---|---|
| Monitoring contacts | No |
| Connection Method | Plug clamp |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 82 mm |
| Device height | 85 mm |
| Device Depth | 61 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | Yes |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Tube diameter for wall-mounted product | 16-25 mm |
| Feature Name | Feature Value |
|---|---|
| Label space/information surface (EF009419) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Connection type (EF000124) | Screwless terminal |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Surface mounted |
| Type of fastening (EF002442) | Screw mounting |
| Wiring system (EF002960) | Intermediate switch |
| Nominal voltage (EF000002) | 250 V |
| Push button switch (EF003895) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Colour of switch operator (EF015518) | Grey |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Heating switch (EF016279) | No |
| Surface protection (EF000139) | Untreated |
| Switching current for fluorescent lamps (EF003888) | 10 AX |
| With mounting plate (EF000118) | No |
| RAL-number (similar) (EF003882) | 7046 |
| Washing machine switch (EF006316) | No |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 61 mm |
| Lighting (EF000134) | No |
| Feedback-signal contact (EF001181) | No |
| Impact strength (EF004293) | IK07 |
| Anti-bacterial treatment (EF023790) | No |
| IFTTT support available (EF011072) | No |
| Device width (EF008808) | 82 mm |
| Assembly arrangement (EF000005) | Basic unit fully enclosed |
| Device height (EF008809) | 85 mm |
| Rated current (EF000227) | 10 A |
| Colour (EF000007) | Grey |
| Method of operation (EF000006) | Rocker |
| Number of rockers (EF003816) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069716L EN_069712L.pdf | 916 Kbytes |
 |
