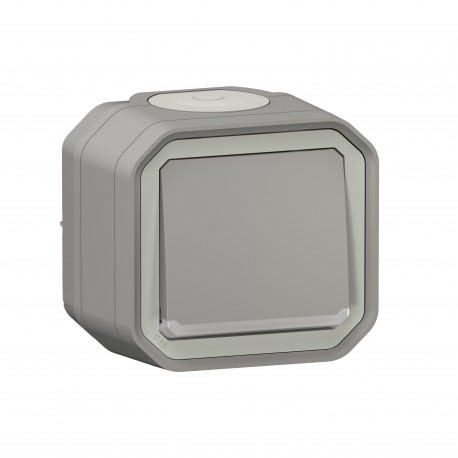

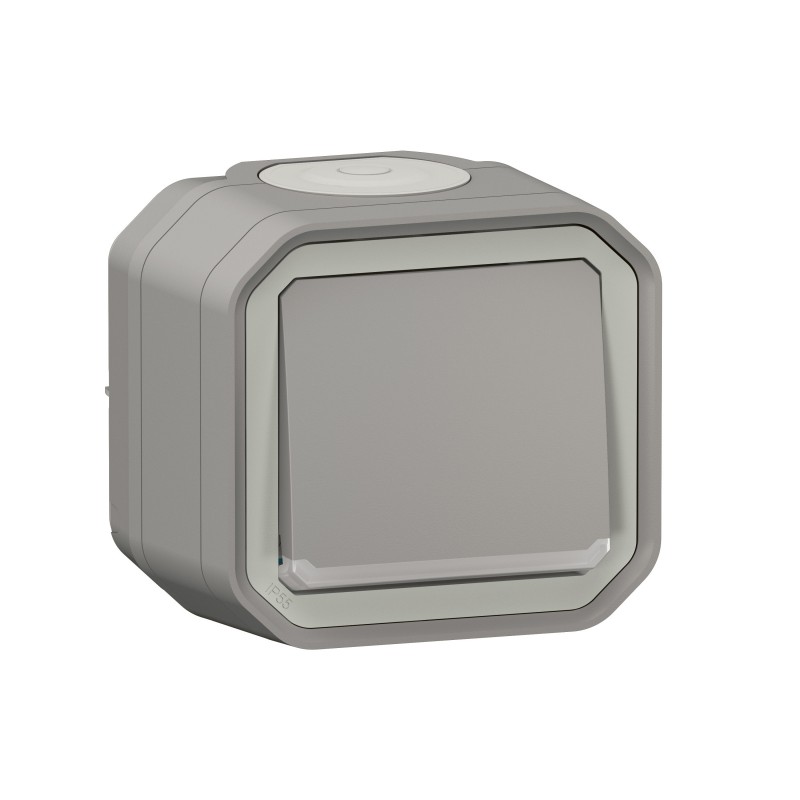

LEGRAND 069712L 069712L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069712L LEGRAND Surface Monobloc Plexus Switch 10AX

Reference: 069712L

Manufacturer: LEGRAND

Description:

Surface Monobloc Plexus Switch - 10AX
PL-MBL SUP CONM PIL 1P10A GRAY
Plexo monobloc gray surface witness switch - 10AX
Plexo monobloc surface witness switch - 10AX - Gray

Categories:

  • Domestic switching devices > Installation switch
  • LEGRAND > PLEXO-IDROBOX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 202,95 €

Unit Price: 20,295 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

The 10A Plexo switch with LED indicator allows lighting to be controlled from two different control points, where water protection (IP55) is required. Complete product for surface installation.

Product features
  • Plexo pilot switch - surface monobloc
  • IP55 - IK08 - 10AX - 250V
  • Supplied with 230V lamp
  • Automatic terminal
  • Monobloc with 2 membranes - trim not fixed
description
Surface surface pilot switch PLEXO. Switches 10 AX - 250V - IP 55 - IK 08 - Automatic terminal - Pilot switch wired distributed phase - Includes 230V lamp - Gray - switches, pushbuttons and automatic switches - Supplied complete with 2 membranes - plate not fitted.

Highlights

Advantages in installation
  • 1 reference = 1 complete mechanism ready to install

specifications

Cabling SystemBidirectional switch
Type of operationRocker/button
Type of mountingBase element with full housing, Surface mounted (plaster)
Push Button SwitchNo
Number of rocker arms1
With mounting plateNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishMate
ColourGrey
RAL number (similar)7046
Switching element colorGrey
Label space/print surfaceNo
LightingYes
Lighting functionIlluminated (On)
Lighting TypeInterchangeable LED
Suitable for protection grade (IP)IP55
Impact resistanceIK08
Nominal Voltage250 V
Nominal current10 A
Switching current for fluorescent lamps10 AX
Monitoring contactsNo
Connection MethodPlug clamp
Heating switchNo
Washing machine switchNo
Device width82 mm
Device height85 mm
Device Depth61 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
frequency50-60 Hz
Display of markings on the connection terminalsYes
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Tube diameter for wall-mounted product16-25 mm

ETIM for 069712L Domestic wiring accessories and controls (EC001590)

Feature nameLabel space/information surface (EF009419)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameConnection type (EF000124)
Feature valueScrewless terminal
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameWiring system (EF002960)
Feature valueTwo-way switch
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature namePush button switch (EF003895)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameColour of switch operator (EF015518)
Feature valueGrey
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameHeating switch (EF016279)
Feature valueNo
Feature nameType of lighting (EF001401)
Feature valueLED replaceable
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameSwitching current for fluorescent lamps (EF003888)
Feature value10 AX
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value7046
Feature nameWashing machine switch (EF006316)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameDevice depth (EF008810)
Feature value61 mm
Feature nameLighting (EF000134)
Feature valueYes
Feature nameFunction lighting (EF009420)
Feature valueIlluminated (on)
Feature nameFeedback-signal contact (EF001181)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK08
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameDevice width (EF008808)
Feature value82 mm
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit fully enclosed
Feature nameDevice height (EF008809)
Feature value85 mm
Feature nameRated current (EF000227)
Feature value10 A
Feature nameColour (EF000007)
Feature valueGrey
Feature nameMethod of operation (EF000006)
Feature valueRocker
Feature nameNumber of rockers (EF003816)
Feature value1
