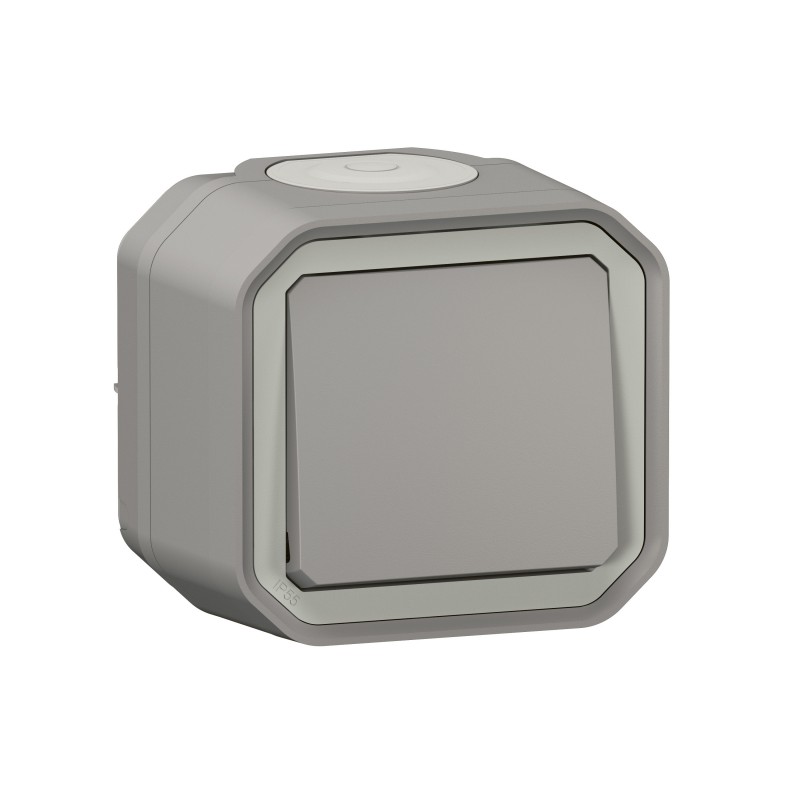

069711L LEGRAND PL-MBL SUP CONM 1P 10A GREY
069711L
LEGRAND
10
PL-MBL SUP CONM 1P 10A GREY
Plexo monobloc switch with gray surface - 10AX
Plexo monobloc surface switch - 10AX - Gray
Domestic switching devices > Installation switch
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Overview
The 10A Plexo switch allows lighting to be controlled from two different control points, where protection against water and dust is needed. (IP55). Complete product for surface installation.
Product features
- Plexo Switch - Surface Monobloc
- IP55 - IK08 - 10AX - 250V
- Automatic terminal
- Monobloc with 2 membranes - plate not fixed
- Grey
description
Plexo monobloc gray surface switch. Switches 10 AX - 250V - IP 55 - IK 08 - Automatic terminal - Switch - White. Plexo - IP 55 watertight mechanisms - monobloc - surface - switches, pushbuttons and automatic switches - Supplied complete with 2 membranes - plate not fitted.Highlights
Advantages in installation
- 1 reference = 1 complete mechanism ready to install - Water protected product - can be installed in residential and special areas (garages, caves, car parks, workshops, industrial kitchens), as well as in outdoor environments (terraces, gardens, campsites)
Advantages in use
- It can be used as a simple switch, but it can also be associated with another switch to allow the light to be turned on or off from two different points.
Specific features
- Monobloc product for surface installation
specifications
| Cabling System | Bidirectional switch |
|---|---|
| Type of operation | Rocker/button |
| Type of mounting | Base element with full housing, Surface mounted (plaster) |
| Push Button Switch | No |
| Number of rocker arms | 1 |
| Attachment Type | Thread fastening |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | Grey |
| RAL number (similar) | 7046 |
| Switching element color | Grey |
| Label space/print surface | No |
| Lighting | No |
| Suitable for protection grade (IP) | IP55 |
| Impact resistance | IK08 |
| Nominal Voltage | 250 V |
| Nominal current | 10 A |
| Switching current for fluorescent lamps | 10 AX |
|---|---|
| Monitoring contacts | No |
| Connection Method | Plug clamp |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 82 mm |
| Device height | 85 mm |
| Device Depth | 61 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Display of markings on the connection terminals | Yes |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Tube diameter for wall-mounted product | 16-25 mm |
| Feature Name | Feature Value |
|---|---|
| Label space/information surface (EF009419) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Connection type (EF000124) | Screwless terminal |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Surface mounted |
| Type of fastening (EF002442) | Screw mounting |
| Wiring system (EF002960) | Two-way switch |
| Nominal voltage (EF000002) | 250 V |
| Push button switch (EF003895) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Colour of switch operator (EF015518) | Grey |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Heating switch (EF016279) | No |
| Surface protection (EF000139) | Untreated |
| Switching current for fluorescent lamps (EF003888) | 10 AX |
| With mounting plate (EF000118) | No |
| RAL-number (similar) (EF003882) | 7046 |
| Washing machine switch (EF006316) | No |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 61 mm |
| Lighting (EF000134) | No |
| Feedback-signal contact (EF001181) | No |
| Impact strength (EF004293) | IK08 |
| Anti-bacterial treatment (EF023790) | No |
| IFTTT support available (EF011072) | No |
| Device width (EF008808) | 82 mm |
| Assembly arrangement (EF000005) | Basic unit fully enclosed |
| Device height (EF008809) | 85 mm |
| Rated current (EF000227) | 10 A |
| Colour (EF000007) | Grey |
| Method of operation (EF000006) | Rocker |
| Number of rockers (EF003816) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069711L EN_069712L.pdf | 916 Kbytes |
 |
