LEGRAND069705L LEGRAND PL-COMP INT KEY 3POS GR

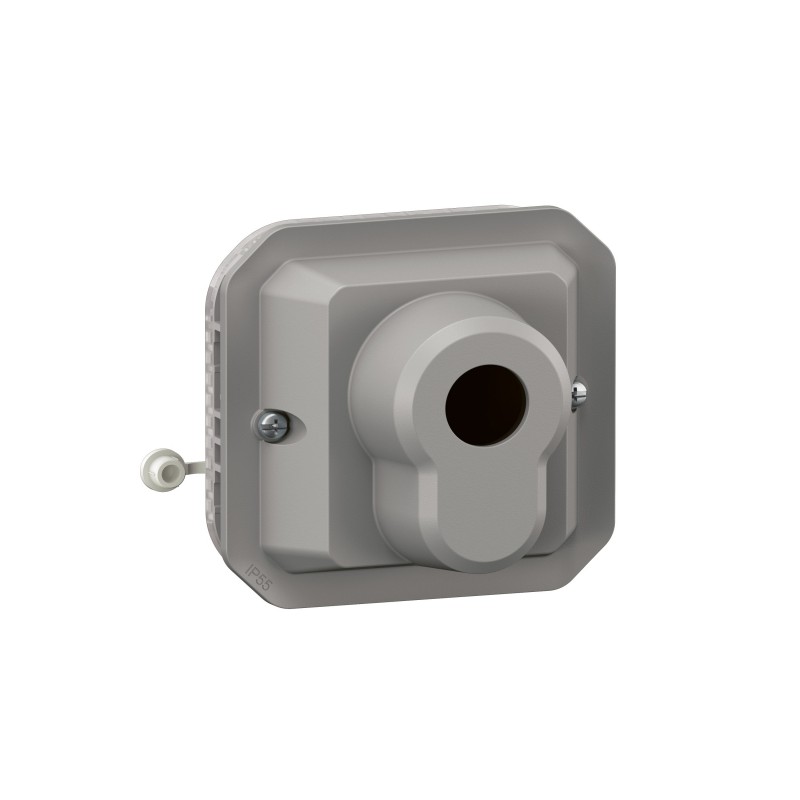

LEGRAND 069705L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069705L LEGRAND PL-COMP INT KEY 3POS GR

Code: 069705L

Manufacturer: LEGRAND

Description:

PL-COMP INT KEY 3POS GR
Switch / Push button with key to equip with European Plexo modular gray cylinder - 3 positions
Plexo modular switch/push button with key - 3pos - Gray

Categories:

  • Domestic switching devices > Push-switch button
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 164,95 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

Key-operated Plexo switch/pushbutton. For installations that require protection against water and dust (IP55). Modular for surface/recessed installation.

Product features
  • 3-position key switch/push button - composable - Gray - To install with a frame for recessed installation or in a surface box
  • IP20 - IK07 - 10A - 250V
  • Investor with OFF position
  • With European standard cylinder: 0 697 95 (with set of 3 keys)
description
3-position Plexo modular key switch - Key switches for European cylinder - The 0 697 095 cylinder comes with a set of 3 keys - Central position extraction - Inverter with OFF position - IP 20 - IK 07 - 10 A - 250 V - Gray. Plexo - composable - switches, pushbuttons and automatic switches - The mechanisms are supplied with a finish front - Installation with surface boxes or with recessed support plates

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

Type of mountingBasic Element with Center Cover Plate, Others
ModelOther
Type of operationKey
Contactless TypeNo
Nominal Voltage250 V
Nominal current10 A
With lightNo
With light sourceNo
With signal lampNo
Monitoring contactsNo
Connection MethodScrew-on terminal
Attachment TypeThread fastening
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishMate
ColourGrey
RAL number (similar)7046
TransparentNo
Label Space/Print AreaNo
Overprintingnone
Suitable for protection grade (IP)IP21
Impact resistanceIK07
Device width70.5 mm
Device height70.5 mm
Device Depth71 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Installation Depth43.5 mm
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsYes
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²

ETIM for 069705L Domestic wiring accessories and controls (EC000029)

Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameType of fastening (EF002442)
Feature valueScrew mounting
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameContactless type (EF015811)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameWith lighting (EF003829)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith light source (EF005905)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value7046
Feature nameModel (EF000010)
Feature valueOther
Feature nameImprint (EF000131)
Feature valueNone
Feature nameWith signal lamp (EF000198)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP21
Feature nameDevice depth (EF008810)
Feature value71 mm
Feature nameFeedback-signal contact (EF001181)
Feature valueNo
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK08
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit with central cover plate
Feature nameDevice width (EF008808)
Feature value70.5 mm
Feature nameDevice height (EF008809)
Feature value70.5 mm
Feature nameRated current (EF000227)
Feature value10 A
Feature nameColour (EF000007)
Feature valueGrey
Feature nameMethod of operation (EF000006)
Feature valueKey

DATASHEET - PDF

Title
Size
Type
069705L EN_069534L.pdf
881 Kbytes
