069694 LEGRAND PL-COMP EMP FRAMEWORK 2ELE HOR BL
069694
LEGRAND
5
PL-COMP EMP FRAMEWORK 2ELE HOR BL

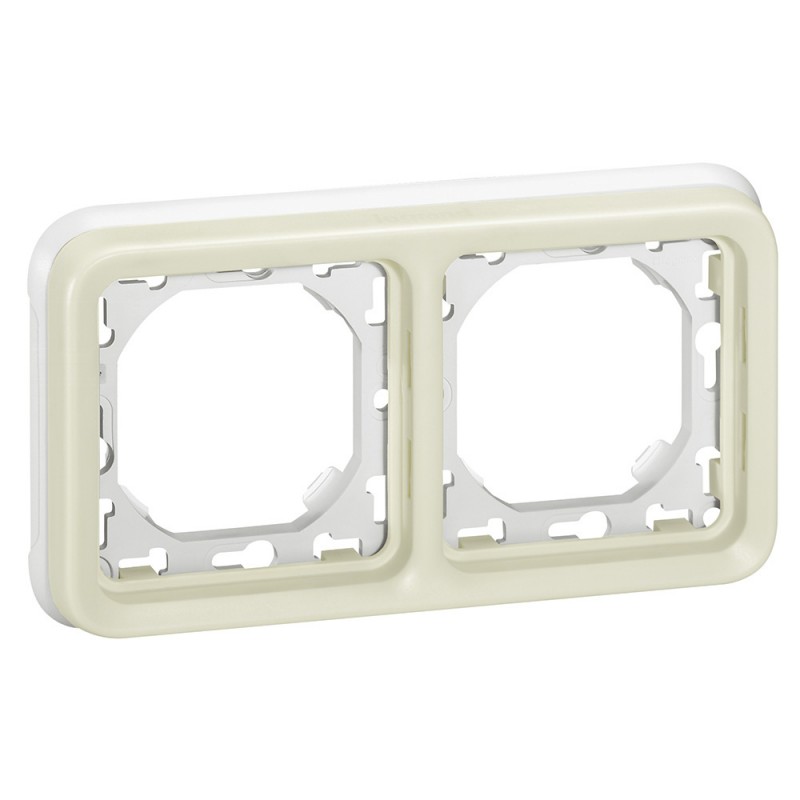

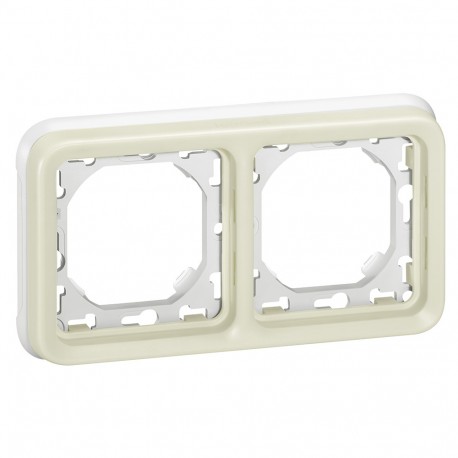

Flush mounting support frame Plexo IP55 - 2 gang horizontal - white
Plexo modular recessed frame white - 2 horizontal elements
Domestic switching devices > Cover frame for domestic switching devices
PLEXO-IDROBOX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)5
- Volume (dm3)2.602
- Weight (g)395.00
- Used for flush-mounting version for German and French standard boxes only
- 71 mm fixing centres
- White - horizontal mounting
- To be equipped with modular Plexo mechanisms
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 86 mm |
| Degree of protection (IP) (EF005474) | IP55 |
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Plastic |
| Suitable for built-in installation (EF006745) | No |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Screw mounting |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Mounting direction (EF003824) | Horizontal |
| With hinged lid (EF000117) | No |
| Surface protection (EF000139) | Untreated |
| Number of units vertical (EF008859) | 1 |
| Number of units (EF000074) | 2 |
| Number of units horizontal (EF008858) | 2 |
| Suitable for subfloor installation duct box (EF005864) | No |
| Built-in height (EF000332) | 0 mm |
| With mounting grid (EF012039) | Yes |
| Suitable for wall duct (EF006572) | No |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK07 |
| Depth (EF000049) | 46 mm |
| Colour (EF000007) | White |
| Flush-mounted installation (EF007517) | Yes |
| Width (EF000008) | 157 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069694 EN_069651.pdf | 929 Kbytes |
 |
