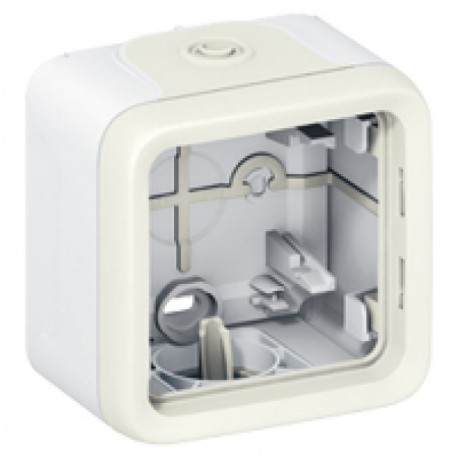

069689 LEGRAND PL-COMP SUP BOX 1ELE WHITE
069689
LEGRAND
10
PL-COMP SUP BOX 1ELE WHITE

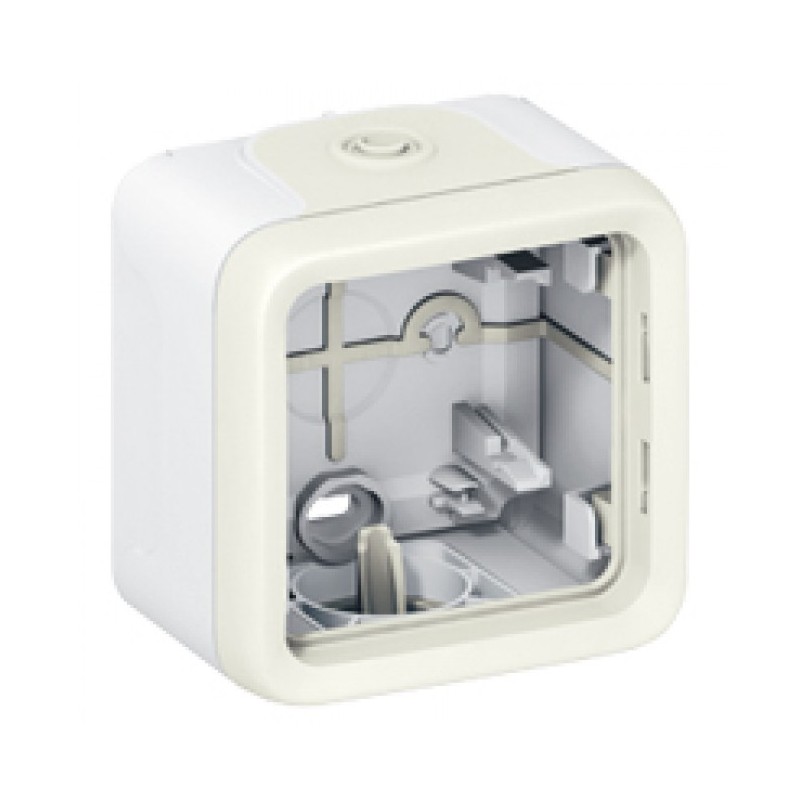

Surface mounting box Plexo IP55 - 1 gang - with membrane glands - white
Box with Plexo modular cones - 1 element - White
Domestic switching devices > Surface mounted housing for flush mounted switching device
PLEXO-IDROBOX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Often bought together
▲Best sellers
▲More info
▲- Pack (number of units)10
- Volume (dm3)5.253
- Weight (g)919.00
- Equipped with removable membrane glands
- Direct entry of cables (no need to be cut)
- White
- To be equipped with modular Plexo mechanisms
| Feature Name | Feature Value |
|---|---|
| With duct entry (EF007953) | Yes |
| Height (EF000040) | 84 mm |
| Shock resistant (EF000084) | Yes |
| Degree of protection (IP) (EF005474) | IP55 |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Suitable for modular domestic switching devices (EF009574) | No |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | No |
| With cover frame (EF003807) | No |
| Mounting direction (EF003824) | Horizontal and vertical |
| Surface protection (EF000139) | Untreated |
| Number of units (EF000074) | 1 |
| RAL-number (similar) (EF003882) | 9003 |
| Shape (EF000051) | Square |
| With screw gland entry (EF006751) | No |
| Depth (EF000049) | 53 mm |
| Assembly arrangement (EF000005) | Surface mounted box |
| Colour (EF000007) | White |
| With cable entry (EF000325) | Yes |
| Width (EF000008) | 80 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069689 EN_069651.pdf | 929 Kbytes |
 |
