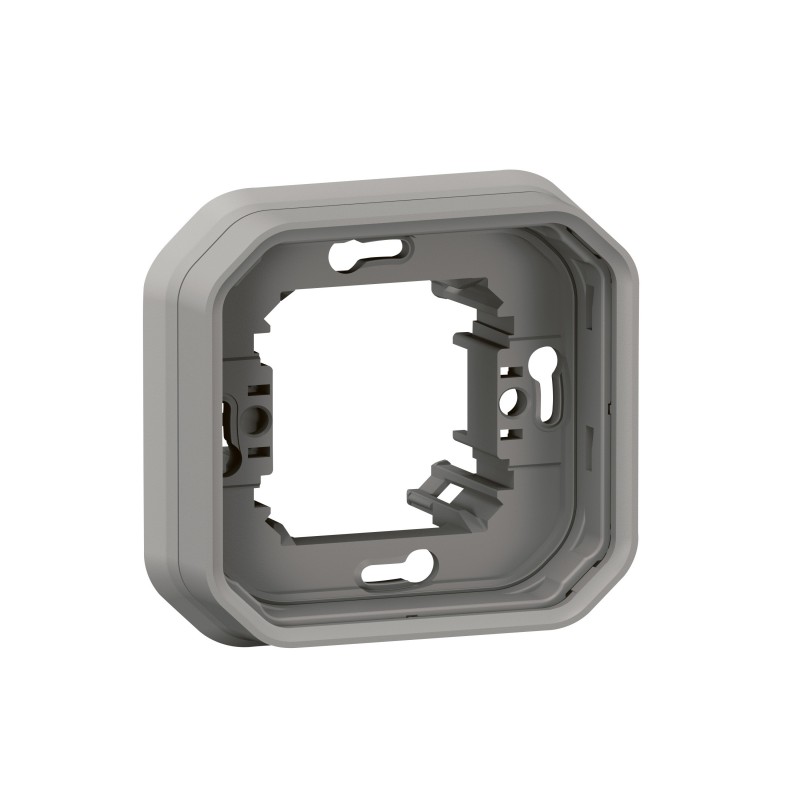

069681L LEGRAND PL-COMP EMP MARCO 1 ELE GREY
069681L
LEGRAND
10
PL-COMP EMP MARCO 1 ELE GREY
Plexo modular recessed frame grey - 1 element
Plexo modular recessed frame - 1 element - Gray
Domestic switching devices > Cover frame for domestic switching devices
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Overview
Recessed frame for Plexo composable mechanisms.
Product features
- Plexo composable recessed frame - Gray
- IP55 - IK08 - 1 element
- For the installation of recessed mechanisms with Batibox enclosures
description
Recessed frame 1 element Plexo gray. Plate supports - For installation of recessed mechanisms with Batibox 1 element boxes - Optional claw mounting ref.0 697 96L on 1 element support - IP 55 watertight mechanisms - modular - Modular mechanisms accepted - IP 55 - IK 08Highlights
Advantages in use
- For composable mechanisms
specifications
| Number of Units | 1 |
|---|---|
| Assembly Direction | Horizontal and vertical |
| Number of horizontal units | 1 |
| Number of vertical units | 1 |
| Number of modules horizontally (in case of modular design) | 2 |
| Number of vertical modules (in case of modular design) | 1 |
| With mounting frame | No |
| Flush mounting | Yes |
| Suitable for underfloor ducting | No |
| Suitable for device installation conduit | No |
| Label Space/Print Area | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | No treatment |
|---|---|
| Surface Finish | Mate |
| Colour | Grey |
| RAL number (similar) | 7046 |
| Transparent | No |
| With flip-top lid | No |
| Attachment Type | Thread fastening |
| Width | 85 mm |
| Height | 85 mm |
| Depth | 43.5 mm |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Wood species in Latin | Not applicable |
| Wood certification (list) | Not applicable |
| Climate zone of the origin of the wood | Not applicable |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 85 mm |
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Screw mounting |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Number of modules vertical (module system) (EF009572) | 1 |
| Number of modules horizontal (module system) (EF009571) | 2 |
| Mounting direction (EF003824) | Horizontal and vertical |
| With hinged lid (EF000117) | No |
| Surface protection (EF000139) | Untreated |
| Number of units vertical (EF008859) | 1 |
| Number of units (EF000074) | 1 |
| RAL-number (similar) (EF003882) | 7046 |
| Number of units horizontal (EF008858) | 1 |
| Suitable for subfloor installation duct box (EF005864) | No |
| With mounting grid (EF012039) | No |
| Suitable for wall duct (EF006572) | No |
| Anti-bacterial treatment (EF023790) | No |
| Depth (EF000049) | 43.5 mm |
| Colour (EF000007) | Grey |
| Flush-mounted installation (EF007517) | Yes |
| Width (EF000008) | 85 mm |
