LEGRANDPLEXO-IDROBOX MECHANISMS069680 LEGRAND PL-COMP SUP BOX 3ELE HOR GREY

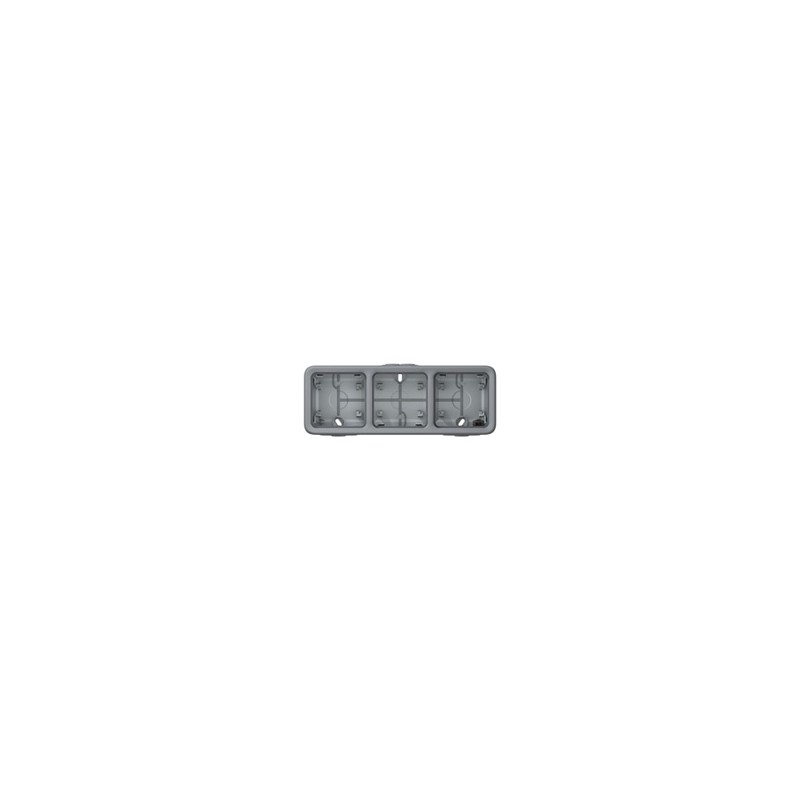

LEGRAND 069680 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069680 LEGRAND PL-COMP SUP BOX 3ELE HOR GREY

Code: 069680

Manufacturer: LEGRAND

Description:

PL-COMP SUP BOX 3ELE HOR GREY
Box with cones Plexus modular grey - 3 horizontal elements
Box with Plexo modular gray cones - 3 horizontal elements

Categories:

  • Domestic switching devices > Surface mounted housing for flush mounted switching device
  • LEGRAND > PLEXO-IDROBOX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Product features

Boxes with cones 2 and 3 elements - open Boxes, with no separating wall so as to facilitate wiring and to receive the bases pre-wired 3-elements - 2 cones superior, 1 input - 1 cone bottom, 2 outputs - Grey

General characteristics

Plexus - Mechanisms watertight IP 55 - sectional - surface area - boxes and holders for plate - Boxes, and brackets with front-finish included - audible Click to ensure that the plate has been set correctly - Support mechanisms modular - Boxes that can be equipped with a connection terminal Nylbloc automatic, 2 drivers to a possible connection additional - IP 55 - IK 07

ETIM for 069680 Domestic wiring accessories and controls (EC000080)

Feature nameWith duct entry (EF007953)
Feature valueYes
Feature nameHeight (EF000040)
Feature value84 mm
Feature nameShock resistant (EF000084)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameSuitable for modular domestic switching devices (EF009574)
Feature valueNo
Feature nameNumber of modules (module system) (EF009573)
Feature value3
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameWith cover frame (EF003807)
Feature valueNo
Feature nameMounting direction (EF003824)
Feature valueHorizontal
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameNumber of units (EF000074)
Feature value3
Feature nameShape (EF000051)
Feature valueRectangular
Feature nameWith screw gland entry (EF006751)
Feature valueNo
Feature nameDepth (EF000049)
Feature value53 mm
Feature nameAssembly arrangement (EF000005)
Feature valueSurface mounted box
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWith cable entry (EF000325)
Feature valueYes
Feature nameWidth (EF000008)
Feature value222 mm

DATASHEET - PDF

Title
Size
Type
069680 EN_069651.pdf
929 Kbytes
