LEGRANDAUTONOMOUS LIGHTING MANAGEMENT069617 LEGRAND PL-COMP E/S CREPUSC 1400W WHITE
LEGRAND 069617 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

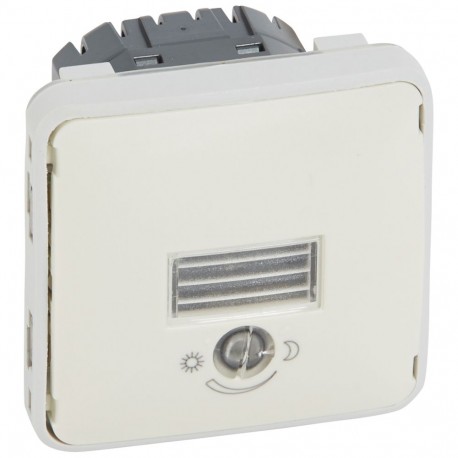

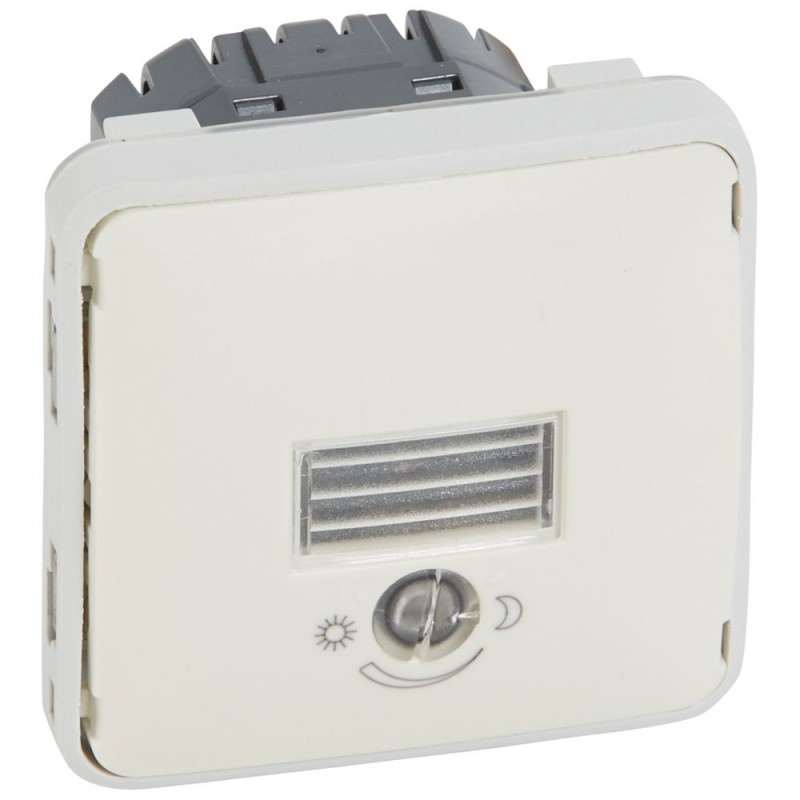

069617 LEGRAND PL-COMP E/S CREPUSC 1400W WHITE

Code: 069617

Manufacturer: LEGRAND

Description:

PL-COMP E/S CREPUSC 1400W WHITE
Inter. twilight Plexus modular white - 1400 W
Plexo Twilight Switch Modular White - 1400W

Categories:

  • Domestic switching devices > Twilight switch
  • LEGRAND > AUTONOMOUS LIGHTING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Product features

On twilight - IP 55 - IK 07 - Clamps with screws and twilight Switches - On the light from dusk and off at dawn - Set monobloc with photoelectric cell integrated - 1400 W incandescent - 400 VA fluorescent - brightness Threshold adjustable from 0,5 to 1500 lux - White

General characteristics

Plexus - Mechanisms watertight IP 55 - composable - bases of current and differential bases - The mechanisms are supplied with front finishing - Installation boxes for surface or with bracket plates-in wardrobes

ETIM for 069617 Domestic wiring accessories and controls (EC000189)

Feature nameHeight (EF000040)
Feature value64 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameMax. switching current (resistive load) (EF001325)
Feature value5.6 A
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameMax. switching power (EF001503)
Feature value1400 W
Feature nameType of sensor (EF003948)
Feature valueBuilt-in light sensor
Feature nameSwitching-off brightness (EF003825)
Feature value0.5 lx
Feature nameSwitch-off delay (EF000194)
Feature value45 s
Feature nameEngaging brightness (EF003841)
Feature value0.5 lx
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameOperating temperature (EF002393)
Feature value-5 °C
Feature nameSwitching-on delay (EF000193)
Feature value45 s
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameDepth (EF000049)
Feature value47 mm
Feature nameSwivelling (EF000301)
Feature valueNo
Feature nameColour (EF000007)
Feature valueWhite
Feature nameContacts (EF000029)
Feature value1 breaker contact (NC)
Feature nameWidth (EF000008)
Feature value64 mm

DATASHEET - PDF

Title
Size
Type
069617 EN_069517.pdf
597 Kbytes
