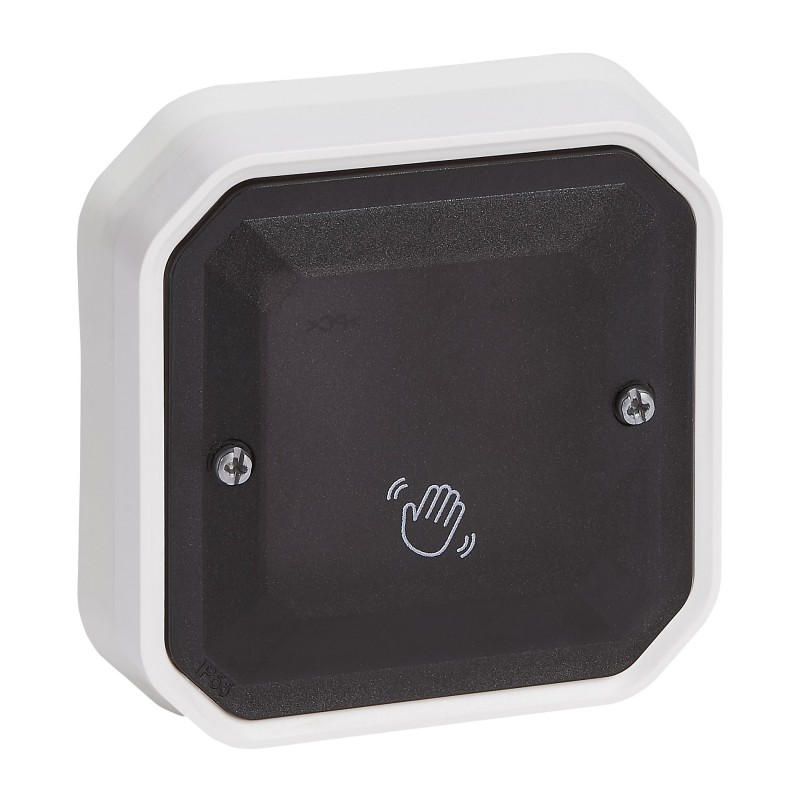

069595L LEGRAND PL-COMP INT S/CONTACT DOOR
069595L
LEGRAND
5
PL-COMP INT S/CONTACT DOOR
Plexo Modular Door Non-Contact Switch - Gray
Domestic switching devices > Electronic switch
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲| Type of mounting | Basic Element with Full Cover Plate, Others |
|---|---|
| Model | Relay |
| Load Type | Other |
| Input Extensions | No |
| Luminous value memory | No |
| Can be used with a button | No |
| Usable with motion detector | No |
| Usable with presence detector | No |
| Usable with timer | No |
| Usable with radio button | No |
| Usable with IR button | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | Black |
| Transparent | No |
| Nominal Voltage | 12 V |
| Switching power | 0-24 W |
| HVAC switching capability | 0-24 W |
| Attachment Type | Screw mounting |
| Min. depth of the recessed box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Width | 70.5 mm |
| Height | 70.5 mm |
|---|---|
| Depth | 27.5 mm |
| Impact resistance | IK06 |
| Protection Class (IP) | IP55 |
| Operating Temperature | -5-40 °C |
| Storage temperature | -25-70 °C |
| Standby consumption | 3 mA |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Connection Method | Screw-on terminal |
| Number of terminals | 4 |
| Terminal capacity | 1.5-6 mm² |
| Core cross-section | 1.5-1.5 mm² |
| Label Space/Print Area | No |
| Contains battery and/or accumulator | No |
| Connected Object | No |
| Method of operation | Net |
| Programming medium | Not applicable |
| With voice command | No |
| Programmable | No |
| Connection Protocol Interoperability | No |
| Possibility of connection via Internet box | No |
| Product usage function | Shutter management |
| Feature Name | Feature Value |
|---|---|
| Switch capacity (EF005233) | 0 W |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Mounting with screw |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Other |
| Nominal voltage (EF000002) | 12 V |
| Transparent (EF006243) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Applicable with infrared button (EF003908) | No |
| Applicable with presence indicator (EF003909) | No |
| Type of load (EF001508) | Other |
| Applicable with movement sensor (EF003906) | No |
| Applicable with transmission button (EF003907) | No |
| Min. depth of built-in installation box (EF012278) | 35 mm |
| Light value memory (EF003867) | No |
| Switch capacity HVAC (EF003887) | 0 W |
| Surface protection (EF000139) | Untreated |
| Model (EF000010) | Relay |
| IFTTT support available (EF011072) | No |
| Applicable with time switch/timer (EF003911) | No |
| Assembly arrangement (EF000005) | Basic unit with full cover plate |
| Colour (EF000007) | Black |
| Substation input (EF003876) | No |
| Applicable with button (EF003910) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069595L EN_069595L.pdf | 524 Kbytes |
 |
