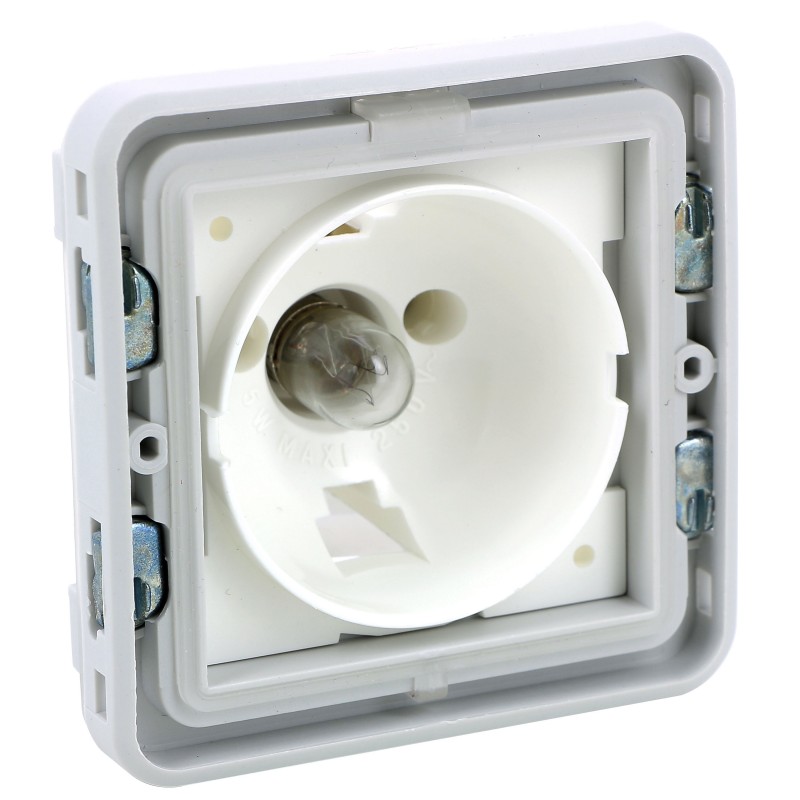

069583 LEGRAND PL-COMP E/S PILOT BEACON

Code: 069583

Manufacturer: LEGRAND

Description:

PL-COMP E/S PILOT BEACON
Pilot beacon Plexus modular grey/white - light lamp E10 - 230 V
Plexo modular gray/white beacon pilot for E10 lamp - 230V

Categories:

  • Domestic switching devices > Information light signal for domestic switching devices
  • LEGRAND > PLEXO-IDROBOX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Beacon and signaling - IP 55 - IK 07 pilot - Base for lamp E10 - 230 V - 5 W supplied (ref. 0 898 40) - Terminal screws - Compatible with diffusers ref. 0 695 88/89/90/91 - Grey/White

General characteristics

Plexus - Mechanisms watertight IP 55 - composable - emergency cutting, sign-posting, blinds, thermostat

ETIM for 069583 Domestic wiring accessories and controls (EC000064)

Feature nameMax. lamp power (EF000260)
Feature value4 W
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueGlossy
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameNominal voltage (EF000002)
Feature value230 V
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameTransparent (EF006243)
Feature valueYes
Feature nameColour light source (EF001402)
Feature valueWhite
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameWith fixed symbol/imprint (EF007949)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value7035
Feature nameWith flashlight (EF006575)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameDevice depth (EF008810)
Feature value42 mm
Feature nameDevice width (EF008808)
Feature value64 mm
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit
Feature nameApplication as button (EF003912)
Feature valueNo
Feature nameDevice height (EF008809)
Feature value64 mm
Feature nameLamp holder (EF000048)
Feature valueE10
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWith exchangeable symbol (EF006748)
Feature valueYes
