LEGRAND069580L LEGRAND PL-COMP ADAP MOSAIC W/GR CAP

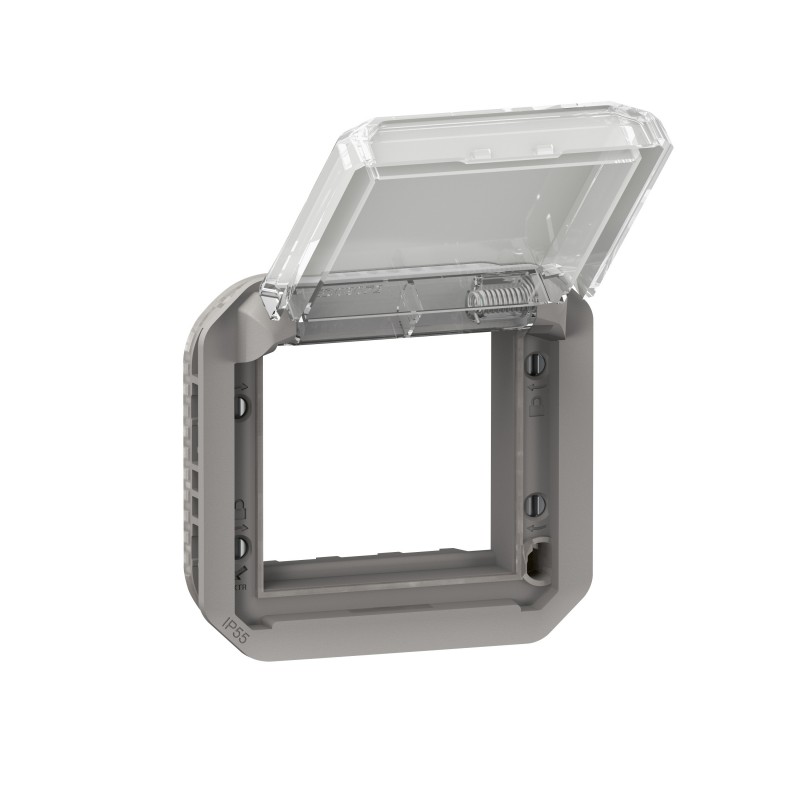

LEGRAND 069580L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069580L LEGRAND PL-COMP ADAP MOSAIC W/GR CAP

Code: 069580L

Manufacturer: LEGRAND

Description:

PL-COMP ADAP MOSAIC W/GR CAP
Plexo modular adapter for Mosaic function - Gray - transparent lid
Plexo modular adapter for Mosaic function - Transparent lid - Gray

Categories:

  • Domestic switching devices > Transition adapter for domestic switching devices
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 225,27 €

Unit Price: 22,527 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

Waterproof adapter with IP55 for installations that need protection against water and dust. Allows you to adapt all the Mosaic functions of 2 modules.

Product features
  • Composable Plexo Adapter for Mosaic Function - Gray
  • IP55 - IK08
  • With lid
  • Supports Mosaic 2 module mechanisms (RJ45 jack, phone jack, coded plug, ...) except special function.
  • To be installed with a frame for flush-mounted installation or in a surface box
description
Mosaic Plexo Adapter - Gray - Composable - Plexo waterproof adapters - IP 55 - IK 08 - Allows to adapt all Mosaic functions 2 modules for use IP 55 - Transparent cover adapter - accessories.

specifications

ColourGrey
RAL number (similar)7040
With flip-top lidYes
With text boxNo
LockableNo
DimensionsSQ70/SQ70
Device width70.5 mm
Device height70.5 mm
Device Depth25 mm
Impact resistanceNot applicable
Protection Class (IP)Not applicable
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Halogen-freeYes
Antibacterial treatmentNo
Label Space/Print AreaNo
Type of mountingOther

ETIM for 069580L Domestic wiring accessories and controls (EC002250)

Feature nameRAL-number (similar) (EF003882)
Feature value7040
Feature nameWith label space (EF003456)
Feature valueNo
Feature nameLockable (EF000113)
Feature valueNo
Feature nameDevice depth (EF008810)
Feature value25 mm
Feature nameDevice width (EF008808)
Feature value70.5 mm
Feature nameDevice height (EF008809)
Feature value70.5 mm
Feature nameDimensions (EF002567)
Feature valueSQ70 / SQ70
Feature nameWith hinged lid (EF000117)
Feature valueYes
Feature nameColour (EF000007)
Feature valueGrey

DATASHEET - PDF

Title
Size
Type
069580L EN_069580L.pdf
777 Kbytes
