LEGRANDPLEXO-IDROBOX MECHANISMS069554 LEGRAND PL-COMP BASE I/O TV/R-SAT UNIC

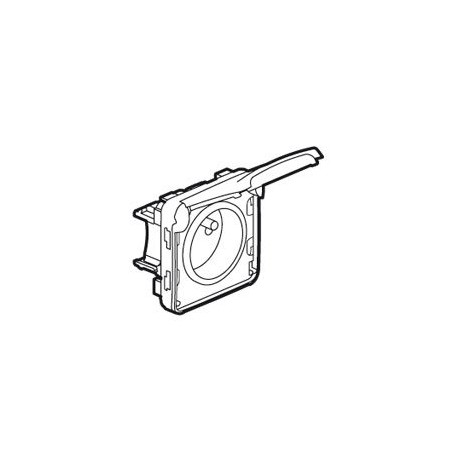

LEGRAND 069554 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069554 LEGRAND PL-COMP BASE I/O TV/R-SAT UNIC

Code: 069554

Manufacturer: LEGRAND

Description:

PL-COMP BASE I/O TV/R-SAT UNIC
Base TV/R-SAT - Plexus - unique - 1.5 dB - 2400 MHz - gray
Unique TV/R-SAT Modular Plexus Base - 1.5 dB - 2400 MHz - Gray

Categories:

  • Antenna and satellite technique > Antenna socket
  • LEGRAND > PLEXO-IDROBOX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Product features

Foundation TV/R-SAT - TV: 5-68/120-862 MHz R: 87.5-108 MHz - SAT: 950-2400 MHz - adapted to the reception of DTT, satellite and cable television - compatible with Ultra High Definition - a single, shielded, Class A, compatible with 4G LTE - 1.5 dB - gray

General characteristics

Plexus - bases of tv - The mechanisms are supplied with front finish, to equip with surface box or recessing frame - For installations of TV or radio and satellite tv (with demodulator individual) Bases of armoured - TV/R: male connector (IEC 9,5 mm) - - SAT: female connector (IEC 9,5 mm) - coaxial Cable recommended: 17/19 VATC

ETIM for 069554 Antenna and satellite receivers (EC000439)

Feature nameType of socket outlet (EF003497)
Feature valueTV
Feature nameTap loss at 860 MHz (EF000540)
Feature value1.5 dB
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameDAB+ (EF011633)
Feature valueNo
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameMaterial quality (EF001257)
Feature valueUrea formaldehyde
Feature nameTap loss at 2150 MHz (EF003499)
Feature value2 dB
Feature nameMin. depth of built-in installation box (EF012278)
Feature value29 mm
Feature nameSuitable for cable modem (EF001547)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameSuitable for remote power supply (EF001548)
Feature valueYes
Feature nameNumber of outlets (EF000538)
Feature value2
Feature nameModel (EF000010)
Feature valueEnd socket
Feature nameCover (EF000055)
Feature valueCentral cover plate
Feature nameDevice depth (EF008810)
Feature value51 mm
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameDevice width (EF008808)
Feature value60 mm
Feature nameDevice height (EF008809)
Feature value60 mm
Feature nameColour (EF000007)
Feature valueGrey
