LEGRAND069550L LEGRAND PL-COMP I/O OUTPUT GR CABLES

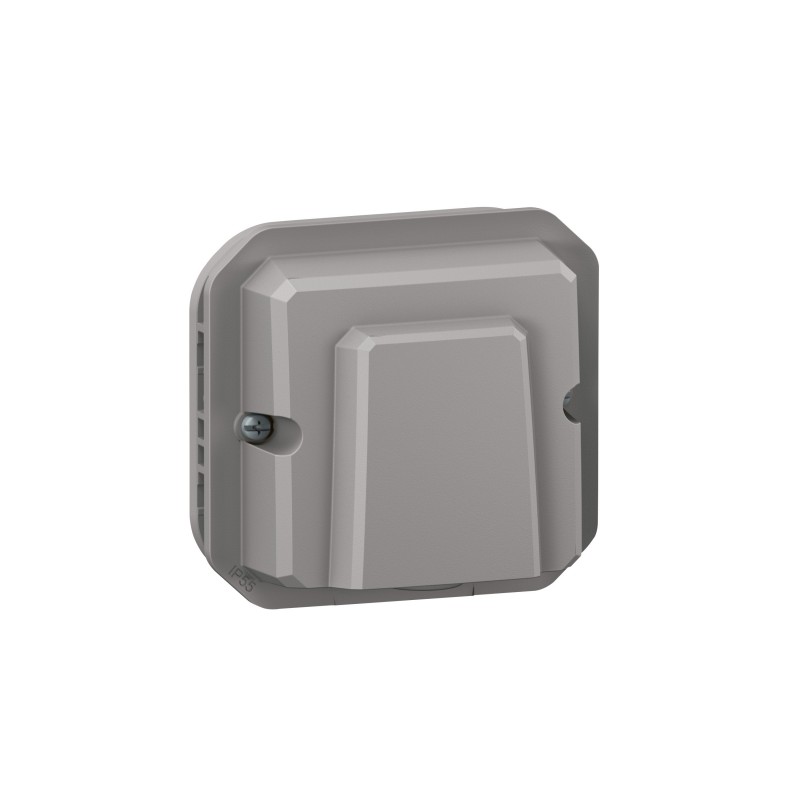

LEGRAND 069550L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069550L LEGRAND PL-COMP I/O OUTPUT GR CABLES

Code: 069550L

Manufacturer: LEGRAND

Description:

PL-COMP I/O OUTPUT GR CABLES
Plexo modular cable outlet - grey - with cable tie
Plexo modular cable outlet - cable tie - Gray

Categories:

  • Domestic switching devices > Appliance connection box
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 196,42 €

Unit Price: 39,285 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

The ideal solution for connecting devices supplied without a plug and that need protection against water and dust (IP55). For recessed installations.

Product features
  • Plexo cable output - composable - Grey
  • IP55 - IK08 - 16A - 250V
  • With cable ties Ø5mm to 13mm (3 x 2.5mm²)
description
Plexo modular cable outlet - Gray - For recessed or surface installation in frame or box - IP 55 - IK 08 - 16A - 250V - Equipped with cable ties from Ø5 to 13mm (3 x 2.5mm²) - Gray

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

Type of mountingSurface mounted (plaster)
Connection SystemNo terminal
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
ColourGrey
RAL number (similar)7046
Suitable for protection grade (IP)IP55
Device width82.1 mm
Device height84.6 mm
Device Depth74.51 mm
Installation Depth24.2 mm
Impact resistanceIK08
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Antibacterial treatmentNo

ETIM for 069550L Domestic wiring accessories and controls (EC000450)

Feature nameRAL-number (similar) (EF003882)
Feature value7046
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameDevice depth (EF008810)
Feature value74.51 mm
Feature nameDevice width (EF008808)
Feature value82.1 mm
Feature nameDevice height (EF008809)
Feature value84.6 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameConnection system (EF002649)
Feature valueWithout clamp

DATASHEET - PDF

Title
Size
Type
069550L EN_069848L.pdf
840 Kbytes
