LEGRAND069547L LEGRAND PL-COMP I/O PULS EMERG 3A CUFF

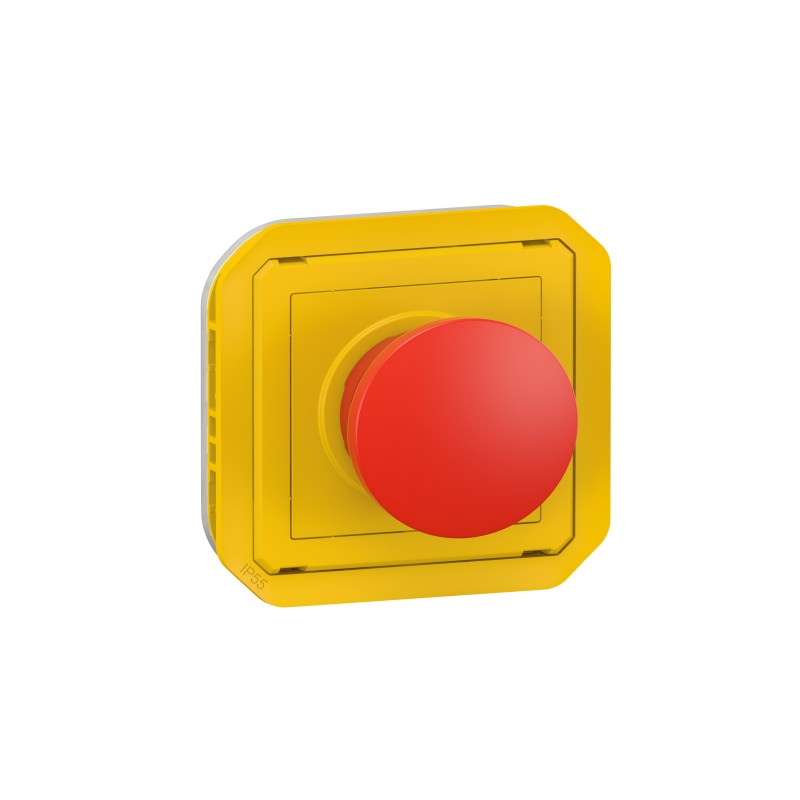

LEGRAND 069547L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069547L LEGRAND PL-COMP I/O PULS EMERG 3A CUFF

Code: 069547L

Manufacturer: LEGRAND

Description:

PL-COMP I/O PULS EMERG 3A CUFF
Plexo composable emergency button – fist stop
Plexo modular emergency push button - fist strike stop

Categories:

  • Low-voltage industrial components > Emergency stop complete
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 118,55 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

This button allows an emergency power cut. Includes "emergency cut" labels. Modular product to complete with surface box or recessed frame. Contact NC.

Product features
  • Plexo Composable Emergency Push Button - Grey/Yellow - To be installed with a frame for recessed installation or in a surface box.
  • IP55 - 3A - 250V - IK07
  • Emergency stop button Grip - 1 NC contact - Unipolar
  • Yellow lid - Red button
  • Supplied with "emergency stop" label in 4 languages
description
FLEXO composable surface emergency push button. Emergency cut 3A - 250V - Includes "emergency cut" labels in 4 languages - Yellow cover - Red button - Emergency stop button with fist stop - NC contact - Grey/yellow. Plexus - Waterproof mechanisms IP 55 - composable - surface or recessed - emergency cut, beacon, blinds, thermostat.

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

Unlock TypeOther
Number of Normally Closed Contacts1
Number of contacts normally opened0
Protection Class (IP)IP55
With lightNo
Hole diameter22.5 mm
Auxiliary Circuit Connection TypeThreaded connection
Width70.5 mm
Height70.5 mm
Depth65 mm
Impact resistanceIK07
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
Nominal Voltage220-250 V
Terminal capacity1.5-2.5 mm²

ETIM for 069547L Low-voltage industrial controls and switchgear (EC002034)

Feature nameConnection type auxiliary circuit (EF006820)
Feature valueScrew connection
Feature nameWith lighting (EF003829)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameHole diameter (EF000079)
Feature value22.5 mm
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value1
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameUnlocking method (EF001403)
Feature valueOther

DATASHEET - PDF

Title
Size
Type
069547L EN_069547L.pdf
904 Kbytes
