LEGRAND069530L LEGRAND PL-COMP I/O INT 2P 10A GREY

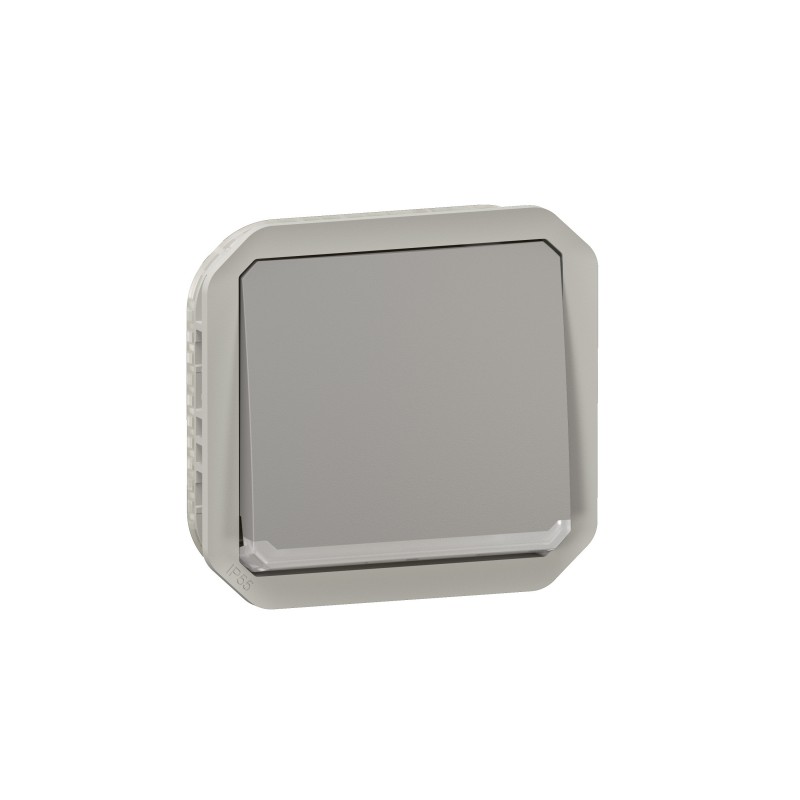

LEGRAND 069530L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069530L LEGRAND PL-COMP I/O INT 2P 10A GREY

Code: 069530L

Manufacturer: LEGRAND

Description:

PL-COMP I/O INT 2P 10A GREY
Plexo bipolar switch - modular gray - 10 AX
Plexo modular bipolar switch - 10AX - Gray

Categories:

  • Domestic switching devices > Installation switch
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 287,02 €

Unit Price: 28,702 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

Plexo's 10A bipolar switch allows lighting to be controlled in both live and neutral cut-off, instead of needing protection against water and dust (IP55). Modular for surface or recessed installation.

Product features
  • Plexo bipolar switch composable - Gray - To install with a frame for recessed installation or in surface box
  • IP55 - IK08 - 10AX - 250V
  • Automatic terminal
  • Mechanism supplied with trim
  • Cables with 0 694 96L lamp or 0 694 98L pilot
description
Bipolar switch 10AX Plexo modular - Gray - Switches 10AX - 250 V~ - IP 55 - IK 08 - Composable - switches, pushbuttons and automatic switches - The mechanisms are supplied with a finish front - Installation with surface boxes or with recessed support plates - Automatic terminals.

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

Cabling System2-pole switch
Type of operationRocker/button
Type of mountingBasic Element with Center Cover Plate, Others
Push Button SwitchNo
Number of rocker arms1
Attachment TypeThread fastening
With mounting plateNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishMate
ColourGrey
RAL number (similar)7046
Switching element colorGrey
Label space/print surfaceNo
Suitable for protection grade (IP)IP55
Impact resistanceIK08
Nominal Voltage250 V
Nominal current10 A
Switching current for fluorescent lamps10 AX
Monitoring contactsNo
Connection MethodPlug clamp
Heating switchNo
Washing machine switchNo
Device width70.5 mm
Device height70.5 mm
Device Depth46 mm
Installation Depth28.5 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
frequency50-60 Hz
Display of markings on the connection terminalsYes
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²

ETIM for 069530L Domestic wiring accessories and controls (EC001590)

Feature nameLabel space/information surface (EF009419)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameConnection type (EF000124)
Feature valueScrewless terminal
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameType of fastening (EF002442)
Feature valueScrew mounting
Feature nameWiring system (EF002960)
Feature value2-pole switch
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature namePush button switch (EF003895)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameColour of switch operator (EF015518)
Feature valueGrey
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameHeating switch (EF016279)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameSwitching current for fluorescent lamps (EF003888)
Feature value10 AX
Feature nameBuilt-in depth (EF000218)
Feature value28.5 mm
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value7046
Feature nameWashing machine switch (EF006316)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameDevice depth (EF008810)
Feature value46 mm
Feature nameFeedback-signal contact (EF001181)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK08
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameDevice width (EF008808)
Feature value70.5 mm
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit with central cover plate
Feature nameDevice height (EF008809)
Feature value70.5 mm
Feature nameRated current (EF000227)
Feature value10 A
Feature nameColour (EF000007)
Feature valueGrey
Feature nameMethod of operation (EF000006)
Feature valueRocker
Feature nameNumber of rockers (EF003816)
Feature value1

DATASHEET - PDF

Title
Size
Type
069530L EN_069712L.pdf
916 Kbytes
