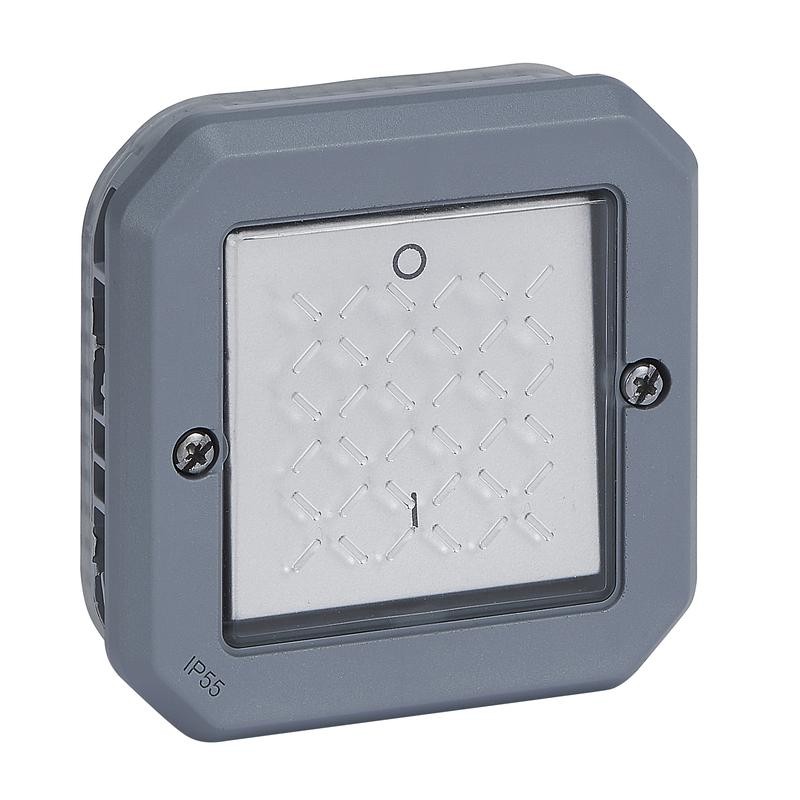

069527L LEGRAND PL-COMP I/O INT 2P 16A GREY
069527L
LEGRAND
10
PL-COMP I/O INT 2P 16A GREY
Plexo bipolar switch - 16A - modular Gray
Plexo modular bipolar switch - 16A - Gray
Domestic switching devices > Installation switch
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Overview
Plexo's 16A bipolar switch allows lighting to be controlled in both live and neutral cut-off, instead of needing protection against water and dust (IP55). Modular for surface or recessed installation.
Product features
- Plexo bipolar switch composable - Gray - To install with a frame for recessed installation or in surface box
- IP55 - IK08 - 16A - 250V
- Automatic terminal
- Mechanism supplied with trim
- Grey
description
Bipolar switch 16A Plexo modular - Gray. Switches 16A - 250 V~ - IP 55 - IK 08 - Composable - switches, pushbuttons and automatic switches - The mechanisms are supplied with a finish front - Installation with surface boxes or with recessed support plates - Automatic terminals.Highlights
Advantages in installation
- Installation of the mechanism on the surface or recessed with box or frame
specifications
| Cabling System | 2-pole switch |
|---|---|
| Type of operation | Rocker/button |
| Type of mounting | Basic Element with Center Cover Plate, Others |
| Number of modules (in case of modular design) | 2 |
| Push Button Switch | No |
| Number of rocker arms | 1 |
| Attachment Type | Thread fastening |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | Grey |
| RAL number (similar) | 7046 |
| Switching element color | aluminium |
| Label space/print surface | No |
| Lighting | No |
| Suitable for protection grade (IP) | IP55 |
| Impact resistance | IK08 |
| Nominal Voltage | 250 V |
| Nominal current | 16 A |
|---|---|
| Switching current for fluorescent lamps | 16 AX |
| Monitoring contacts | No |
| Connection Method | Screw-on terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 70.5 mm |
| Device height | 70.5 mm |
| Device Depth | 45 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | Yes |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Label space/information surface (EF009419) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Connection type (EF000124) | Screwed terminal |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Other |
| Type of fastening (EF002442) | Screw mounting |
| Wiring system (EF002960) | 2-pole switch |
| Nominal voltage (EF000002) | 250 V |
| Push button switch (EF003895) | No |
| Number of modules (module system) (EF009573) | 2 |
| Compatible with Apple HomeKit (EF014925) | No |
| Colour of switch operator (EF015518) | Aluminium |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Heating switch (EF016279) | No |
| Surface protection (EF000139) | Untreated |
| Switching current for fluorescent lamps (EF003888) | 16 AX |
| With mounting plate (EF000118) | No |
| RAL-number (similar) (EF003882) | 7046 |
| Washing machine switch (EF006316) | No |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 45 mm |
| Lighting (EF000134) | No |
| Feedback-signal contact (EF001181) | No |
| Impact strength (EF004293) | IK08 |
| Anti-bacterial treatment (EF023790) | No |
| IFTTT support available (EF011072) | No |
| Device width (EF008808) | 70.5 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 70.5 mm |
| Rated current (EF000227) | 16 A |
| Colour (EF000007) | Grey |
| Method of operation (EF000006) | Rocker |
| Number of rockers (EF003816) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069527L EN_069527L.pdf | 688 Kbytes |
 |
