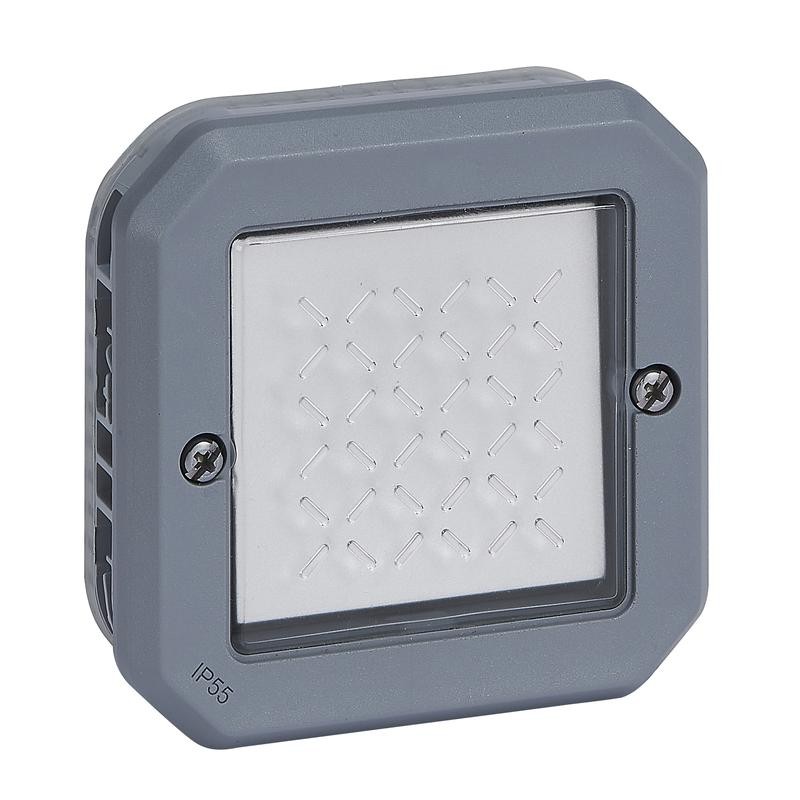

069523L LEGRAND PL-COMP I/O CONM 1P 16A GREY
069523L
LEGRAND
5
PL-COMP I/O CONM 1P 16A GREY
Plexo Switch - IP 55-IK 08 - 16 A - 250V~ - gray
Plexo modular switch IP55 -IK08-16A-Gray
Domestic switching devices > Installation switch
Home > LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Overview
The 16A Plexo switch allows lighting to be controlled from two different control points, where water and dust protection (IP55) is required. Composable product for surface or recessed installation.
Product features
- Plexo gray composable computator - To install with a frame for recessed installation or in a surface box.
- IP55 - IK08 - 16AX - 250V
- Automatic terminal
- Mechanism supplied with trim
description
16AX Plexo gray composable switch. Switches 16A - 250 V~ - IP 55 - IK 08 - switches, pushbuttons and automatic switches - The mechanisms are supplied with a finish front - Installation with surface boxes or with recessed support plates - Automatic terminals.Highlights
Advantages in installation
- Installation of the mechanism on the surface or recessed with box or frame
specifications
| Cabling System | Bidirectional switch |
|---|---|
| Type of operation | Rocker/button |
| Type of mounting | Basic Element with Center Cover Plate, Others |
| Push Button Switch | No |
| Number of rocker arms | 1 |
| Attachment Type | Thread fastening |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | Grey |
| RAL number (similar) | 7046 |
| Switching element color | aluminium |
| Label space/print surface | No |
| Lighting | No |
| Suitable for protection grade (IP) | IP55 |
| Impact resistance | IK08 |
| Nominal Voltage | 250 V |
| Nominal current | 16 A |
| Switching current for fluorescent lamps | 16 AX |
|---|---|
| Monitoring contacts | No |
| Connection Method | Screw-on terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 70.5 mm |
| Device height | 70.5 mm |
| Device Depth | 45 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | Yes |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Label space/information surface (EF009419) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Connection type (EF000124) | Screwed terminal |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Other |
| Type of fastening (EF002442) | Screw mounting |
| Wiring system (EF002960) | Two-way switch |
| Nominal voltage (EF000002) | 250 V |
| Push button switch (EF003895) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Colour of switch operator (EF015518) | Aluminium |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Heating switch (EF016279) | No |
| Surface protection (EF000139) | Untreated |
| Switching current for fluorescent lamps (EF003888) | 16 AX |
| With mounting plate (EF000118) | No |
| RAL-number (similar) (EF003882) | 7046 |
| Washing machine switch (EF006316) | No |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 45 mm |
| Lighting (EF000134) | No |
| Feedback-signal contact (EF001181) | No |
| Impact strength (EF004293) | IK08 |
| Anti-bacterial treatment (EF023790) | No |
| IFTTT support available (EF011072) | No |
| Device width (EF008808) | 70.5 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 70.5 mm |
| Rated current (EF000227) | 16 A |
| Colour (EF000007) | Grey |
| Method of operation (EF000006) | Rocker |
| Number of rockers (EF003816) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 069523L EN_069527L.pdf | 688 Kbytes |
 |
