LEGRAND069511L LEGRAND PL-COMP I/O CONM 1P 10A GREY

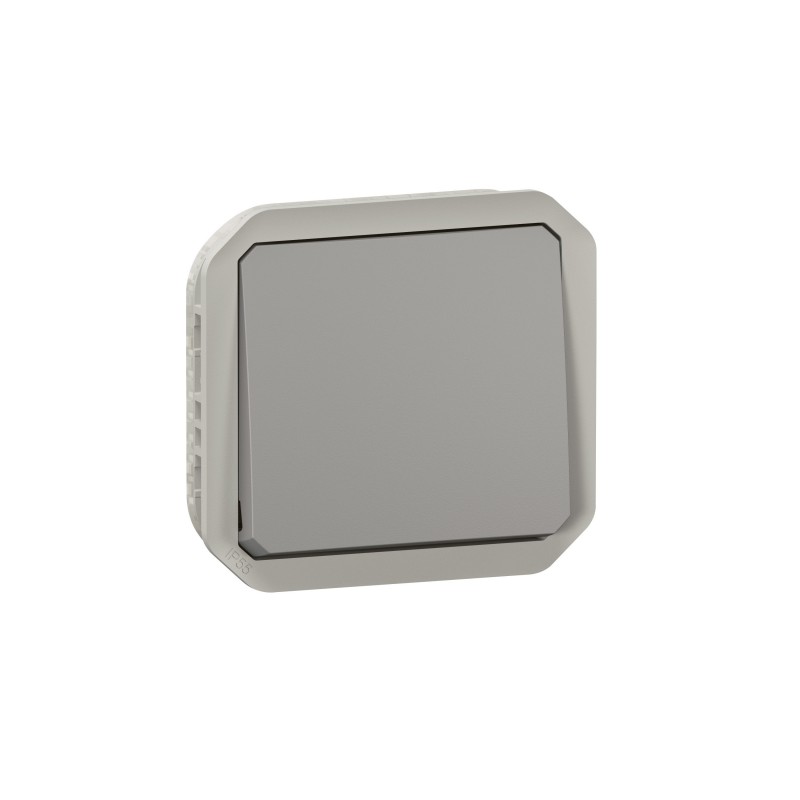

LEGRAND 069511L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069511L LEGRAND PL-COMP I/O CONM 1P 10A GREY

Code: 069511L

Manufacturer: LEGRAND

Description:

PL-COMP I/O CONM 1P 10A GREY
Plexo modular switch gray - 10AX
Plexo modular switch IP55 -IK08-10AX-Gray

Categories:

  • Domestic switching devices > Installation switch
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 165,31 €

Unit Price: 16,531 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

The 10A Plexo switch allows lighting to be controlled from two different control points, where water and dust protection (IP55) is required. Composable product for surface or recessed installation.

Product features
  • Composable Plexo Switch - Gray - To be installed with a frame for flush installation or in a surface box.
  • IP55 - IK08 - 10AX - 250V
  • Automatic terminal
  • Mechanism supplied with trim - For flush or surface installation
  • Grey
description
10AX Plexo gray composable switch/switch. Switches 10 AX - 250V - IP 55 - IK 08 - switches, pushbuttons and automatic switches - The mechanisms are supplied with a finish front - Installation with surface boxes or with recessed support plates - Automatic terminals.

Highlights

Advantages in installation
  • Product with protection against liquid bodies, it can be installed in residential and professional technical areas (garages, basements, car parks, workshops, industrial kitchens...) and in outdoor environments (terraces, gardens, campsites...).
Advantages in use
  • It can be used as a simple switch, but it can also be associated with another switch to allow the light to be turned on or off from two different points.
Specific features
  • For recessed or surface-mounted installation

specifications

Cabling SystemBidirectional switch
Type of operationRocker/button
Type of mountingBasic Element with Center Cover Plate, Others
Push Button SwitchNo
Number of rocker arms1
Attachment TypeThread fastening
With mounting plateNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishMate
ColourGrey
RAL number (similar)7046
Switching element colorGrey
Label space/print surfaceNo
Suitable for protection grade (IP)IP55
Impact resistanceIK08
Nominal Voltage250 V
Nominal current10 A
Switching current for fluorescent lamps10 AX
Monitoring contactsNo
Connection MethodPlug clamp
Heating switchNo
Washing machine switchNo
Device width70.5 mm
Device height70.5 mm
Device Depth49 mm
Installation Depth28.5 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsYes
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²

ETIM for 069511L Domestic wiring accessories and controls (EC001590)

Feature nameLabel space/information surface (EF009419)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameConnection type (EF000124)
Feature valueScrewless terminal
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameType of fastening (EF002442)
Feature valueScrew mounting
Feature nameWiring system (EF002960)
Feature valueTwo-way switch
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature namePush button switch (EF003895)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameColour of switch operator (EF015518)
Feature valueGrey
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameHeating switch (EF016279)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameSwitching current for fluorescent lamps (EF003888)
Feature value10 AX
Feature nameBuilt-in depth (EF000218)
Feature value28.5 mm
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value7046
Feature nameWashing machine switch (EF006316)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameDevice depth (EF008810)
Feature value49 mm
Feature nameFeedback-signal contact (EF001181)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK08
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameDevice width (EF008808)
Feature value70.5 mm
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit with central cover plate
Feature nameDevice height (EF008809)
Feature value70.5 mm
Feature nameRated current (EF000227)
Feature value10 A
Feature nameColour (EF000007)
Feature valueGrey
Feature nameMethod of operation (EF000006)
Feature valueRocker
Feature nameNumber of rockers (EF003816)
Feature value1
